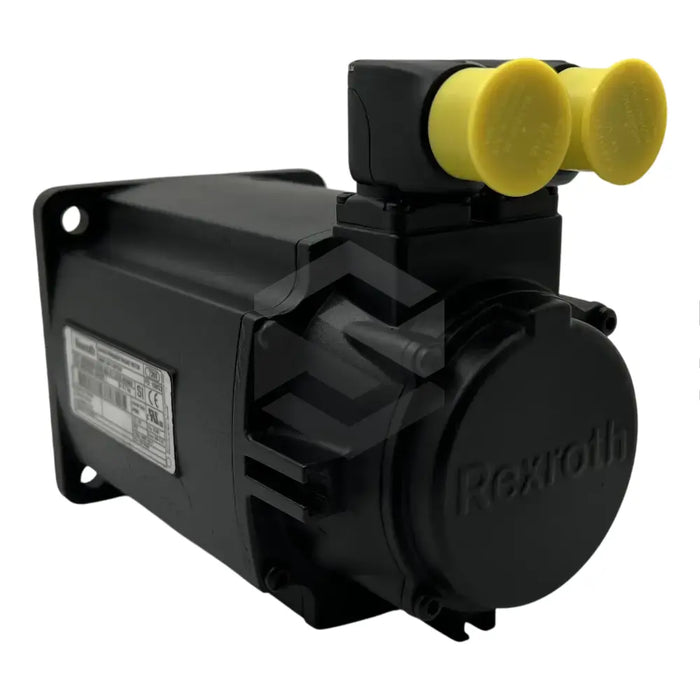

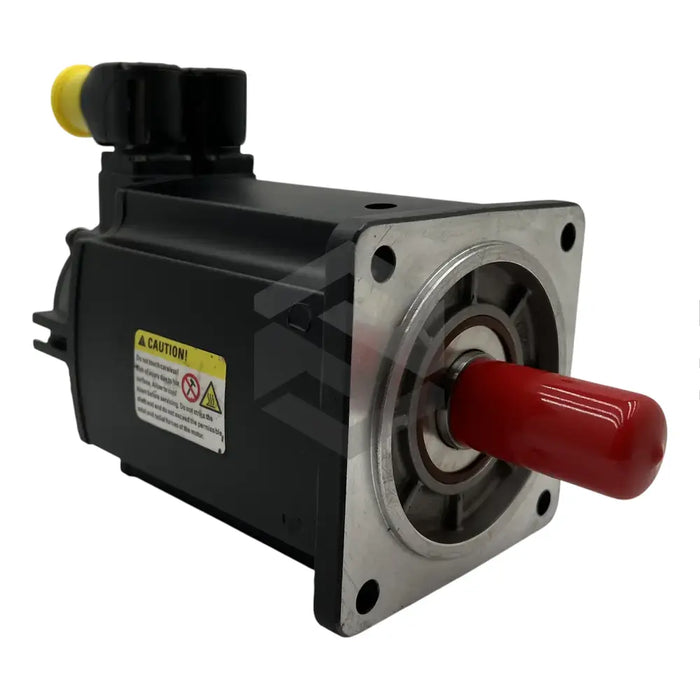

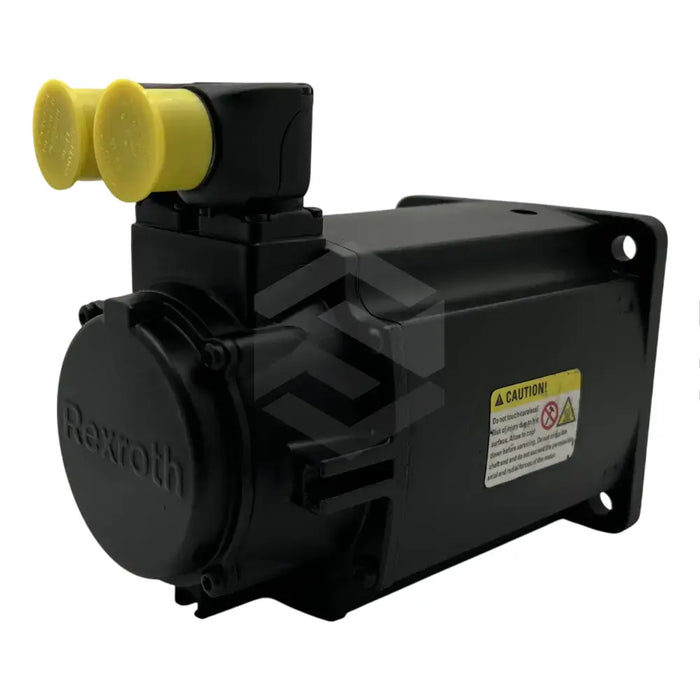

series image of MSK060B-0600-NN-S2-UG0-RNNN

MSK060B-0600-NN-S2-UG0-RNNN

by Bosch Rexroth Indramat
Request a quote
The MSK060B-0600-NN-S2-UG0-RNNN is a high-grade synchronous servomotor from Bosch Rexroth Indramat featuring a rotatable connector of 240 degrees and an increased run-out and concentricity as defined by DIN 42955. Equipped with a single-turn absolute EnDat 2.1 encoder, it offers a single revolution with 2,048 signal periods. The motor confines the sound pressure level to less than 75dBA, and it is housed in a B5 size frame, compliant with EN 60034-7 specifications. Its output shaft, compliant with DIN 332, Part 2, is cylindrical with a centering hole. The servomotor must be handled with care due to potential explosion hazards and requires connection with manufacturer-provided cables. Optimal performance is assured when installed between altitudes of 0m-1,000m as per DIN EN 60034-1. It features an IP 65 protection degree for the housing and output shaft, a DIN 3760-version A compliant radial shaft sealing ring, and a maximum temperature change rate of 0.5°C/min.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MSK060B-0600-NN-S2-UG0-RNNN
  • Connector Features: 240° Rotatable
  • Increased Run-out and Concentricity: As per DIN 42955
  • Encoder Type: Single Turn Absolute EnDat 2.1
  • Encoder Signal Periods: 2,048
  • Sound Pressure Level: Less than 75dBA
  • Frame Size: B5 (EN 60034-7 specification)
  • Output Shaft: Cylindrical End with Centering Hole (DIN 332, Part 2)
  • Thermal Coupling: Changes with Transmissions
  • Explosion Hazard: If Handled Improperly
  • Motor Connection: With Manufacturer Provided Cables
  • Installation Altitude: 0m to 1,000m above sea level (DIN EN 60034-1)
  • Temperature Change Rate: 0.5°C/min
  • Protection Level: IP 65 for Output Shaft and Housing
  • Surface Characteristic Change: Can Cause Explosion
  • Shaft Sealing Ring: Radial (DIN 3760 – version A)
  • Shaft Seal and Output Shaft: No Direct Contact with Machining Medium.
