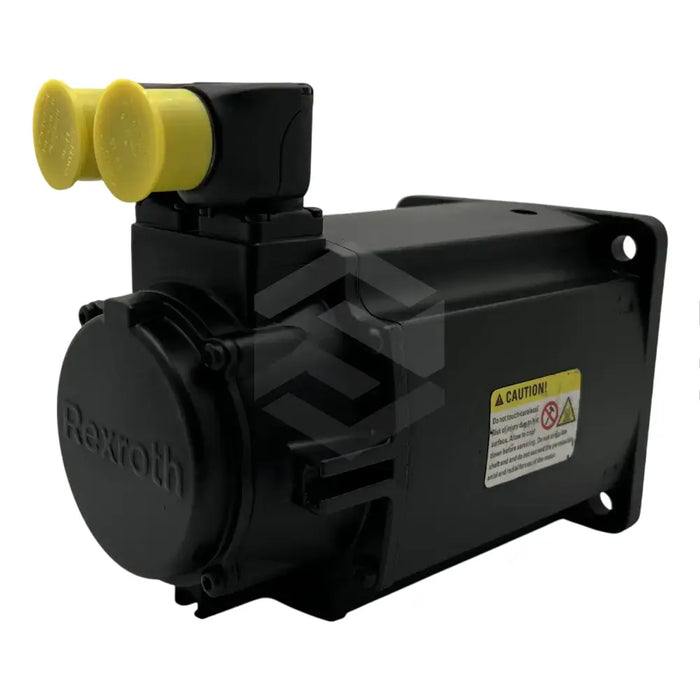

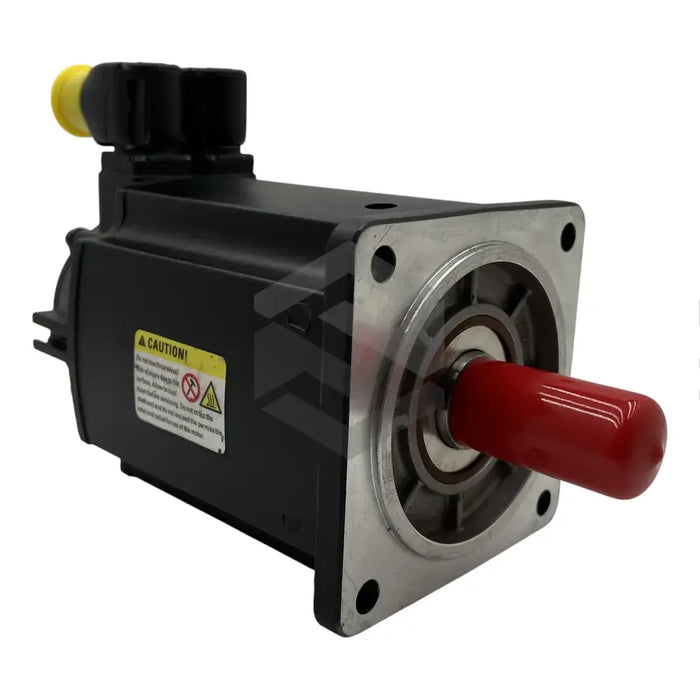

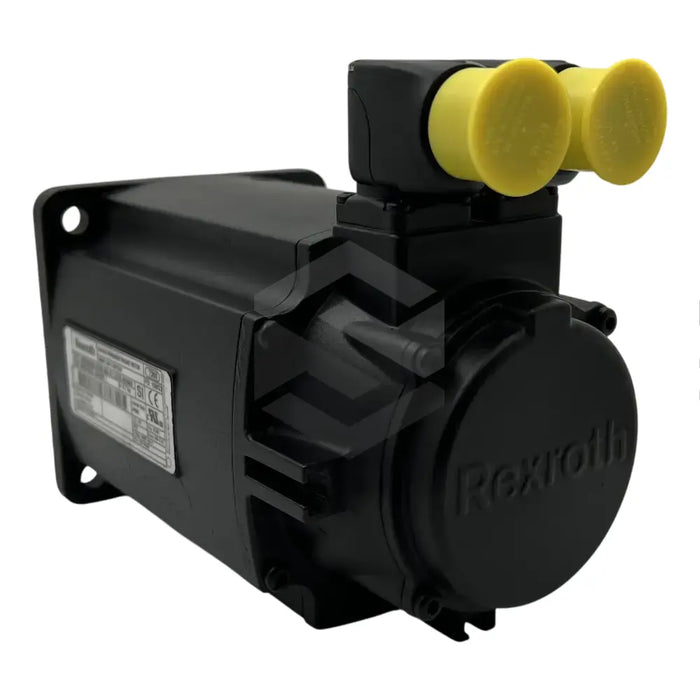

series image of MSK060B-0600-NN-S2-UG1-RNNN

MSK060B-0600-NN-S2-UG1-RNNN

by Bosch Rexroth Indramat
Request a quote
The MSK060B-0600-NN-S2-UG1-RNNN is a premium quality synchronous motor crafted by global industrial technology leader, Bosch Rexroth Indramat. Known for their innovative, scalable, and rugged motion control systems, the company designs the motor to be naturally or surface cooled, adapting to the needs of modern machinery operators and designers. This high performing unit offers a continuous torque of 10.4 Nm when stationary under surface cooling and 8 Nm at 60K. The peak current and maximum torque values stand at 38A and 24Nm respectively. The MSK060B-0600-NN-S2-UG1-RNNN synchronous motor operates optimally at a temperature range of 0-40°C with a thermal time constant of 14 minutes and a leakage capacitance of 2.2nF. The component’s specifications also include a maximum estimated speed of 6000 min -1, a winding inductivity of 8.6mH, and a rotor moment of inertia without brakes of 0.0008KgXm^2.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Motor Type: MSK060B-0600-NN-S2-UG1-RNNN
  • Cooling Methods: Natural, Surface Cooling
  • Continuous Torque (Surface Cooling, Standstill): 10.4 Nm
  • Continuous Current (Surface Cooling, Standstill): Absent
  • Continuous Torque (60K Standstill): 8Nm
  • Continuous Current (60K Standstill): 9.5A
  • Continuous Torque (100K Overtemperature, Standstill): 8.8 Nm
  • Continuous Current (100K Overtemperature, Standstill): 10.5 Amps
  • Peak Current: 38A
  • Maximum Torque: 24 Nm
  • Constant Voltage (200C): 57V/min-1
  • Torque Constant (200C): 0.93Nm/A
  • Winding Resistance (200C): 0.8 Ohms
  • Maximum Speed: 6000 min-1
  • Number of Poles: 4
  • Winding Inductivity: 8.6mH
  • Operating Temperature: 0 to 400C
  • Thermal Time Constant: 14 minutes
  • Leakage Capacitance: 2.2nF
  • Rotor Moment of Inertia (Without Brakes): 0.0008KgXm2
