series image of MSK060C-0300-NN-M2-UP0-RNNN

MSK060C-0300-NN-M2-UP0-RNNN

by Bosch Rexroth Indramat
$3,550.72 - $3,550.72
$3,550.72
$3,550.72 - $3,550.72
$3,550.72
Available, Shipping Varies

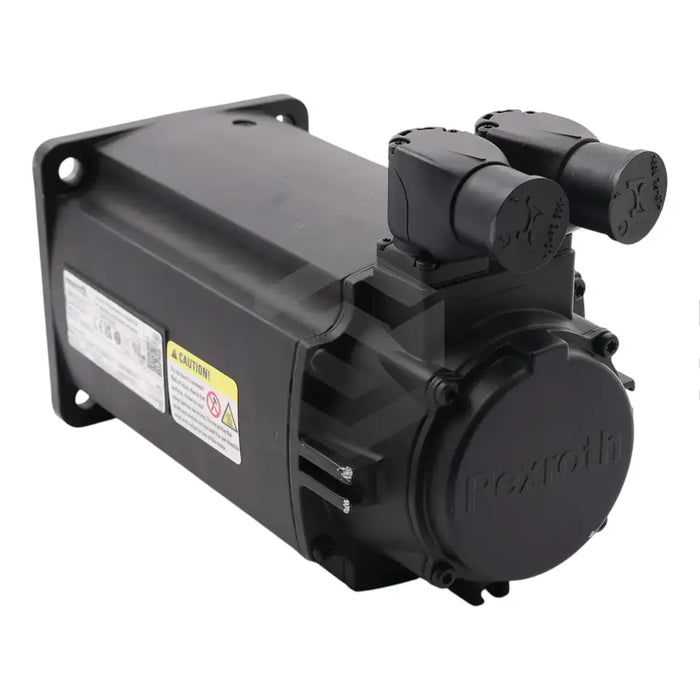

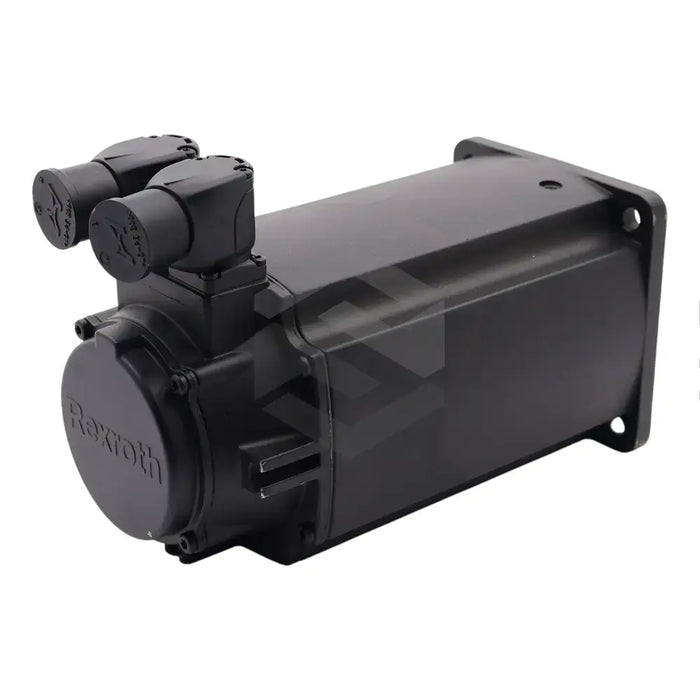

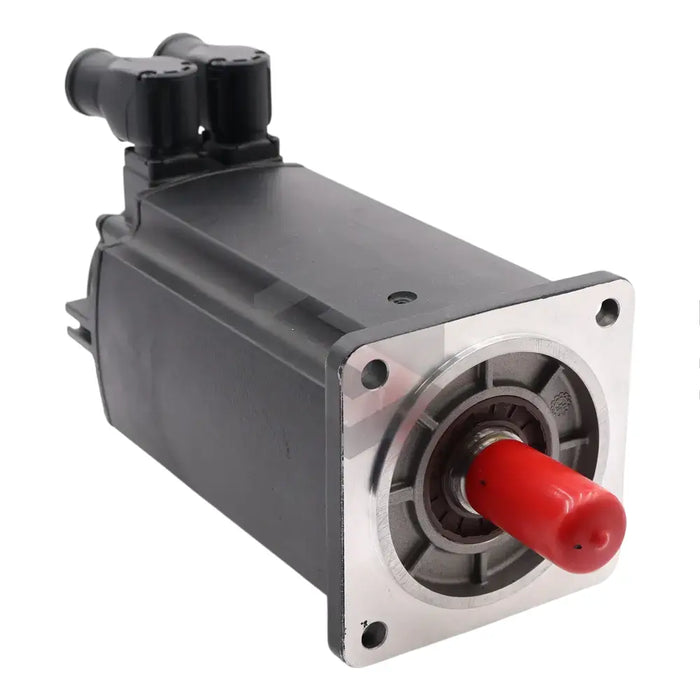

The Bosch Rexroth Indramat MSK060C-0300-NN-M2-UP0-RNNN is a synchronous servo motor from the MSK series. Defined by its 60 frame size, C frame length, and 0300 winding, this motor is naturally cooled and equipped with an optical multiturn encoder via an EnDat 2.1 interface. It also offers the option for rotatable power connectors, a shaft with a keyway, and a sealing ring. While a holding brake isn't automatically included, it is optional. The motor, flaunting improved concentricity and runout, is capable of a 2400 signal-period rated encoder, along with 240-degree rotatable connectors. It exhibits a continuous torque of 8 Nm at standstill and a continuous current of 4.8 Amps. It can achieve a maximum torque of 24 Nm and a maximum current of 19.2 Amps. With four pole pairs, a 15-minute thermal constant, and a maximum speed of 4900 RPM, this motor is designed for a 0-40 degree Celsius environment. Its IP65-rated housing is both dust proof and water resistant, qualifying it for use in dusty environments and offering good protection against liquids. Suitable for professional installation and maintenance, this motor is applicable to various machinery, such as robotic, metal-forming, and printing machines. The shipping weight is 8.4 kilograms.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MSK Series Synchronous Servo Motor
  • Model Number: MSK060C-0300-NN-M2-UP0-RNNN
  • Frame Size: 60
  • Frame Length: C
  • Winding Code: 0300
  • Cooling Method: Natural Convection
  • Encoder: Optical Multiturn with EnDat 2.1 Interface
  • Encoder Signal Periods: 2400
  • Power Connectors: 240-Degree Rotatable
  • Shaft: With Keyway and Sealing Ring
  • Holding Brake: Not Available
  • Concentricity and Run -Out: Increased
  • Continuous Torque at Standstill: 8 Nm
  • Continuous Current at Standstill: 4.8 Amps
  • Maximum Torque: 24 Nm
  • Maximum Current: 19.2 Amps
  • Pole Pairs: 4
  • Thermal Time Constant: 15 Minutes
  • Maximum Speed: 4900 RPM
  • Ambient Operating Temperature: 0 to 40 Degrees Celsius
  • Protection Level: IP65 Dust Proof and Protected against Liquids
  • Typical Applications: Robotics, Metal Forming Machines, Printing Machines
  • Shipping Weight: 8.4 kilograms
