series image of MSK060C-0600-NN-M2-UP1-RNNN

MSK060C-0600-NN-M2-UP1-RNNN

by Bosch Rexroth Indramat
$2,591.64 - $2,591.64
$2,591.64
$2,591.64 - $2,591.64
$2,591.64
Available, Shipping Varies

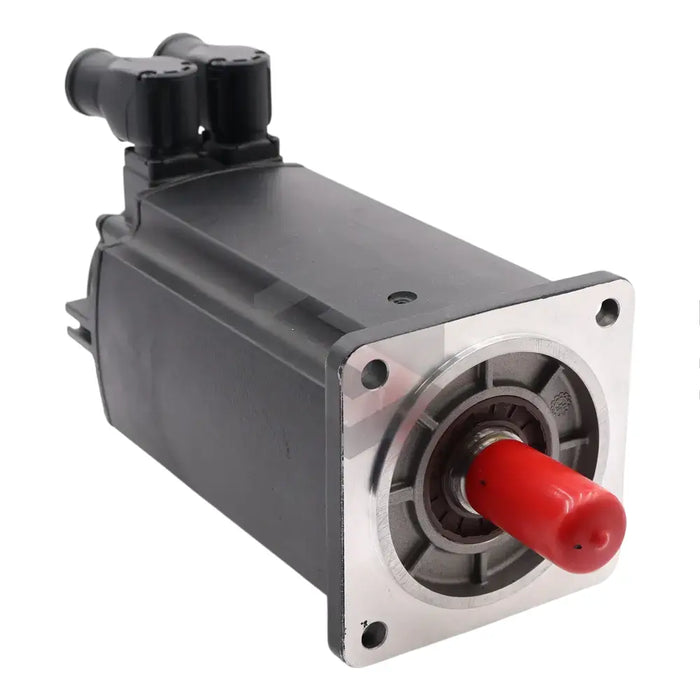

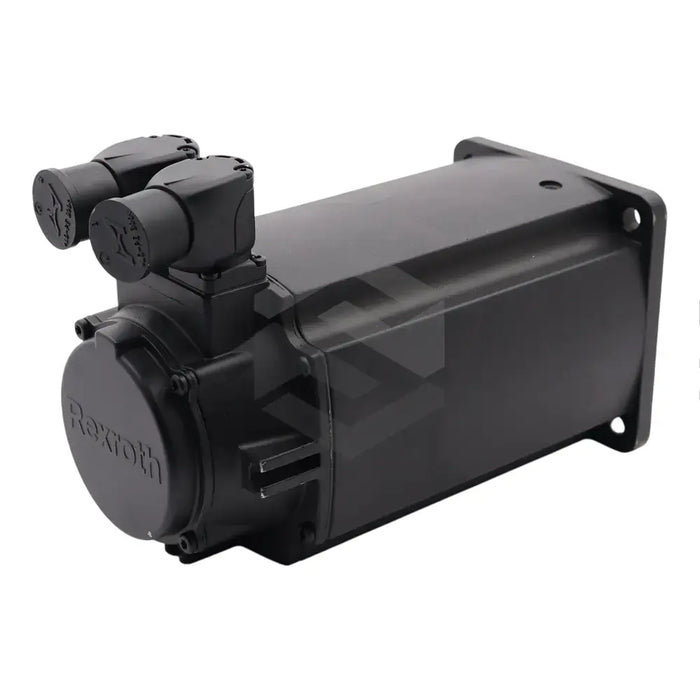

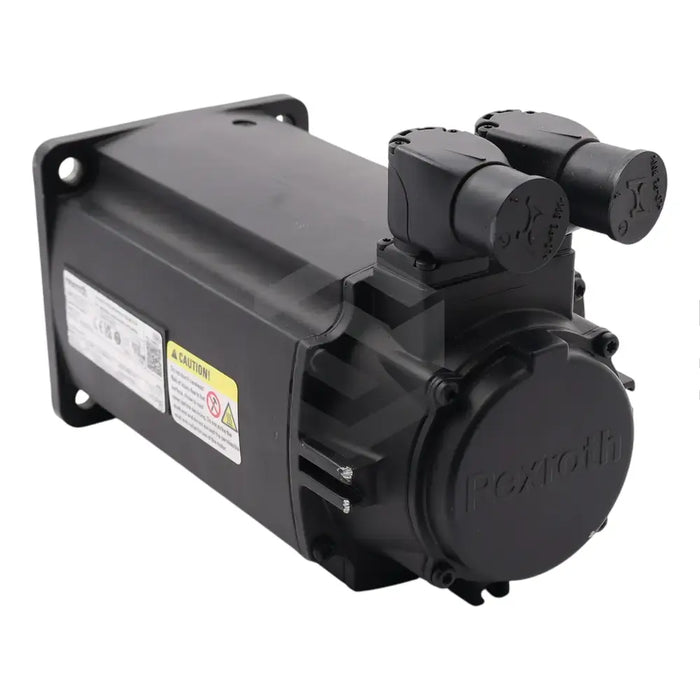

The Bosch Rexroth Indramat's MSK060C-0600-NN-M2-UP1-RNNN is a servo motor from the IndraDyn S motors MSK series renowned for their high torque density and precision. Suitable for robotics, machine tools, and various machine applications, this model is designed for high dynamic operations. It operates at a maximum current and torque of 38.0 Nm and 24.0 Nm respectively. With a torque constant of 0.93Nm/A and a voltage constant of 57.0V/min-1 at 20o C, it enables speed and position control through an integrated multiturn absolute encoder with a 2048 increment EnDat 2.1 interface. It features a plain shaft with a keyway and a shaft sealing ring facilitating a noiseless, zero-backlash shaft-hub connection. It has a 10.0 Nm holding brake and boasts an IP65 Ingress Protection rating, making it touch-proof, shock-resistant, and resistant to water jets.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Model: MSK060C-0600-NN-M2-UP1-RNNN
  • Series: MSK
  • Max Current: 38.0 Nm
  • Max Torque: 24.0 Nm
  • Torque Constant (20° C): 0.93 Nm/A
  • Voltage Constant: 57.0 V/min-1
  • Encoder Type: Integrated multiturn absolute encoder with EnDat 2.1
  • Encoder Increment: 2048
  • Encoder Accuracy: ±20 angular seconds
  • Output Shaft Type: Plain shaft with shaft sealing ring and a keyway according to DIN 6885-1
  • Holding Brake Torque: 10.0 Nm
  • Holding Brake Connection Time: 25 ms
  • Holding Brake Disconnection Time: 40 ms
  • Ingress Protection: IP 65
