C image of MSK061C-0200-NN-M1-UG0-NSNN | Front Right

MSK061C-0200-NN-M1-UG0-NSNN

by Bosch Rexroth Indramat
$14,740.00 - $14,740.00
$14,740.00
$14,740.00 - $14,740.00
$14,740.00

In Stock, Ships 1 - 3 Days

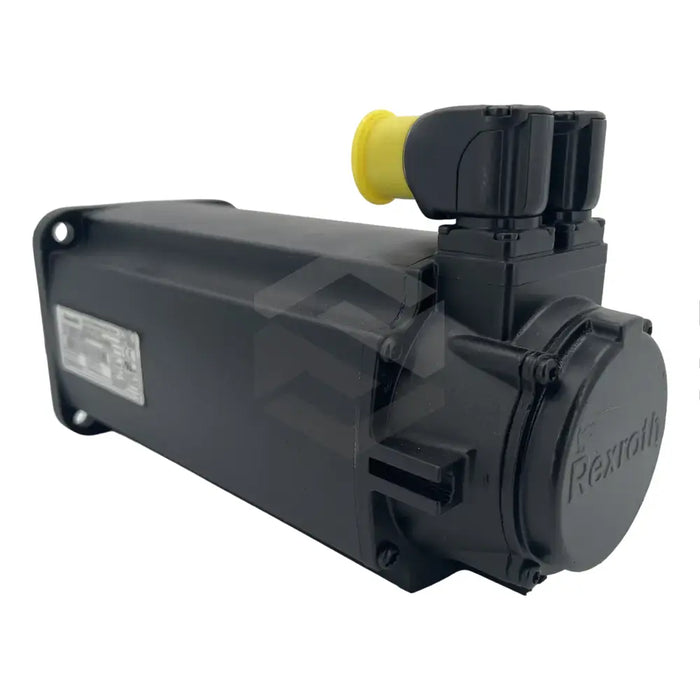

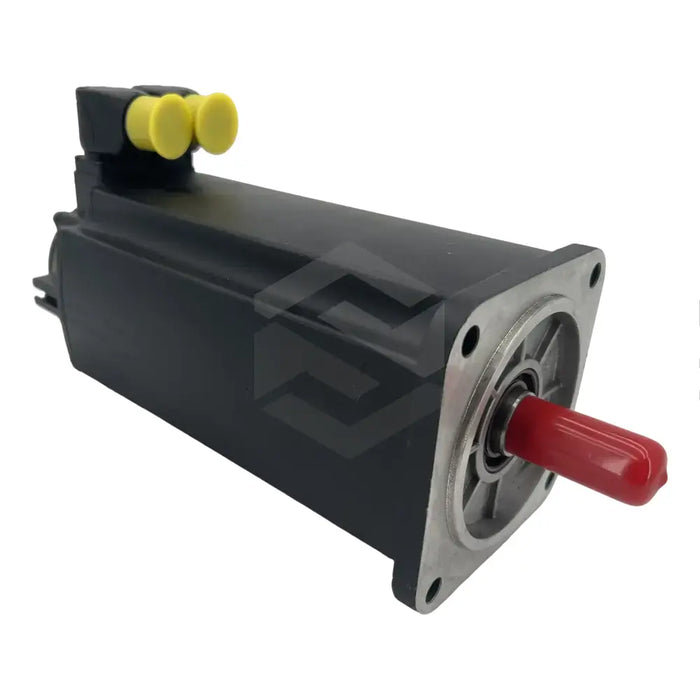

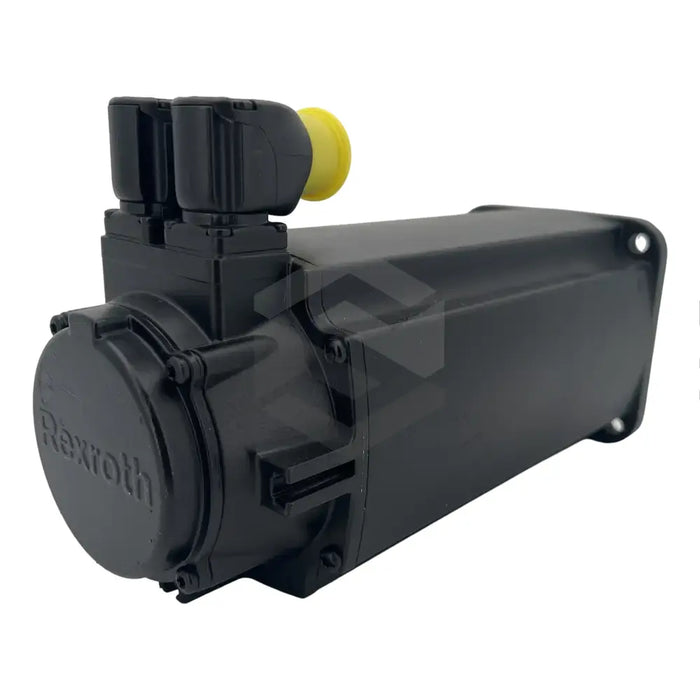

The Bosch Rexroth Indramat MSK061C-0200-NN-M1-UG0-NSNN is a convection-cooling motor in extended design housing, also available in standard and increased concentricity models. The motor's plain main shaft includes a sealing ring, but a holding brake must be ordered separately. The power and feedback connecters are 240-degree rotatable. Its key features include an optical multiturn absolute encoder with Hiperface and 128 signal periods, working at a supply voltage between 7-12 Volts and drawing a maximum current of 60 milliamps. With a torque capacity of 32 Nm and maximum current of 14.4 Amps, this motor is capable of delivery a peak motor speed of 3100 RPM. It operates at an optimal temperature range of 0-40 degrees Celsius, has a protection class of IP65 and it's totally dustproof. The motor housing is painted matte black for a sleek finish.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MSK061C-0200-NN-M1-UG0-NSNN

Motor Design

Standard and extended

Main Shaft

Plain with sealing ring

Brake

Ordered separately

Connectors

240-degree rotatable, power and feedback

Cooling Method

Convection

Encoder Type

Optical multiturn absolute with Hiperface, 128 signal periods

Encoder Voltage

7 to 12 Volts

Max Encoder Current

60 milliamps

Encoder Accuracy

±120 angular seconds

Max Torque

32 Nm

Max Current

14.4 Amps

Torque Constant at 20C

2.8 Nm/A

Motor Voltage Constant at 20C

174.9 Volts/1000 RPM

Motor Winding Resistance at 20C

8.1 Ohms

Motor Winding Inductance

36.5 millihenry

Leakage Capacitance

2.7 nanofarads

Thermal Time Constant

18 minutes

Peak Rated Speed

3100 RPM

Operation Temperature

0 to 40 degrees Celsius

Protection Class

IP65

Dust Proof

Yes

Housing Color

Matte Black.
