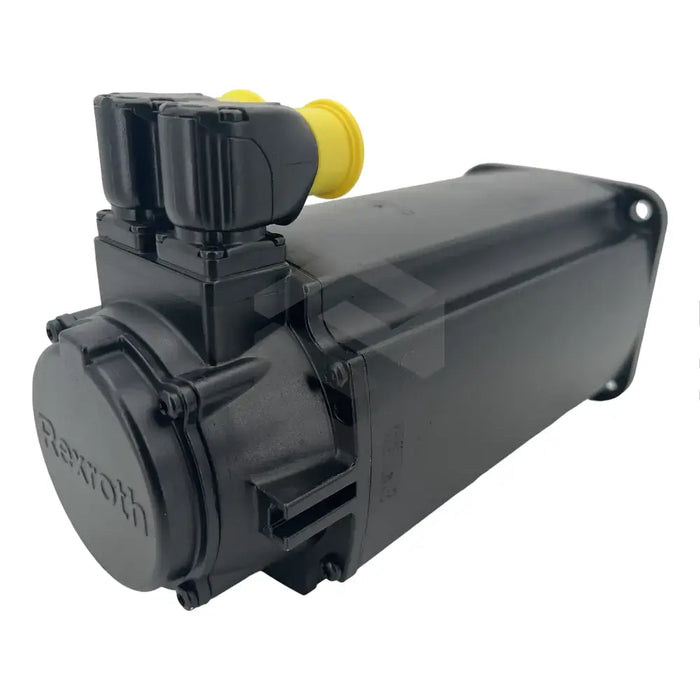

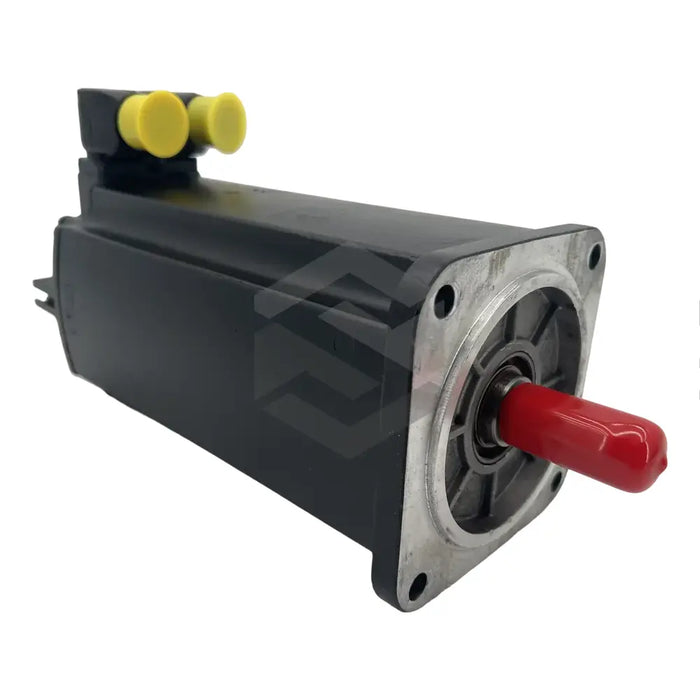

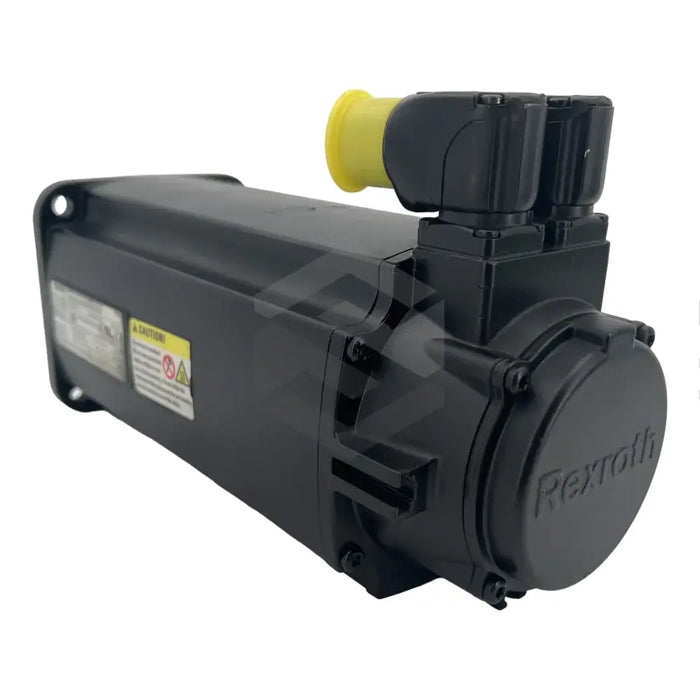

series image of MSK061C-0200-NN-M1-UP0-NSNN

MSK061C-0200-NN-M1-UP0-NSNN

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat MSK061C-0200-NN-M1-UP0-NSNN is a synchronous servo motor with a rotating speed linked proportionately to the frequency of the incoming electrical current. It operates optimally under environmental class 3K4 within a temperature range of 0-40ºC and at installation altitudes of 0-1000 meters. The motor features a 95 mm centering diameter, a 19 mm diameter shaft with keyway and sealing ring aligned with DIN 6885-1, and a 116 mm flange mounting system. The motor length is 264 mm. It comes equipped with an optical multiturn encoder delivering 128 signal periods. The housing conforms to EN 60079's device group II, categories 3G and 3D, yielding an IP65 protection level due to a closed body, sealed shaft, and airtight cable connectors. This model is cooled via natural convection and does not include a holding brake, which can be purchased separately if needed. The cable connectors can be rotated 240 degrees.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: MSK061C-0200-NN-M1-UP0-NSNN Synchronous Servo Motor
  • Speed Type: Synchronized
  • Performance Data Validity: DIN EN 60034-1
  • Ambient Temperature Range: 0-40 degrees Celsius
  • Installation Altitude Range: 0-1000 meters
  • Recommended Environmental Class: 3K4
  • Low Relative Air Humidity: 5%
  • High Relative Air Humidity: 95%
  • Low Absolute Air Humidity: 1 g/m3
  • High Absolute Air Humidity: 29 g/m3
  • Max. Rate of Temperature Change: 0.5 ºC/minute
  • Centering Diameter: 95 millimeters
  • Shaft Type: With keyway and sealing ring
  • Shaft Diameter: 19 millimeters
  • Motor Length: 264 millimeters
  • Motor Mounting: Flange with four holes
  • Flange Size: 116 millimeters
  • Encoder Type: Optical multiturn with 128 signal periods
  • Motor Housing Design: Standard and extended
  • Device Group: II categories 3G and 3D
  • Protection Category: IP65
  • Connectors Rotating Ability: 240 degrees either direction
  • Cooling Type: Natural convection
  • Holding Brake Availability: Not available, can be ordered separately
