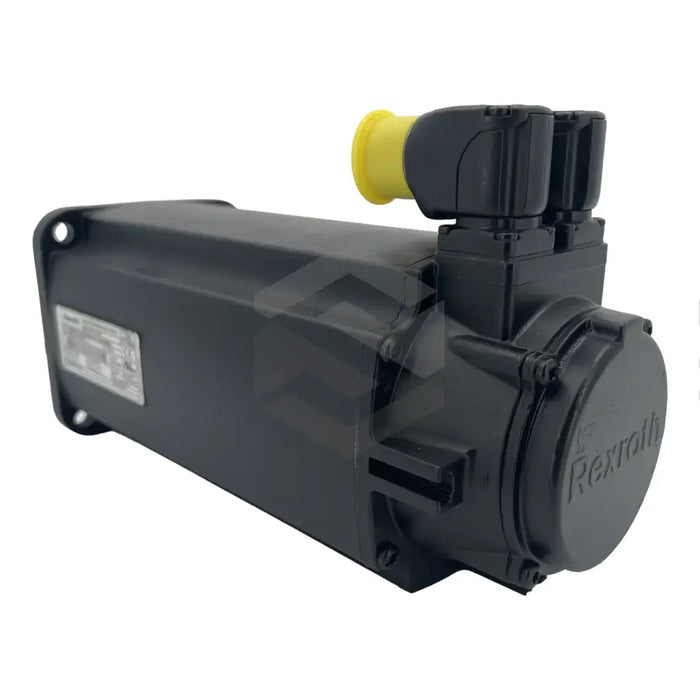

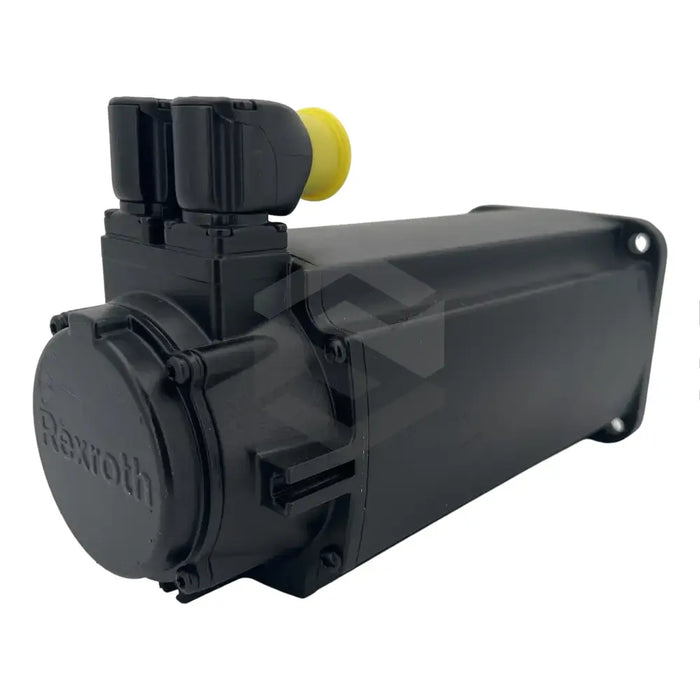

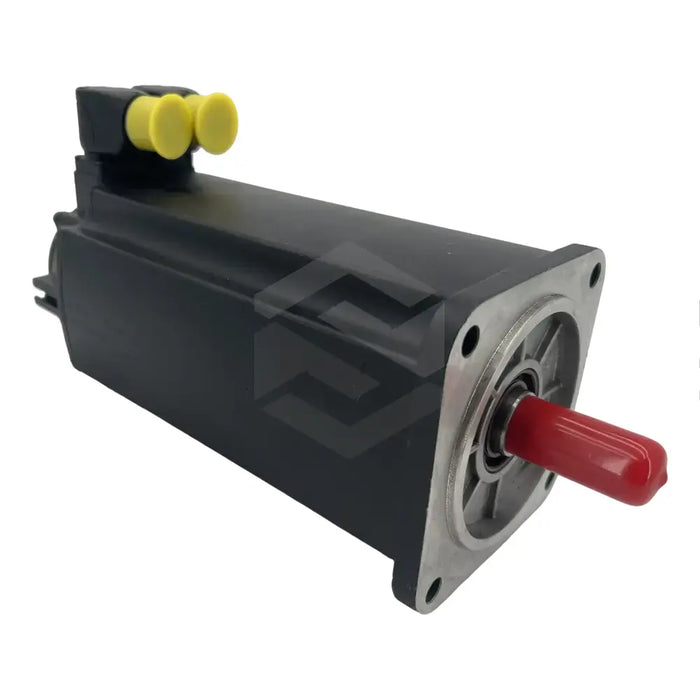

series image of MSK061C-0200-NN-S2-UG0-RNNN

MSK061C-0200-NN-S2-UG0-RNNN

by Bosch Rexroth Indramat
Request a quote
The MSK061C-0200-NN-S2-UG0-RNNN motor, by industry leader Bosch Rexroth Indramat, is designed for efficiency, durability and ease of use, with an extensive range of application capabilities. Its operational parameters include a continuous torque at standstill of 8Nm and a continuous current of 3.2A at 60K. At 100K, the continuous current is 3.6A, while the continuous torque at standstill stands at 9.0Nm. The maximum torque and current this unit can endure is 32Nm and 14.4A respectively. Notably, the rotor's moment of inertia is 0.00075gxm2, and its maximum velocity is 3100min-1. The estimated unit weight is 8.3 kgs with an operation temperature range of 0-400C. The motor is protected to IP65 standards and is suitable for installations up to 1000 meters above sea level.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: MSK061C-0200-NN-S2-UG0-RNNN Motor
  • Continuous Torque at 60K: 8 Nm
  • Continuous Current at 60K: 3.2Amps
  • Continuous Torque at 100K: 9.0Nm
  • Continuous Current at 100K: 3.6 Amps
  • Continuous Torque during Surface Cooling: 12 Nm
  • Continuous Current during Surface Cooling: 4.8 Amps
  • Maximum Torque: 32 Nm
  • Maximum Current: 14.4 Amps
  • Torque Constant: 2.8 Nm/A
  • Winding Resistance: 8.1 Ohms
  • Voltage Constant: 174.9 V/1000min-1
  • Discharge Capacity: 2.7 nF
  • Winding Inductivity: 36.5 Mh
  • Pole Pairs Required: 4
  • Rotor Inertia: 0.00075gxm2
  • Thermal Time Constant: 18.0 minutes
  • Maximum Velocity: 3100min-1
  • Sound Pressure Level: <75
  • Weight: 8.3 kgs
  • Ambient Air Temperature during Operation: 00C to 400C
  • Maximum Setup Height: 1000 meters
  • Protection Class: IP65
