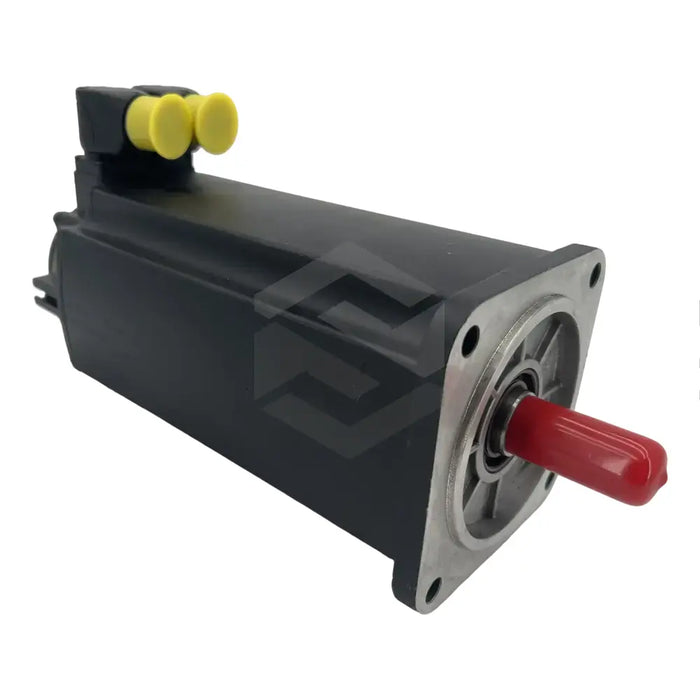

C image of MSK061C-0300-NN-M1-UG0-NSNN | Front Right

MSK061C-0300-NN-M1-UG0-NSNN

by Bosch Rexroth Indramat
$12,375.00 - $12,375.00
$12,375.00
$12,375.00 - $12,375.00
$12,375.00

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MSK061C-0300-NN-M1-UG0-NSNN is a motor from the MSK series designed for natural convection cooling. It has a motor frame size code of 061, a length code of C, and a winding code of 0300. The motor's torque and current specifications vary with operating conditions; it provides continuous torque of 8 Nm and current of 4.3 Amps at 60K overtemperature, and 9 Nm with 4.8 Amps at 100K. Surface cooling can increase torque to 12 Nm and current to 6.5 Amps. The motor's maximum deliverable torque is 32 Nm, with a maximum current of 19.4 Amps. It has a torque constant of 2.04 Nm/A at 20°C, a voltage constant of 125.7 Volts/1000 RPM, and a winding resistance of 4.5 Ohms, along with a winding inductance of 21.4 millihenry. The device has a thermal time constant of 18 minutes, a maximum speed of 4200 RPM, and a 128-signal-period multiturn encoder. The motor excludes a holding brake and its connectors are 240-degree rotatable. Installation and operation should only be executed by trained technicians.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

MSK

Product Type Code

MSK061C-0300-NN-M1-UG0-NSNN

Frame Size Code

061

Motor Frame Length Code

C

Motor Winding Code

0300

Cooling Method

Natural Convection

60K Overtemperature Continuous Torque

8 Nm

60K Overtemperature Continuous Current

4.3 Amps

100K Overtemperature Continuous Torque

9 Nm

100K Overtemperature Continuous Current

4.8 Amps

Surface Cooling Continuous Torque

12 Nm

Surface Cooling Continuous Current

6.5 Amps

Maximum Torque

32 Nm

Maximum Current

19.4 Amps

Motor Torque Constant at 20C

2.04 Nm/A

Motor Voltage Constant at 20C

125.7 Volts/1000 RPM

Winding Resistance at 20C

4.5 Ohms

Winding Inductance

21.4 millihenry

Leakage Capacitance

2.4 nanofarads

Thermal Time Constant

18 minutes

Maximum Motor Speed

4200 RPM

Encoder Type

Multiturn with 128 signal periods

Holding Brake

Not Included

Motor Connectors

240-degree Rotatable

Motor Shaft

Plain with sealing ring

Installation and Operation

Qualified and trained technical personnel only.
