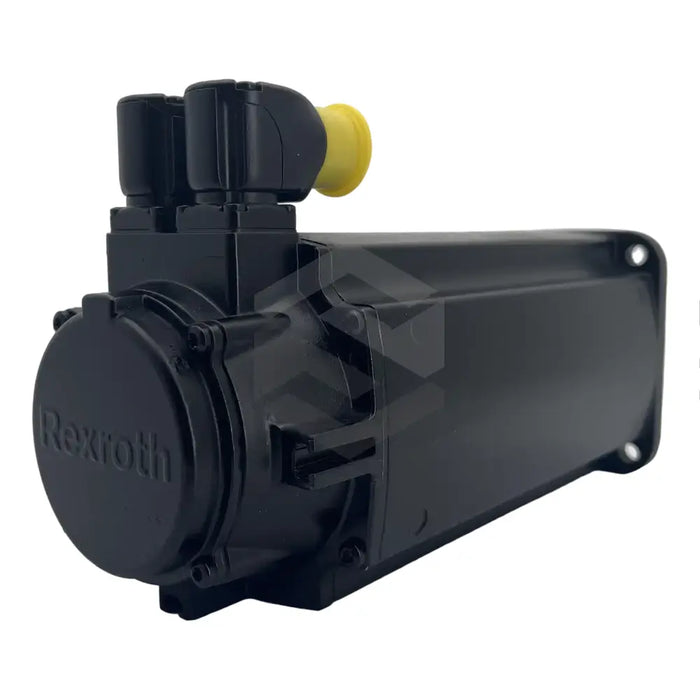

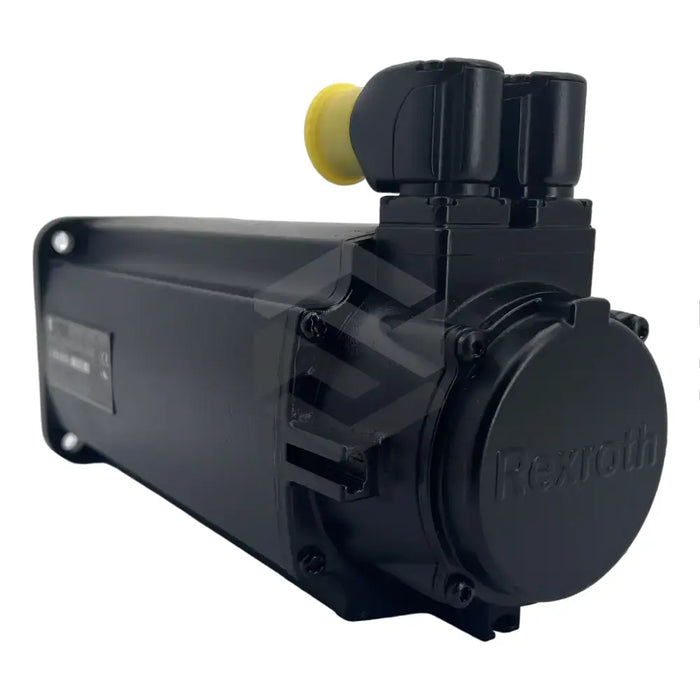

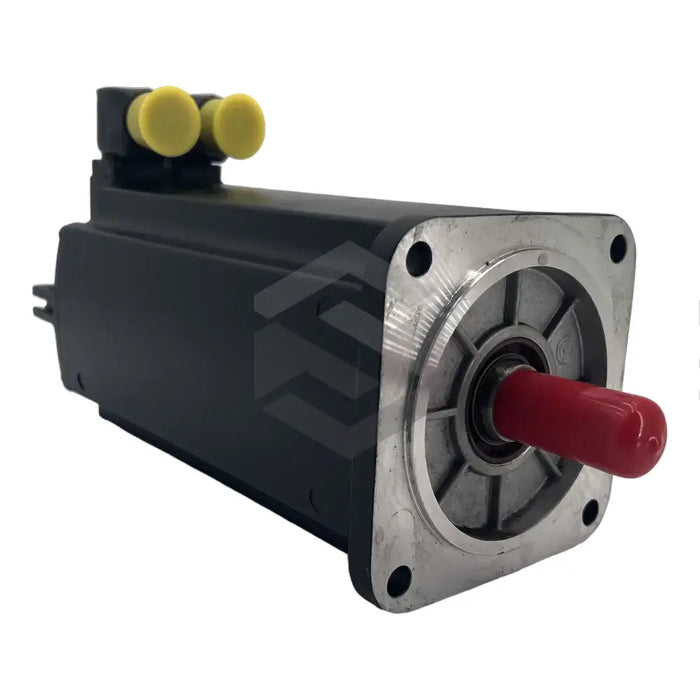

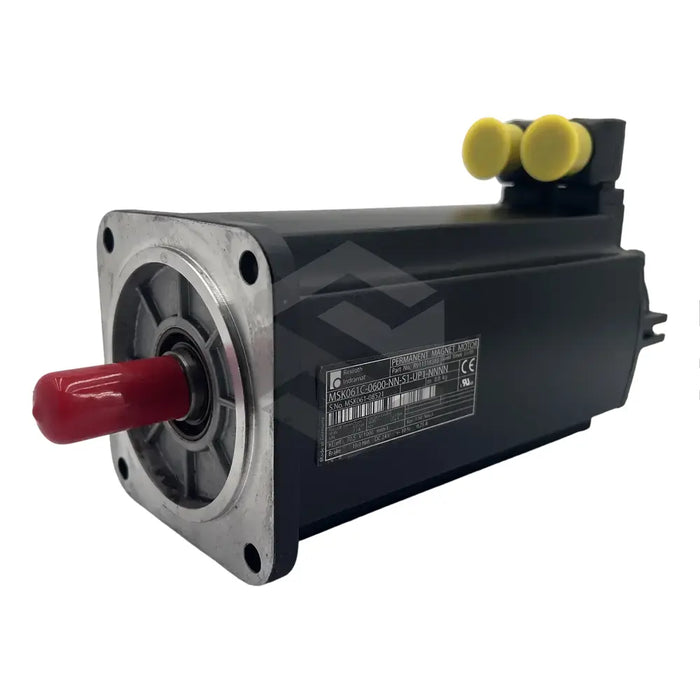

product Main (Front Left) image of MSK061C-0600-NN-S1-UP1-NNNN

MSK061C-0600-NN-S1-UP1-NNNN

by Bosch Rexroth Indramat
$10,534.67 - $10,534.67
$10,534.67
$10,534.67 - $10,534.67
$10,534.67
In Stock, Ships 3 - 5 Days
The MSK061C-0600-NN-S1-UP1-NNNN, a member of the IndraDyn S motor series by Bosch Rexroth Indramat, offers excellent torque performance due to its compact, sturdy design. It is defined by a conventional size of 061 and a winding code of 0600. This self-cooling motor achieves a maximum velocity of 6000min-1 and incorporates a cooling mode of natural convection, supplemented by required liquid-cooling for high power demands. With an integral KTY84 temperature sensor and a hold-release brake, the motor maintains optimum operational conditions. It also includes a shaft with keyway and a sealing ring, enabling it to resist both axial and radial forces. The 240-degree rotating electrical connection plug, motor housing, output shaft, and connector are all IP65 protection rated, while the fan grill conforms to IP24. The motor should be installed at an altitude between 0-1000 meters above sea level for optimal performance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Group: MSK
  • Size: 061
  • Winding Code: 0600
  • Maximum Velocity: 6000min-1
  • Cooling Mode: Natural Convection, Liquid Cooling
  • Integrated Temperature Sensor: Yes, KTY84
  • Space Requirement Between Motor and Cabinet Wall: 80mm
  • Self-Cooling Motor: Yes
  • Holding Brake: Yes, Releases when Switching Voltage is Applied
  • Shaft: Keyway with Sealing Ring
  • Electrical Connection: 240-Degree Rotating Plug
  • Protection Category: Motor Housing, Output Shaft, and Motor Connector IP65, Fan Grille IP24
  • Elevation Use: 0 to 1000 meters above sea level
