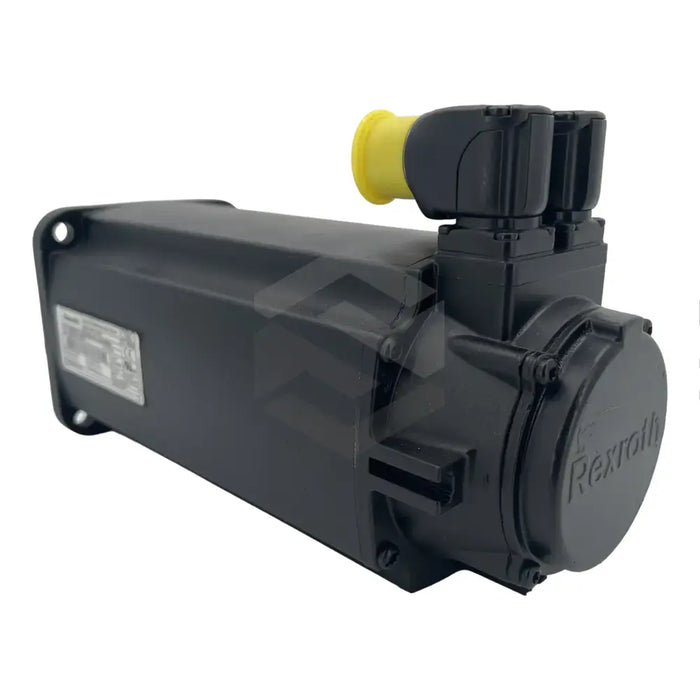

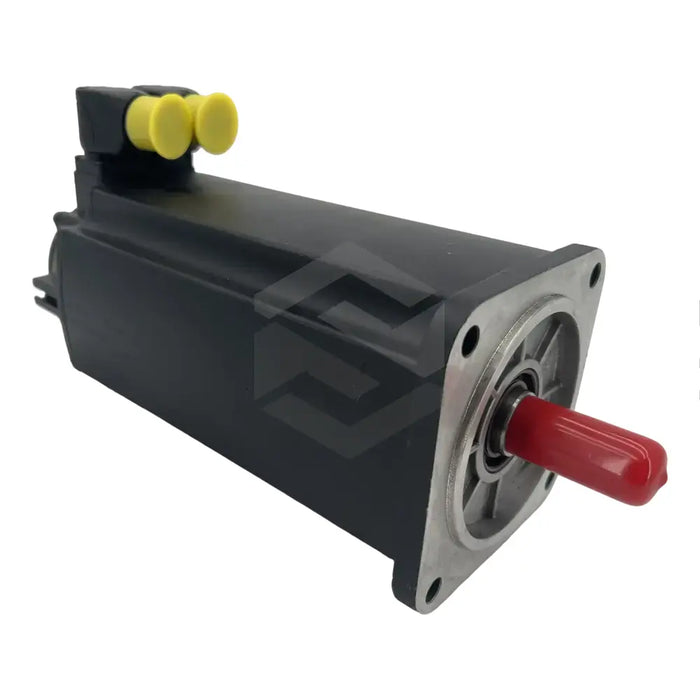

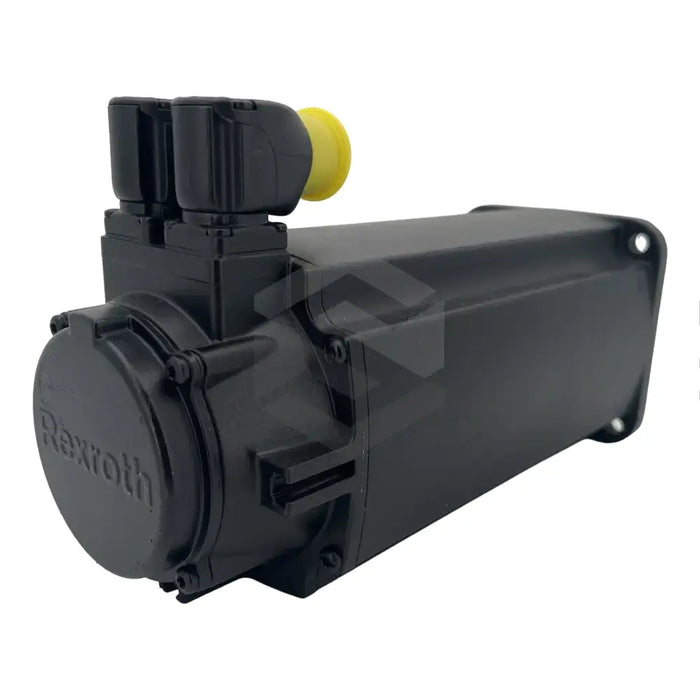

series image of MSK061C-0600-NN-S3-UG0-NNNN

MSK061C-0600-NN-S3-UG0-NNNN

by Bosch Rexroth Indramat
$2,979.00 - $2,979.00
$2,979.00
$2,979.00 - $2,979.00
$2,979.00
In Stock, Ships Today
The Bosch Rexroth Indramat MSK061C-0600-NN-S3-UG0-NNNN is a synchronous servo motor designed for industrial applications. Belonging to the MSK line, it is suitable for robotics, machine tools, and processing machines. The motor has a 061 frame size, C frame length, and a 0600 winding code. It offers 8 Nm and 7.7 Amps at 60K over temperature condition, and 9 Nm and 8.7 Amps at 100K. The maximum torque and current are 32 Nm and 34.7 Amps respectively, with a torque constant of 1.1 Nm/A at 20° Celsius. The motor, offering a voltage constant of 70.5 V/1000 RPM and four pole pairs, is operable at 6000 RPM. It possesses a thermal time constant of 15 minutes and an optimal ambient temperature range from 0 to 40° Celsius. The motor features include singleturn encoder, smooth shaft with sealing ring, and 240-degree rotatable connectors, but does not sport a holding brake. Cooling relies on natural convection, and handling by trained personnel is recommended.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: MSK061C-0600-NN-S3-UG0-NNNN
  • Product Type: Servo Motor
  • Application: Industrial
  • Frame Size: 061
  • Frame Length: C
  • Motor Winding Code: 0600
  • Continuous Torque 60K: 8 Nm
  • Continuous Current 60K: 7.7 Amps
  • Continuous Torque 100K: 9 Nm
  • Continuous Current 100K: 8.7 Amps
  • Max Motor Torque: 32 Nm
  • Max Motor Current: 34.7 Amps
  • Torque Constant: 1.1 Nm/A
  • Voltage Constant: 70.5 V/1000 RPM
  • Number of Pole Pairs: 4
  • Thermal Time Constant: 15 minutes
  • Max Speed: 6000 RPM
  • Ambient Temperature for Operation: 0 to 40 degrees Celsius
  • Integrated Features: Capacitive Singleturn Encoder, Smooth Shaft with Sealing Ring, 240-Degree Rotatable Connectors
  • Holding Brake Availability: Not Available
  • Cooling Method: Natural Convection.
