MSK061C-0600-NN-S3-UP1-NNNN

Original price $10,991.93 - Original price $10,991.93
Original price
$10,991.93
$10,991.93 - $10,991.93
Current price $10,991.93
Available, Shipping Varies
Request a quote

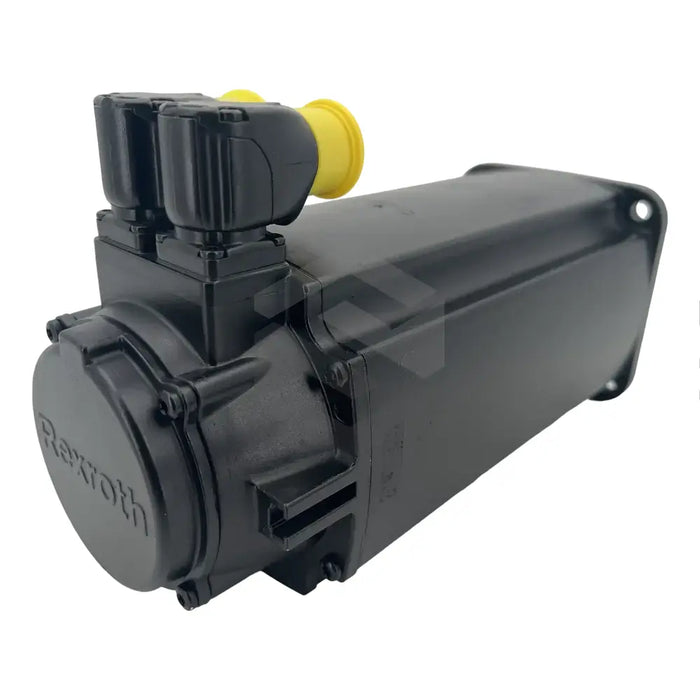

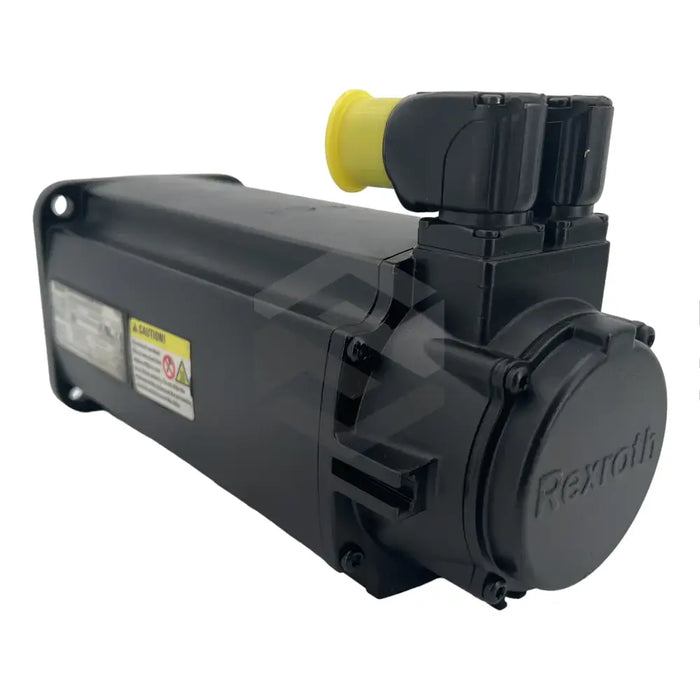

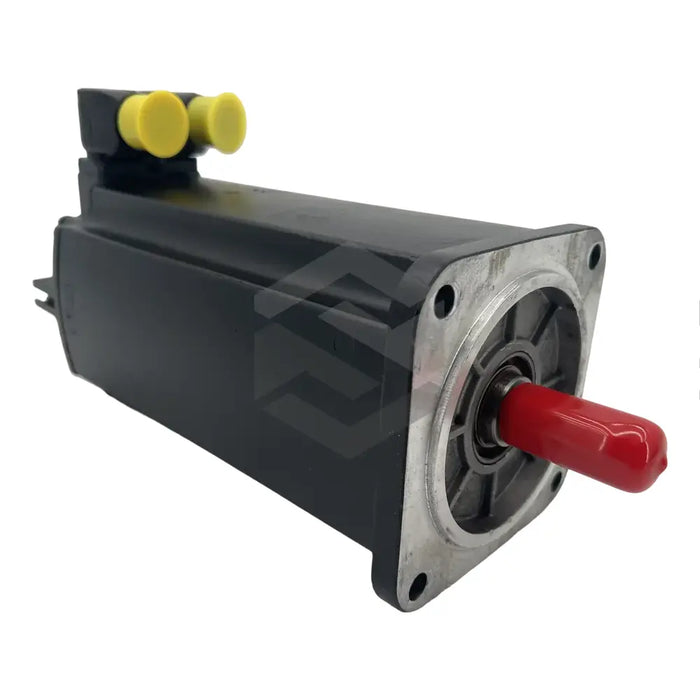

The Bosch Rexroth Indramat MSK061C-0600-NN-S3-UP1-NNNN is a synchronous servomotor known for application versatility in industries such as machine tools, metal forming, and food processing. It operates optimally in ambient conditions of 0-40 degrees Celsius and altitudes up to 1000 meters; exceeding these limits requires performance reduction and is not permitted above 55 degrees Celsius or 3000 meters. Key specifications include a standstill continuous torque and current of 8 Nm and 7.5 Amps respectively, a maximum torque of 32 Nm, and a peak motor current of 34.7 Nm. Notable features of this model include a torque constant of 1.14 Nm/A, voltage constant of 70.5 Volts/1000 RPM, and a maximum speed of 6000 RPM, while producing less than 75 dB noise. The motor, complete with a keyway and sealing ring shaft, weighs 8.8 kg and includes a 10 Nm holding brake and an integrated capacitive encoder.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MSK Series
  • Application: Rotary and Servo Drive Motors
  • Typical Use: Machine Tools, Metal-forming Machines, Robotics, Food Processing Machines
  • Ambient Conditions: 0 to 40 degrees Celsius Temperature, 0 to 1000 meters Altitude
  • Motor Performance Derating Temperature: 55 degrees Celsius
  • Motor Performance Derating Altitude: 3000 meters
  • Continuous Torque at Standstill: 8 Nm
  • Continuous Current at Standstill: 7.5 Amps
  • Maximum Motor Torque: 32 Nm
  • Maximum Motor Current: 34.7 Amps
  • Torque Constant at 20 degrees Celsius: 1.14 Nm/A
  • Voltage Constant at 20 degrees Celsius: 70.5 Volts/1000 RPM
  • Winding Resistance at 20 degrees Celsius: 1.55 Ohms
  • Winding Inductance: 6.7 millihenry
  • Maximum Speed: 6000 RPM
  • Noise Level: less than 75 dB
  • Holding Brake: 10 Nm
  • Total Weight with Brake: 8.8 Kilograms
  • Shaft Specifications: Includes Keyway and Sealing Ring
  • Encoder Type: Integrated Capacitive Encoder with 16 Signal Periods
