MSK070C-0150-NN-M1-UG0-NNNN

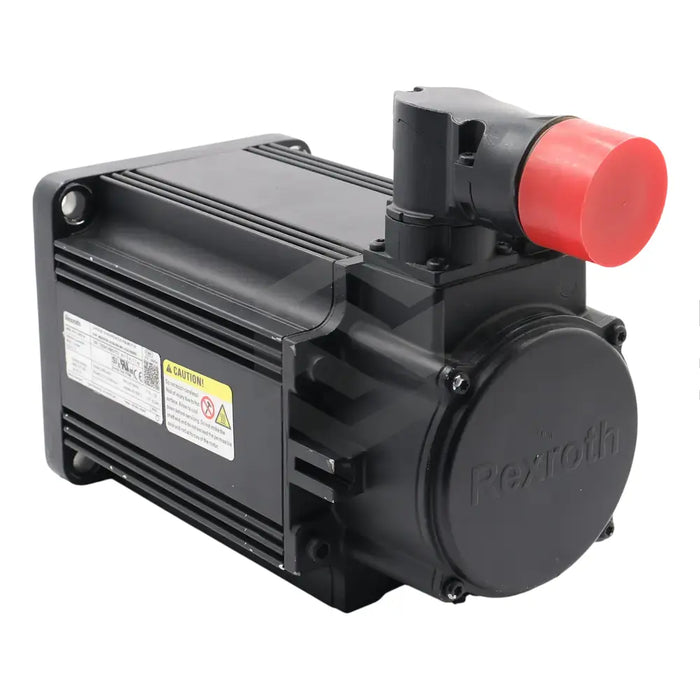

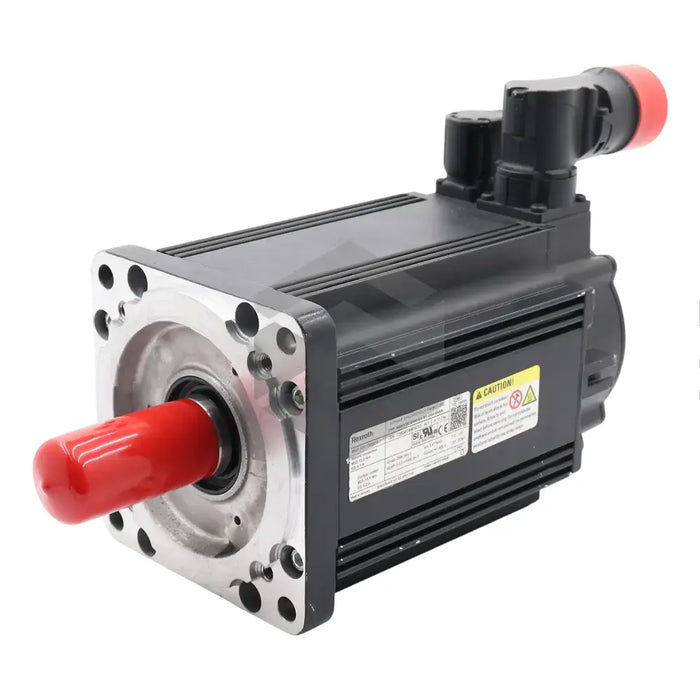

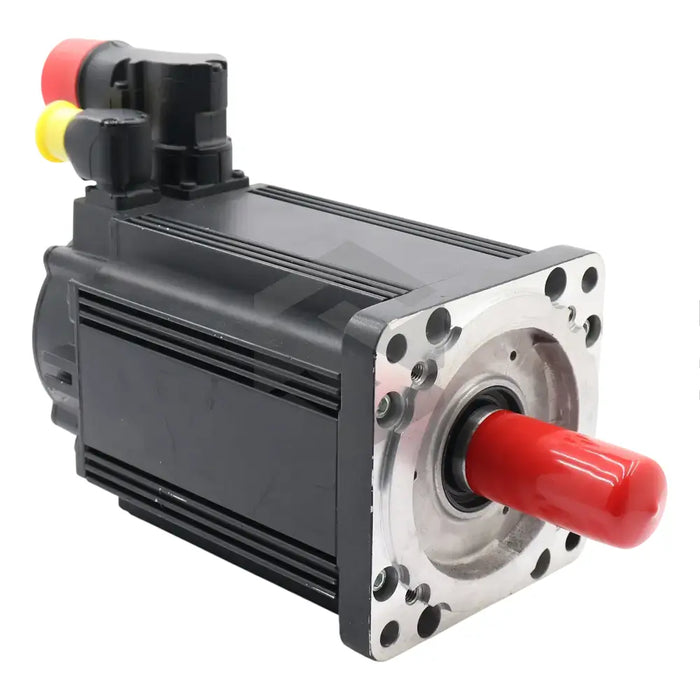

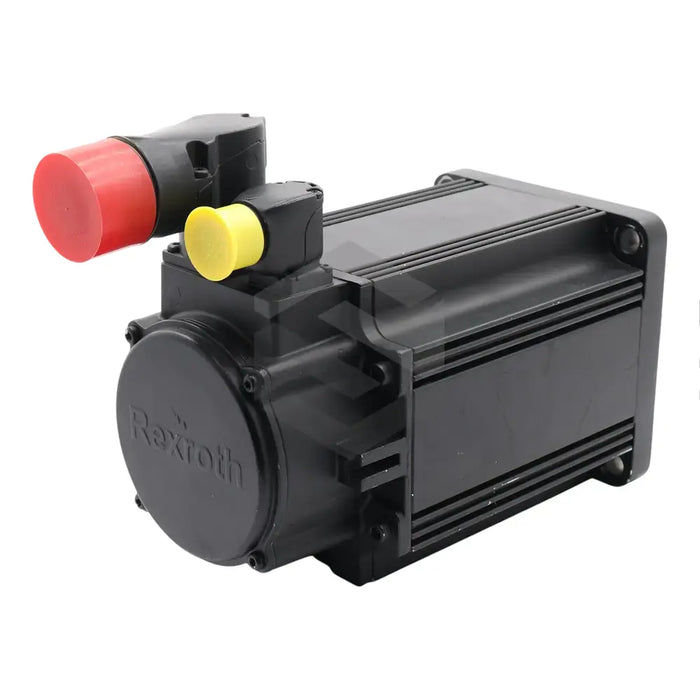

The MSK070C-0150-NN-M1-UG0-NNNN is a state-of-the-art synchronous motor manufactured by Bosch Indramat Rexroth, designed for top-tier automation applications. The size 70 motor boasts a 150 winding code and operates through conventional cooling. It incorporates an optical encoder with a Hiperface multiturn-absolute providing 128 signal periods. The motor is engineered to handle both axial and radial forces on its output shaft, thanks to its standard smooth shaft and sealing. Its electrical connection is a 240-degree rotatable plug. Assembly and start-up are achieved via an RLS1200 power connection cable and an RGS1000 encoder connection cable. The motor operates in an ambient temperature of 0 to 40 degrees and at altitudes up to 1000 metres. Protection levels include IP65, IP67, and IP24. A plain shaft ensures optimum running smoothness. The motor has a weight of 11.7kg, with a 6 pole pair configuration, a maximum torque of 33Nm, and a top speed of 2,500min-1. Temperature sensor thresholds are set at 140 degrees (warning) and 150 degrees (switch-off).
