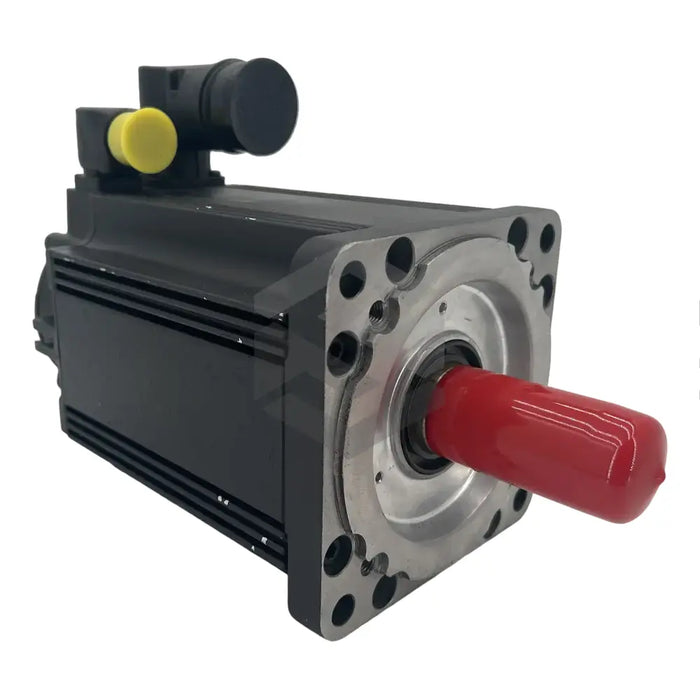

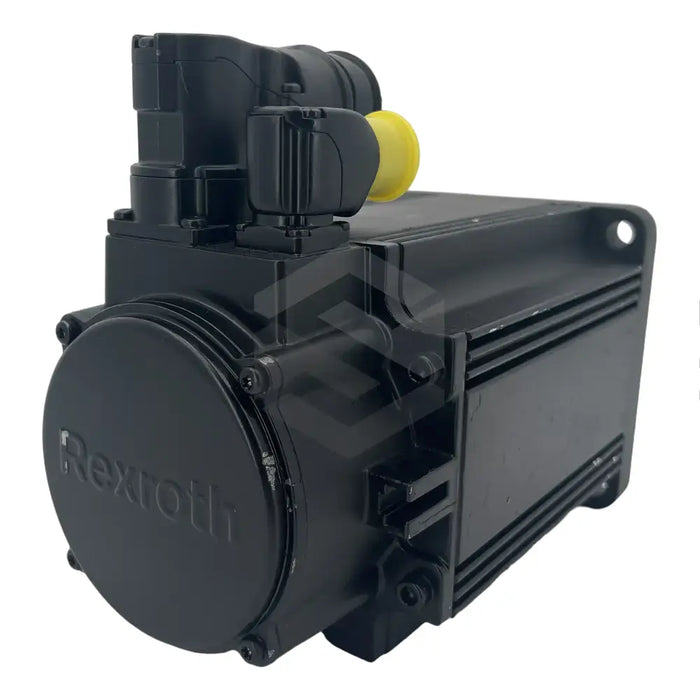

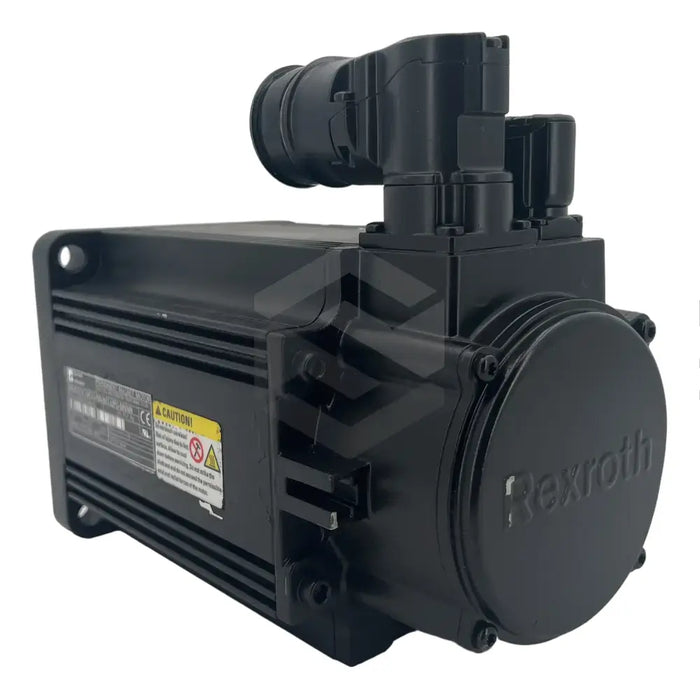

MSK070C-0150-NN-S1-UP0-NSNN

Request a quote
Produced by Bosch Rexroth Indramat, recognized for their premium-quality motors and drive controllers, the MSK070C-0150-NN-S1-UP0-NSNN model integrates an optical feedback system. It features an incremental encoder and provides an approximate system accuracy of 80 angular seconds, tracking position every 128 mechanical revolutions. Its microcontroller requires a battery backup to safely secure the real-time position of the axis during unforeseen shutdowns caused by power failures. The MSK070C synchronous motor, designed for standard and Ex types, comes with an output shaft coated with a keyway and sealing ring, enhancing shaft protection. It operates optimally within class 3K4 weather conditions, necessitating specific arrangements to assure desired air temperatures and humidity levels. Its electrical specifications include a maximum current of 16.4 A, winding inductance of 34.900 mH, and resistance of 4.70 ohms. Functioning at a top speed of 2500 RPM and torque of 33 Nm, the 11.7 kg model is conveniently portable.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MSK070C-0150-NN-S1-UP0-NSNN
  • Feedback Database: Optical
  • Encoder Type: Incremental
  • System Accuracy: 80 Angular Seconds
  • Position Tracking: Every 128 Mechanical Revolutions
  • Battery Backup: Required
  • Ambient Condition Suitability: Not Suitable for underwater, extreme temperatures, or excessive temperature variations
  • Design: Standard and Ex type
  • Output Shaft: With Keyway and Sealing Ring
  • Recommended Conditions: Class 3K4 Weather
  • Maximum Current: 16.4 A
  • Winding Inductance: 34.900 mH
  • Resistance: 4.70 Ohms
  • Maximum Speed: 2500 RPM
  • Torque: 33 Nm
  • Weight: 11.7 Kg
