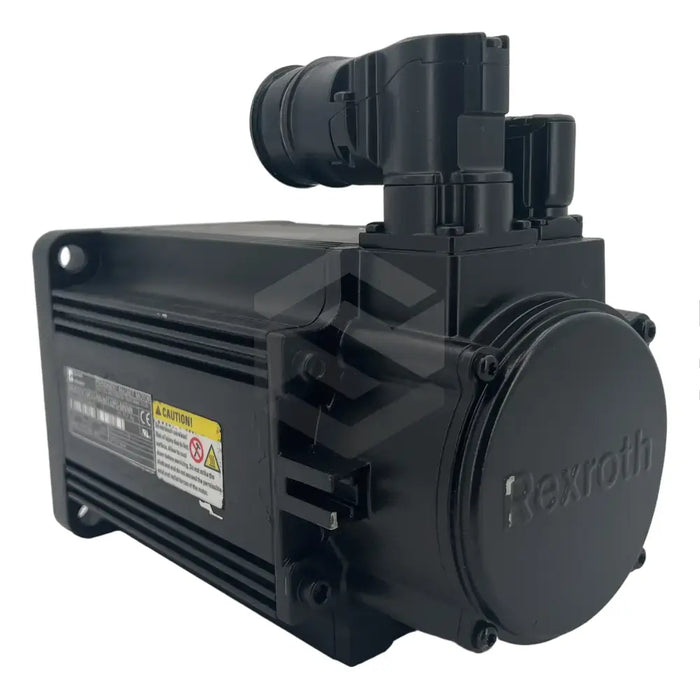

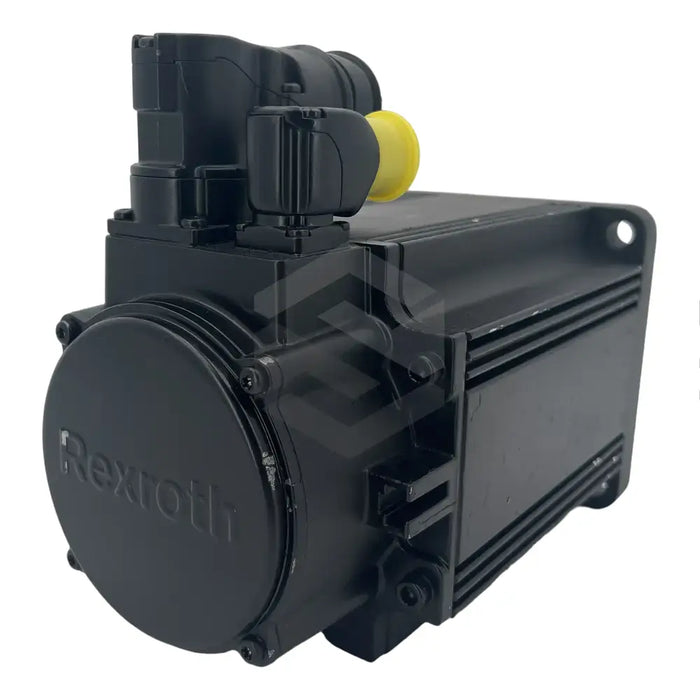

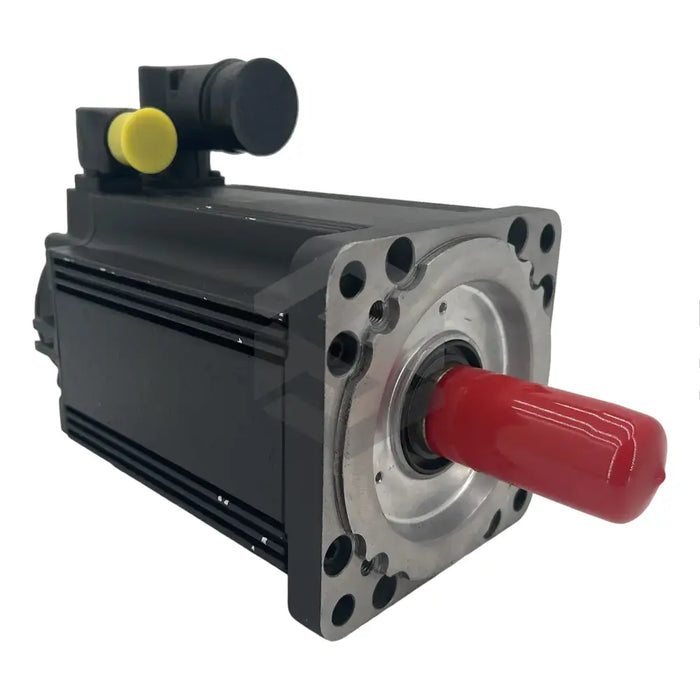

MSK070C-0300-NN-M2-UP0-RNNN

Original price $9,700.00 - Original price $9,700.00
Original price
$9,700.00
$9,700.00 - $9,700.00
Current price $9,700.00
In Stock, Ships 3 - 5 Days
Request a quote
The MSK070C-0300-NN-M2-UP0-RNNN is a synchronous motor designed by dependable manufacturer Bosch Rexroth Indramat. Renowned for its high power efficiency, this model provides protection from chalking, dilute acids, and mineral oils with its black paint. It can be mounted up to 1000 meters above sea level and features different mounting positions including IMV1 and IMB5. Equipped with an EnDat 2.1 optical encoder, it ensures absolute position sensing of the motor shaft during deceleration. It utilizes PELV systems for extra-low voltage protection and allows connections to devices with basic insulation. Offering high dynamics, it delivers a rated torque of 13 – 14.5 Nm at a current of 8.2 – 9.2 A with a 60 to 100-K temperature increase. With a voltage constant of 107 V per 1000 rpm and torque constant of 1.74 Nm/A, it can reach a maximum torque of 33 Nm at 5500 rpm. Depending on the ambient climate conditions, the motor weighs approximately 11.7 kg.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MSK070C-0300-NN-M2-UP0-RNNN
  • Housing: Black Paint-Protected
  • Mounting Altitude: Up to 1000 Meters Above Sea Level
  • Mounting Positions: IMV1and IMB5
  • Encoder: Multiturn Absolute EnDat 2.1 Optical Encoder
  • Protection: Extra-Low Voltage Protection
  • Rated Torque: 13 – 14.5 Nm
  • Rated Current: 8.2 – 9.2 A
  • Temperature Increase: 60 to 100K
  • Voltage Constant: 107 V per 1000 rpm
  • Torque Constant: 1.74 Nm/A
  • Ambient Climatic Conditions: Based on DIN EN 60721-3-3
  • Max Torque: 33 Nm at 5500 rpm
  • Weight: 11.7 kg
