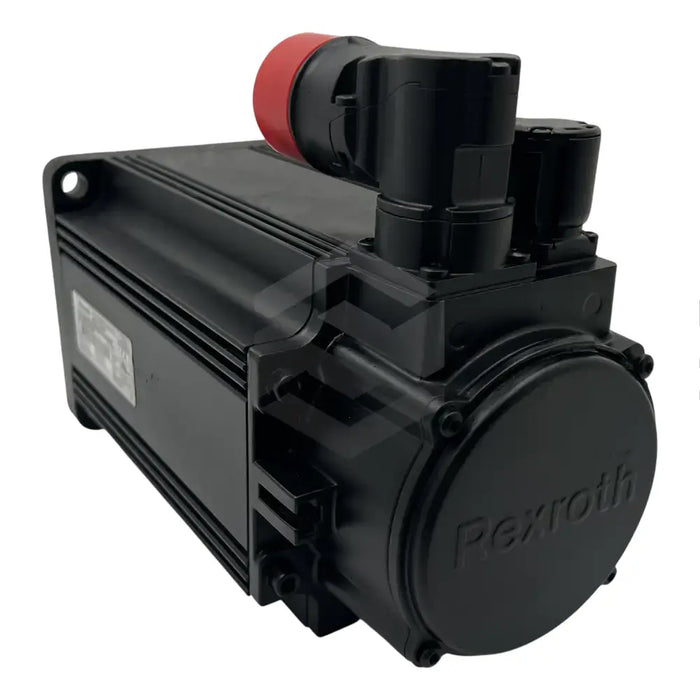

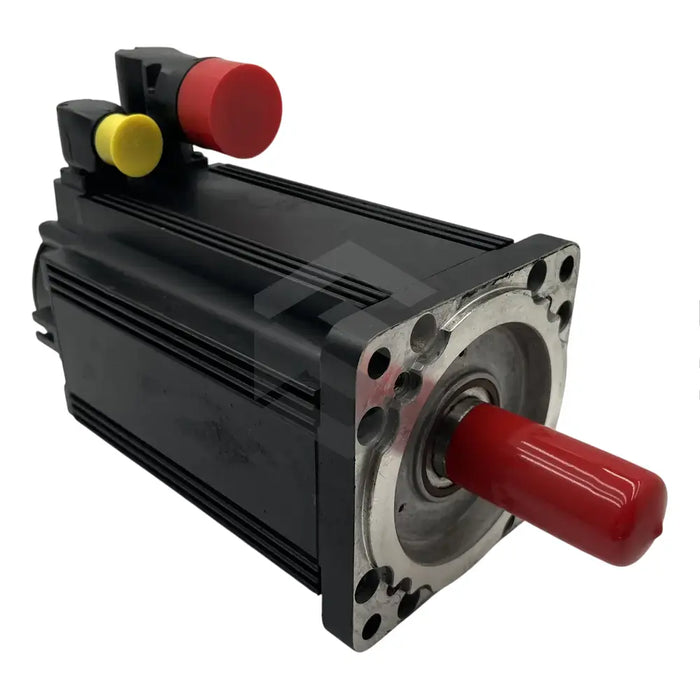

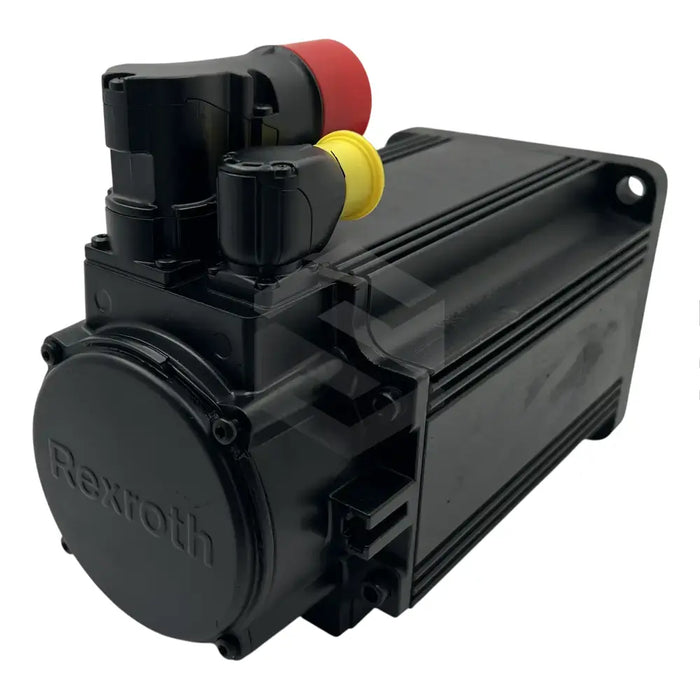

series image of MSK070D-0150-NN-M2-UG1-RNNN

MSK070D-0150-NN-M2-UG1-RNNN

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat MSK070D-0150-NN-M2-UG1-RNNN is a synchronous motor featuring a 23Nm holding brake that operates on an electrically releasing principle. Cooled naturally, it can withstand temperatures up to 55°C. The device must be programmed before startup to perform application-specific functions and is not intended for underwater use. It adheres to EN 60034-1 specifications with an IP 65 protection degree. An improper cable connection could induce hazardous drive controller movements. Quiet operation is ensured by a plain, backlash-free force-fit shaft hub connection. The radial shaft sealing ring, compliant with DIN 3760, Version A, is greased for life and designed as an abrasive seal. It should not come into sustained contact with gearbox oil. Equipped with the EnDat 2.1 multiturn absolute optical encoder, this device includes a 0150 winding code, a 24V +/-10% rated holding brake, and must not be exposed to sunlight for storage.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MSK070D-0150-NN-M2-UG1-RNNN
  • Holding Brake: 23Nm
  • Brake Operation: Electrically releasing principle
  • Length Code: D
  • Cooling Method: Natural convection
  • Max Operating Temperature: 55°C
  • IP Protection: IP 65 (EN 60034-1 specifications)
  • Shaft Type: Plain shaft
  • Shaft Connection: Backlash-free force-fit
  • Shaft Sealing Ring: Radial (DIN 3760, Version A specifications)
  • Winding Code: 0150
  • Absolute Encoder: EnDat 2.1 multiturn absolute optical encoder (2048 signal periods)
  • Holding Brake Voltage: 24V +/-10%
  • Storage: Sun-protected environment
  • Handling: Crane with loop lifting straps
  • Underwater Compatibility: Not compatible
  • Misconnection Consequence: Can trigger dangerous movements of the drive controller
  • Absorbable Radial Force: Not exceeding maximum permissible force
  • Max Axial Force Tolerability: Bearing can be damaged if exceeded.
