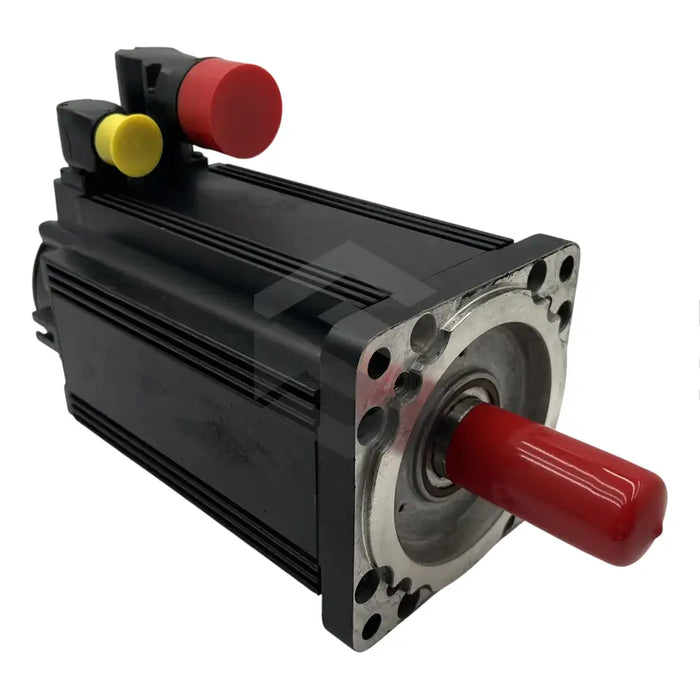

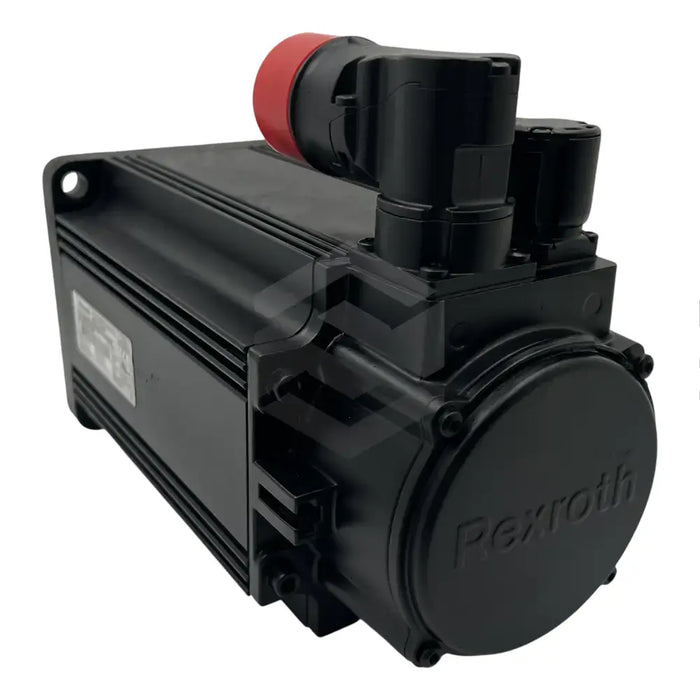

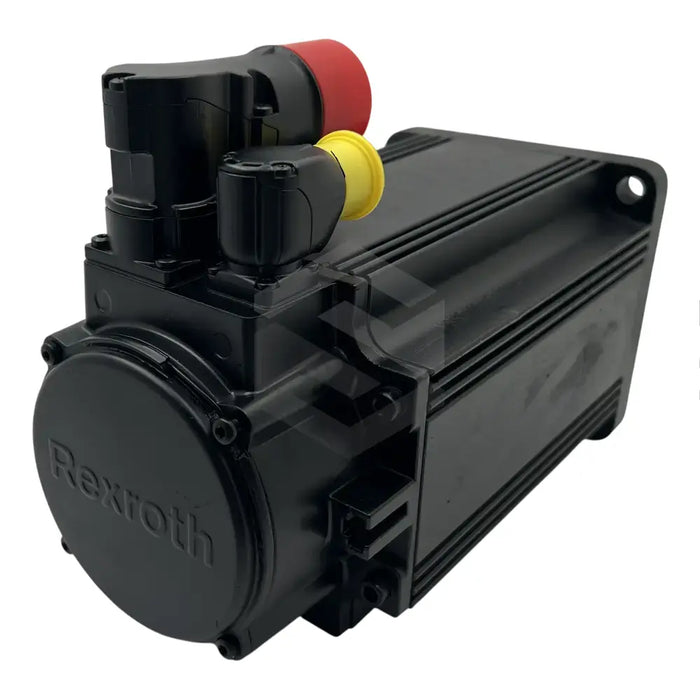

series image of a MSK070D-0300-NN-M1-UG0-NNNN

MSK070D-0300-NN-M1-UG0-NNNN

by Bosch Rexroth Indramat
$4,738.00 - $4,738.00
$4,738.00
$4,738.00 - $4,738.00
$4,738.00
Available, Shipping Varies
The Bosch Rexroth Indramat MSK070D-0300-NN-M1-UG0-NNNN servo motor features a standard design with a versatile 240-degree turn capability on both connectors. The motor includes a plain shaft that houses a wear-resistant seal for protecting the bearings and enhancing the motor's reliability. This servo motor supports real-time feedback using its integrated multiturn optical encoder that follows the Hiperface protocol and offers 128 signal periods. It is cooled through natural convection process with an alternate option for surface cooling available. The motor weighs 14 kilograms and has dimensions like 32mm shaft diameter, 130mm centering diameter, 140mm flange size, and 268mm motor length. It allows a maximum rotational speed of 4900 RPM, with its performance metrics including 1.75 Nm/A torque constant, a winding resistance of 0.75 Ohms, 107.3 Volts/1000 RPM voltage constant, and 0.00375 kg m2 rotor inertia, all measured at 20 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MSK070D-0300-NN-M1-UG0-NNNN
  • Product Type: Servo Motor
  • Motor Design: Standard
  • Shaft Type: Plain with Shaft Seal
  • Encoder: Integrated Multiturn Optical (Hiperface, 128 Signal Periods)
  • Cooling Method: Natural Convection
  • Weight: Approx. 14kg
  • Shaft Diameter: 32mm
  • Centering Diameter: 130mm
  • Flange Size: 140mm
  • Motor Length: 268mm
  • Torque Constant (20C): 1.75 Nm/A
  • Voltage Constant (20C): 107.3 Volts/1000 RPM
  • Winding Resistance (20C): 0.75 Ohms
  • Winding Inductance: 6 millihenry
  • Rotor Moment of Inertia: 0.00375 kg m2
  • RPM: Up to 4900
  • Continuous Torque at Standstill (60K Overtemperature): 17.5 Nm
  • Continuous Current at Standstill (60K Overtemperature): 11 Amps
  • Continuous Torque at Standstill (100K Overtemperature): 20 Nm
  • Continuous Current at Standstill (100K Overtemperature): 12.6 Amps
