MSK070D-0300-NN-M1-UG0-NSNN

Request a quote

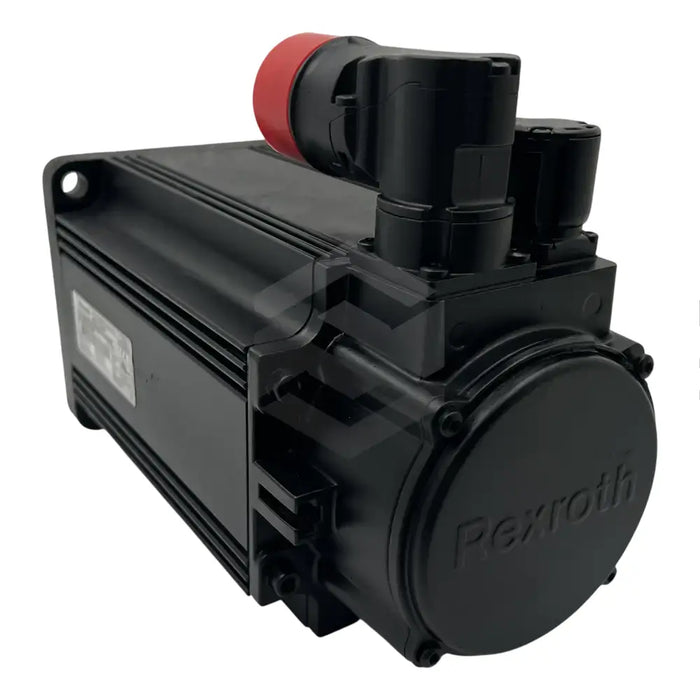

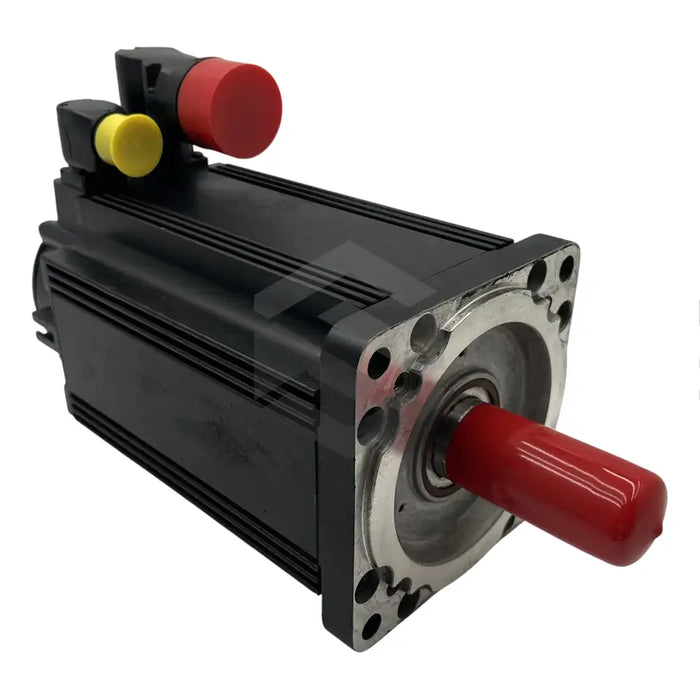

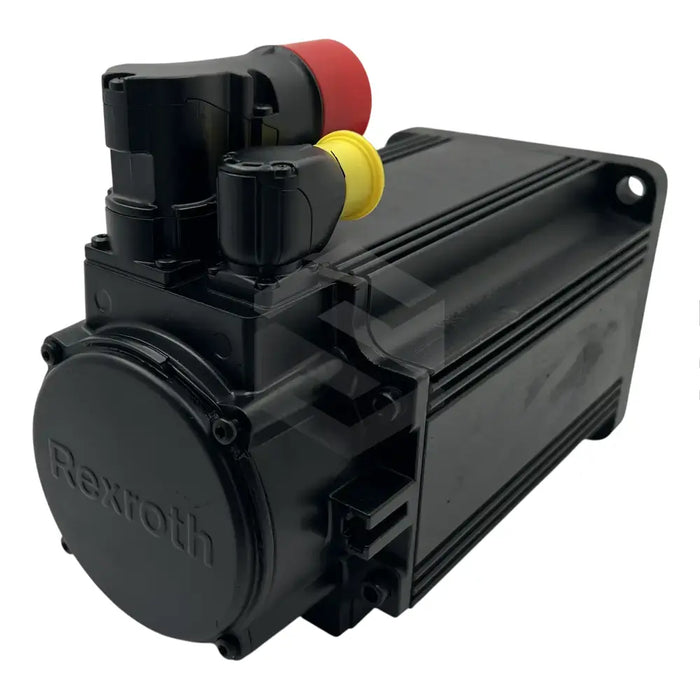

The MSK070D-0300-NN-M1-UG0-NSNN is a servo motor manufactured by Bosch Rexroth Indramat. This motor is designed with versatility in mind, available in both standard and extended designs per the group II EN 60079 device requirements. It features a plain shaft with an external length of 58mm and diameter of 32mm. This device is flange-mountable, characterized by a 140mm flange size and a 12mm radius on each mounting hole. Measuring 268mm in length, this motor weighs roughly 14kg. It does not have a holding brake, unlike other MSK motors, but it includes an integrated optical multiturn encoder, providing motor feedback. Other encoder types can be ordered if needed. The motor's power and feedback connectors are rotatable up to 240 degrees, ensuring versatile configuration. Cooling occurs naturally, with an optimal operating temperature range between 0 and 40 degrees Celsius. Its IP65 protection rating, facilitated by a sealed housing and connectors, ensures resilience in adverse environmental conditions.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Design type: Standard and extended according to device group II EN 60079
  • Frame Size: 070
  • Frame Length Code: D
  • Motor Winding Code: 0300
  • Shaft Type: Plain
  • Shaft Diameter: 32 millimeters
  • Shaft length outside housing: 58 millimeters
  • Centering Diameter: 130 millimeters
  • Mount Type: Flange
  • Flange Size: 140 millimeters
  • Mounting Hole Radius: 12 millimeters
  • Motor Length: 268 millimeters
  • Shipping weight: 14 kilograms
  • Holding Brake: Absent
  • Encoder Type: Optical Multiturn (Integrated)
  • Power Connector: 240-degree rotatable
  • Feedback Connector: 240-degree rotatable
  • Cooling Method: Natural Convection
  • Recommended Ambient Temperature: 0 to 40 degrees Celsius
  • Protection Rating: IP65
