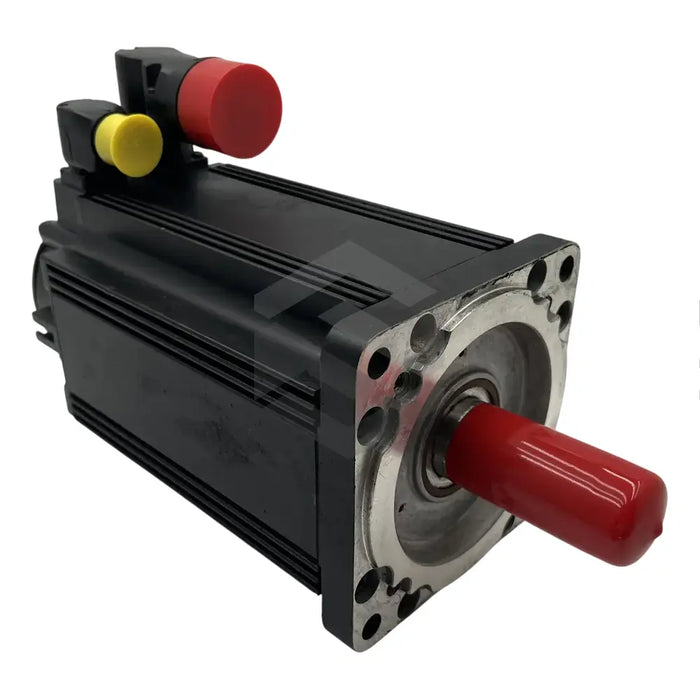

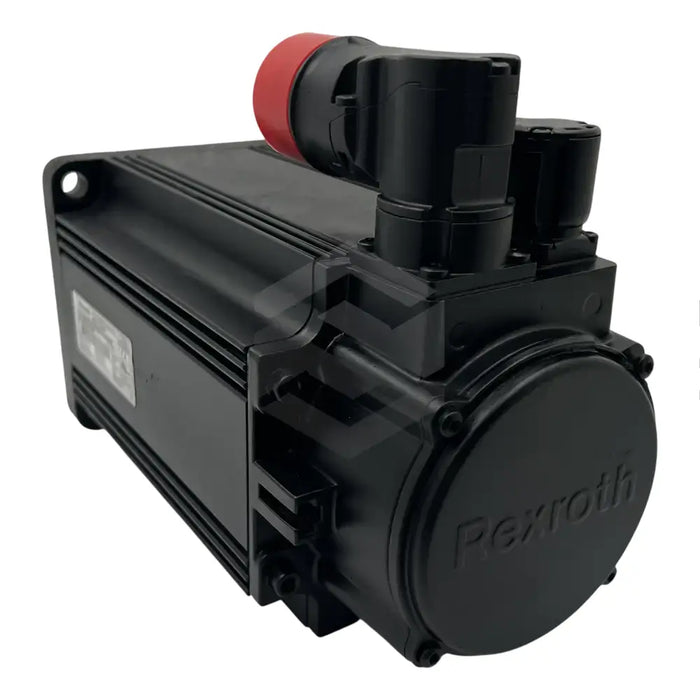

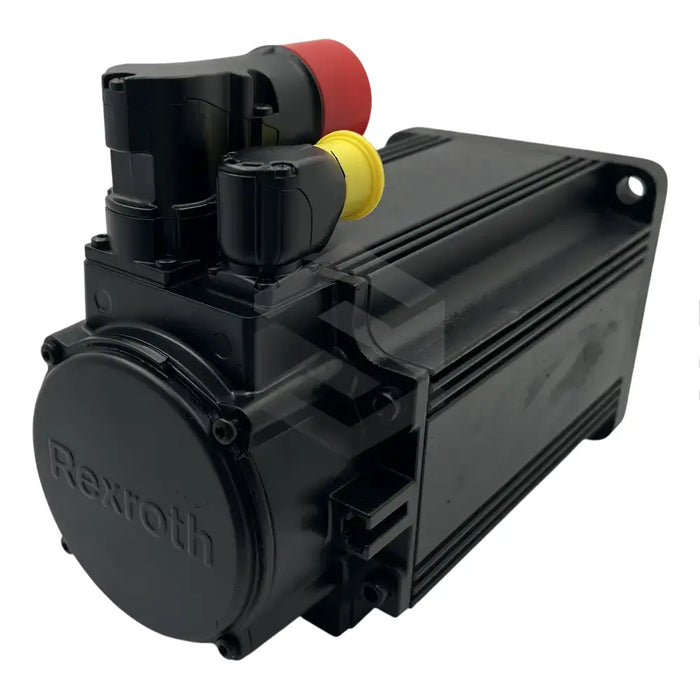

MSK070D-0300-NN-S1-UG1-NNNN

Original price $9,400.00 - Original price $9,400.00
Original price
$9,400.00
$9,400.00 - $9,400.00
Current price $9,400.00
In Stock, Ships Today
Request a quote
Bosch Rexroth Indramat has manufactured a superior quality MSK070D-0300-NN-S1-UG1-NNNN model synchronous motor that offers robust performance across a multitude of applications. This 14 kg, rugged motor comes encapsulated in IP 65 rated housing and 155 insulation to prevent against dust and water spray damages. With a plain shaft design and sealing ring, it has an in-built 6 mH winding inductivity. It includes a single turn hiperface optical encoder to track its speed and position, offering a constant torque of 20 Nm. The motor relies on a natural cooling mechanism to manage the temperatures with a thermal time constant of 23 minutes. The motor operates with remarkable dynamism and life, scoring less than 75 dB in sound pressure level. Operating to its maximum capacity under optimal conditions, it delivers a top speed of 4900 rpm, producing a maximum torque of 52.5 Nm and 33 A current.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: IndraDyn S line motor
  • Model: MSK070D-0300-NN-S1-UG1-NNNN
  • Housing Seperation: IP 65
  • Insulation Level: 155
  • Weight: 14 kg
  • Winding Inductance: 6 mH
  • Shaft: Plain, with sealing ring
  • Encoder Type: Singleturn hiperface optical
  • Constant Torque at 100 K: 20 Nm
  • Continuous Current at 100 K: 12.6 A
  • Sound Pressure Level: Less than 75 dB
  • Maximum rotational speed: 4900 rpm
  • Maximum Torque: 52.5 Nm
  • Maximum Current: 33 A
  • Constant Torque at 60 k: 17.5 Nm
  • Continuous Current at 60 k: 11 A
  • Thermal Time Constant: 23 minutes
  • Winding Resistance at 20°C: 0.75 ohms
  • Torque Constant: 1.75 Nm/A
  • Voltage Constant: 107.3 V/1000min-1.
