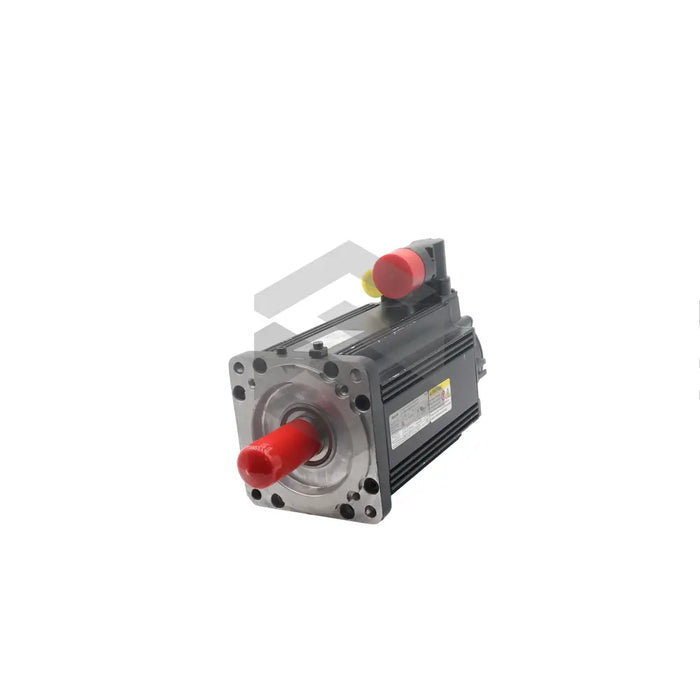

MSK070D-0300-NN-S1-UP1-NNNN

Original price $15,470.00 - Original price $15,470.00
Original price
$15,470.00
$15,470.00 - $15,470.00
Current price $15,470.00
In Stock, Ships Today
Request a quote
The Bosch Rexroth MSK070D-0300-NN-S1-UP1-NNNN is a synchronous motor that weighs 14 kg and operates below 75 decibels. It is known for its energy efficiency, durability and cost-effectiveness. Despite its compact size, it delivers a constant torque of 17.5 Nm at 60 K standstill temperature, consuming 11 A of current. It has built-in features like brake choppers and drive converters for better performance and safety. With a thermal time constant of 23 minutes, and a moment of inertia of 0.00375 kgm2, it can produce a maximum torque of 52.5 Nm and attain a top speed of 4900 RPM. It is also protected against high-pressure water, oils and other non-corrosive compounds as per IP65 standards. Safety is further enhanced by an internal temperature sensor and a rotatable electrical plug. The model is also provided with a keyways output shaft with a sealing ring for improved lubrication resistance.
30 Day Warranty
Technical Specifications
  • Product: Bosch Rexroth Synchronous Motors MSK070D-0300-NN-S1-UP1-NNNN
  • Weight: 14 kg
  • Noise Level: < 75 dB
  • Motor Temperature: 60 K
  • Torque at Standstill: 17.5 Nm
  • Current Consumption: 11 A
  • Holding Brake Weight: 1.6 kg
  • Holding Brake Current: 0.79 A
  • Holding Torque: 23 Nm
  • Connection Time: 130 ms
  • Disconnection Time: 180 ms
  • Thermal Time Constant: 23 minutes
  • Winding Inductance: 6 mH
  • Moment of Inertia: 0.00375 kgm2
  • Insulation Class: 155
  • Protection Standard: IP65
  • Maximum Torque: 52.5 Nm
  • Maximum Speed: 4900 rpm
  • Electrical Connection: Rotatable plug
  • Enclosure Features: Natural convection-friendly
  • Temperature Sensor: Included
  • Output Shaft: Keyways with sealing ring
  • Discharge Capacity: 4.5 nF
  • Polar Pairs: 6.
