S image of MSK070D-0300-NN-S1-UP1-NNNN

MSK070D-0300-NN-S1-UP1-NNNN

by Bosch Rexroth Indramat
$9,032.10 - $21,266.85
$21,266.85
$9,032.10 - $21,266.85
$21,266.85

Available, Shipping Varies

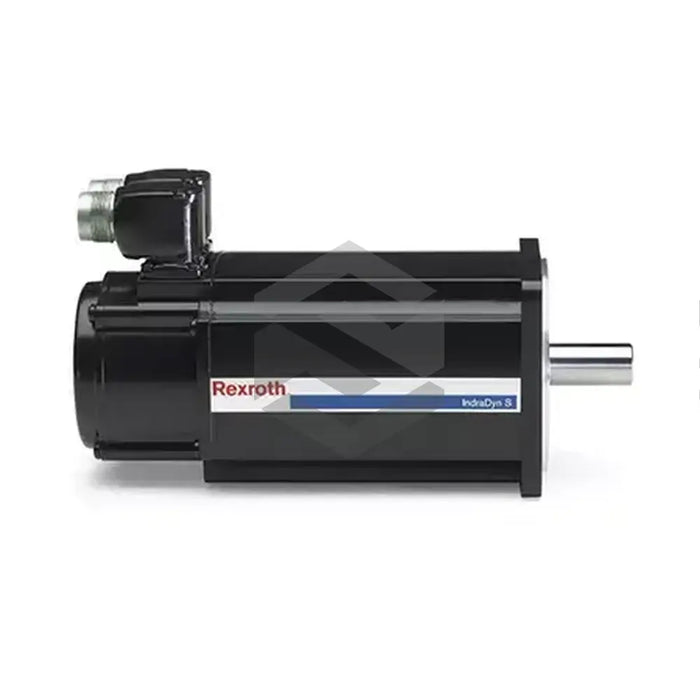

The Bosch Rexroth MSK070D-0300-NN-S1-UP1-NNNN is a synchronous motor that weighs 14 kg and operates below 75 decibels. It is known for its energy efficiency, durability and cost-effectiveness. Despite its compact size, it delivers a constant torque of 17.5 Nm at 60 K standstill temperature, consuming 11 A of current. It has built-in features like brake choppers and drive converters for better performance and safety. With a thermal time constant of 23 minutes, and a moment of inertia of 0.00375 kgm2, it can produce a maximum torque of 52.5 Nm and attain a top speed of 4900 RPM. It is also protected against high-pressure water, oils and other non-corrosive compounds as per IP65 standards. Safety is further enhanced by an internal temperature sensor and a rotatable electrical plug. The model is also provided with a keyways output shaft with a sealing ring for improved lubrication resistance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

Bosch Rexroth Synchronous Motors MSK070D-0300-NN-S1-UP1-NNNN

Weight

14 kg

Noise Level

< 75 dB

Motor Temperature

60 K

Torque at Standstill

17.5 Nm

Current Consumption

11 A

Holding Brake Weight

1.6 kg

Holding Brake Current

0.79 A

Holding Torque

23 Nm

Connection Time

130 ms

Disconnection Time

180 ms

Thermal Time Constant

23 minutes

Winding Inductance

6 mH

Moment of Inertia

0.00375 kgm2

Insulation Class

155

Protection Standard

IP65

Maximum Torque

52.5 Nm

Maximum Speed

4900 rpm

Electrical Connection

Rotatable plug

Enclosure Features

Natural convection-friendly

Temperature Sensor

Included

Output Shaft

Keyways with sealing ring

Discharge Capacity

4.5 nF

Polar Pairs

6.
