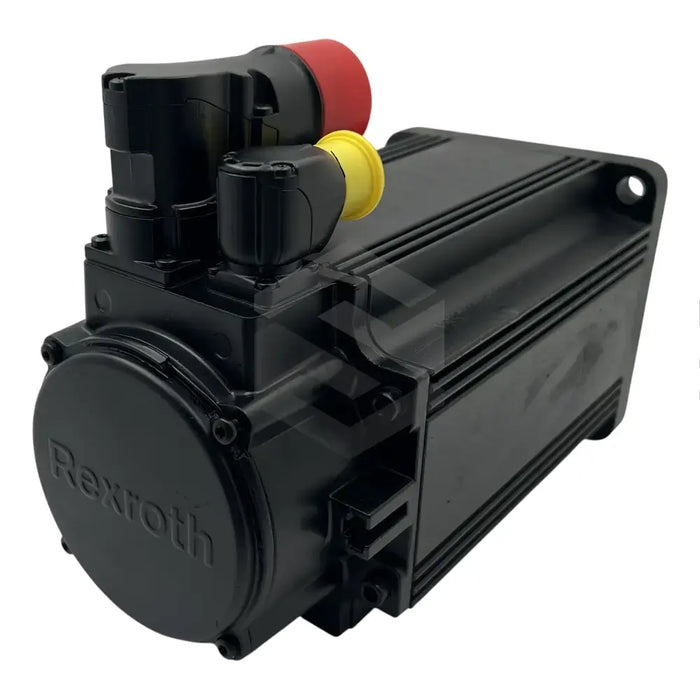

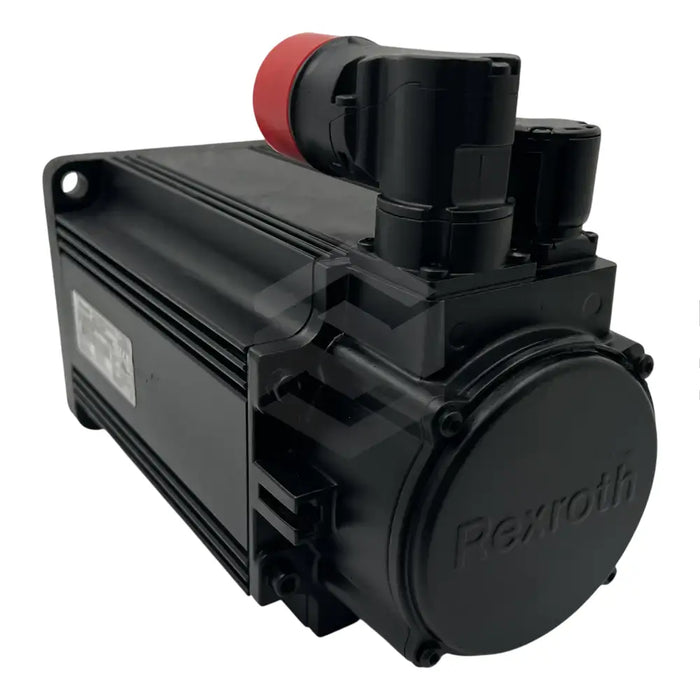

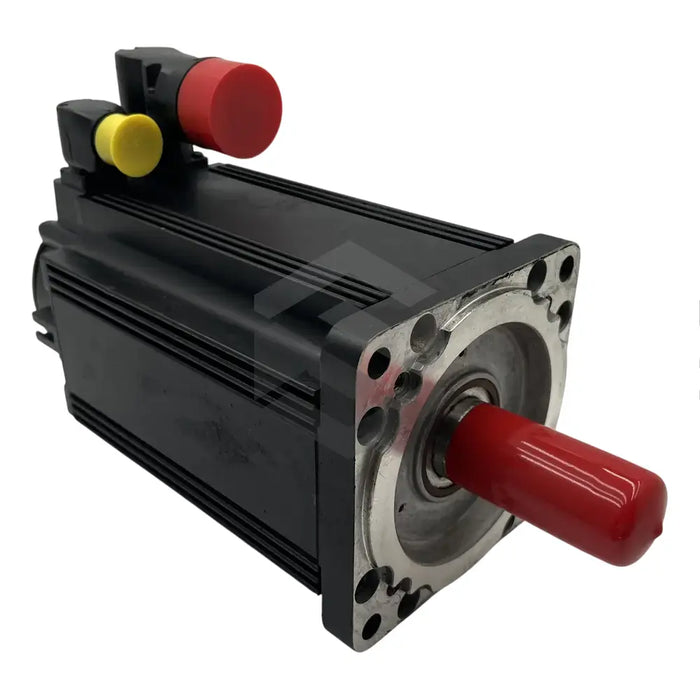

series image of MSK070D-0300-NN-S2-UG1-RNNN

MSK070D-0300-NN-S2-UG1-RNNN

by Bosch Rexroth Indramat
$4,349.63 - $4,349.63
$4,349.63
$4,349.63 - $4,349.63
$4,349.63
In Stock, Ships 3 - 5 Days
The MSK070D-0300-NN-S2-UG1-RNNN, a high-quality synchronous motor, is a product of Bosch Rexroth Indramat, renowned for their outstanding engineering equipment. The motor generates a consistent 17.5 Nm of torque at a standstill temperature of 60 K while drawing a continuous 11 A current. With a torque constant of 1.75 Nm/A and voltage constant of 107.3 V/1000min-1, the motor also boasts a winding resistance of 0.75 ohms at 20°C. Designed for a temperature range between -20°C and +80°C and altitudes up to 1000 meters above sea level, this model possesses six polar pairs and a thermal time constant of 23 minutes. The motor also features a plain output shaft with a sealing ring and a holding brake with a 0.000300 kgm² moment of inertia and 23 Nm of holding torque. The unit, fitted with an EnDat2.1 encoder, operates with a maximum speed of 4900 RPM, producing a sound pressure level under 75 dB.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MSK070D-0300-NN-S2-UG1-RNNN
  • Standstill Temperature: 60 K
  • Constant Torque at Standstill: 17.5 Nm
  • Continuous Current: 11 A
  • Torque Constant: 1.75 Nm/A
  • Voltage Constant: 107.3 V/1000min-1
  • Winding Resistance: 0.75 ohms at 20 degrees Celsius
  • Pole Pairs: 6
  • Thermal Time Constant: 23 minutes
  • Operating Temperature: -20 to +80 degrees Celsius
  • Usage Temperature: 0 to +40 degrees Celsius
  • Maximum Altitude: 1000 meters above sea level
  • Output Shaft: Plain with sealing ring
  • Moment of Inertia: 0.000300 kgm2
  • Holding Brake Torque: 23 Nm
  • Holding Brake Weight: 1.6 kg
  • Holding Brake Rated Current: 0.79 amps
  • Maximum Rotation Speed: 4900 RPM
  • Weight: 14 kg
  • Sound Pressure Level: less than 75 dB
  • Encoder Type: EnDat2.1 with absolute characteristics
  • Availability: In stock at Servo Supplier.
