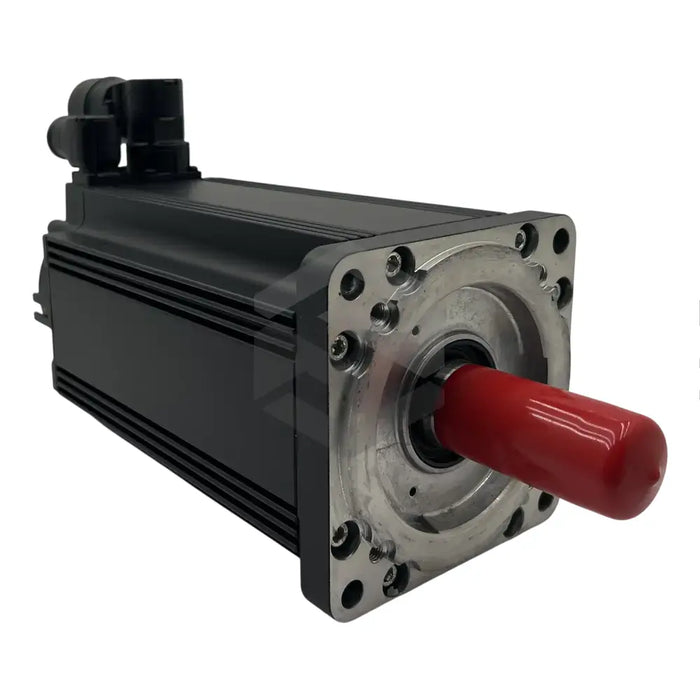

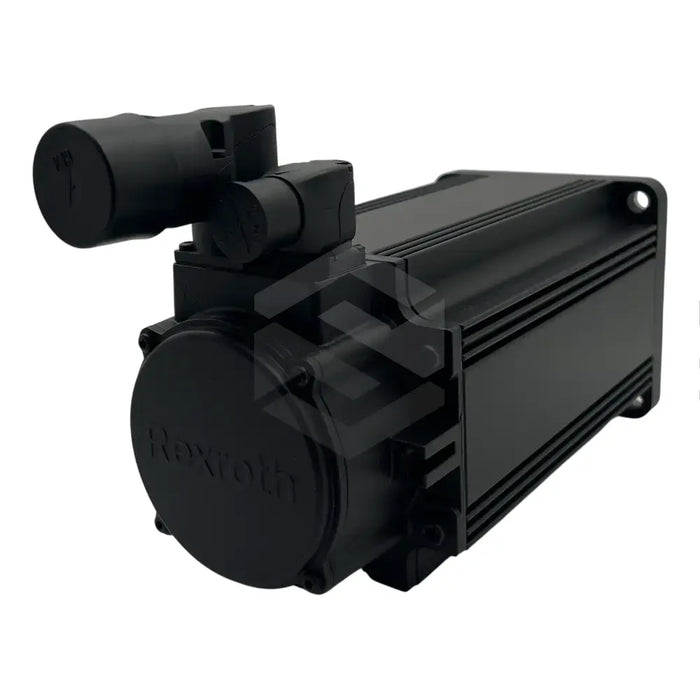

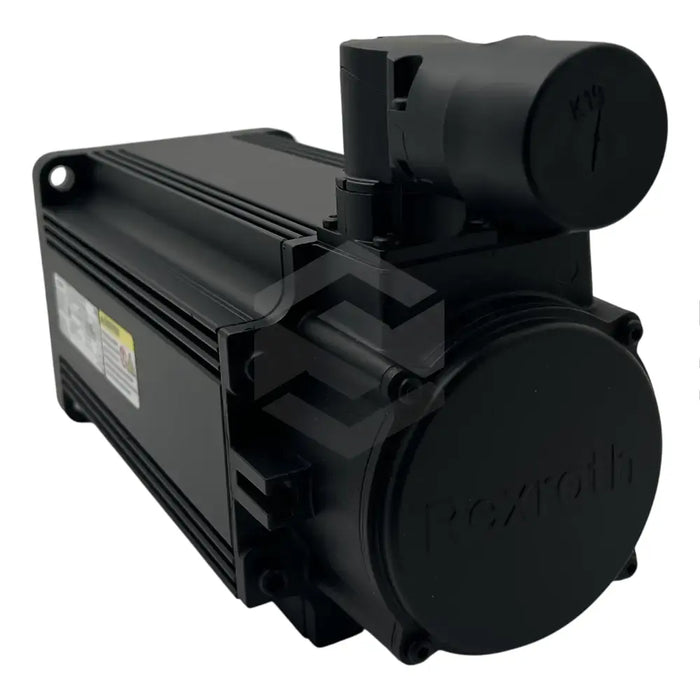

series image of MSK070E-0150-NN-M1-UP1-NNNN

MSK070E-0150-NN-M1-UP1-NNNN

by Bosch Rexroth Indramat
$3,137.40 - $3,137.40
$3,137.40
$3,137.40 - $3,137.40
$3,137.40
Available, Shipping Varies
The MSK070E-0150-NN-M1-UP1-NNNN is a top-tier synchronous motor from reputable manufacturer, Bosch Rexroth Indramat. The motor showcases versatility with its capacity for continuous torque achieving 25 Nm at 100k and 23 Nm at 60k standstill temperatures. Given its lightweight at 16.2kg and high-quality torque density, the product is exceedingly suitable for diverse applications. The unit meets the IP 65 protection standard and thermal class of 155, offering robustness for extreme environments. The motor performs optimally within an ambient temperature range of 0 to +40 degrees Celsius and can endure -20 to +80 degrees during transport. It features a 240-degree rotational electrical plug and can function as a rotary main or an independent servo drive. Noteworthy specifications include a 1.6kg holding brake, a 24-volt rated voltage, an optical encoder and an output shaft. The product operates under a 1000 meters altitude and producing a noise level under 75 dB.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MSK070E-0150-NN-M1-UP1-NNNN
  • Product Type: Synchronous Motor
  • Continuous Torque (100k standstill temperature): 25 Nm
  • Continuous Torque (60k standstill temperature): 23 Nm
  • Weight: 16.2 kilograms
  • Protection Standard: IP65
  • Thermal Class: 155 (F)
  • Operation Ambient Temperature: 0 to +40 degrees Celsius
  • Transportation Ambient Temperature: -20 to +80 degrees Celsius
  • Plug Type: 240-degree rotational electrical
  • Holding Brake Weight: 1.6 kg
  • Holding Brake Voltage: 24 volts
  • Connection Duration: 130 milliseconds
  • Disconnection Duration: 180 milliseconds
  • Output Shaft Type: keyways
  • Encoder Type: multiturn-absolute hiperface
  • Maximum Elevation for Installation: 1000 meters above sea level
  • Maximum Speed: 2200 rpm
  • Maximum Torque: 70 Nm
  • Noise level: less than 75 dB
  • Torque Constant at 20 degrees Celsius: 3.97 Nm/A
  • Winding Resistance at 20 degrees Celsius: 3.10 ohms.
