S image of MSK070E-0150-NN-M2-UP1-RNNN

MSK070E-0150-NN-M2-UP1-RNNN

by Bosch Rexroth Indramat
$5,408.37 - $5,408.37
$5,408.37
$5,408.37 - $5,408.37
$5,408.37

In Stock, Ships 1 - 3 Days

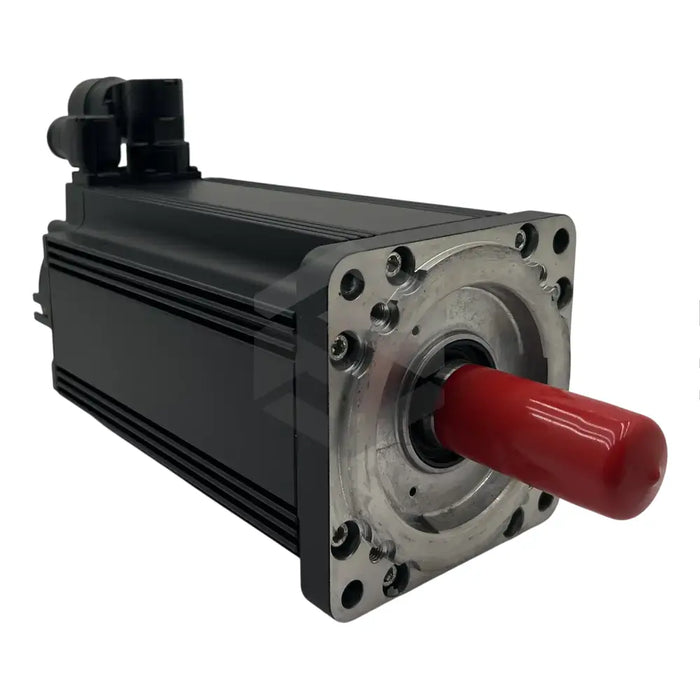

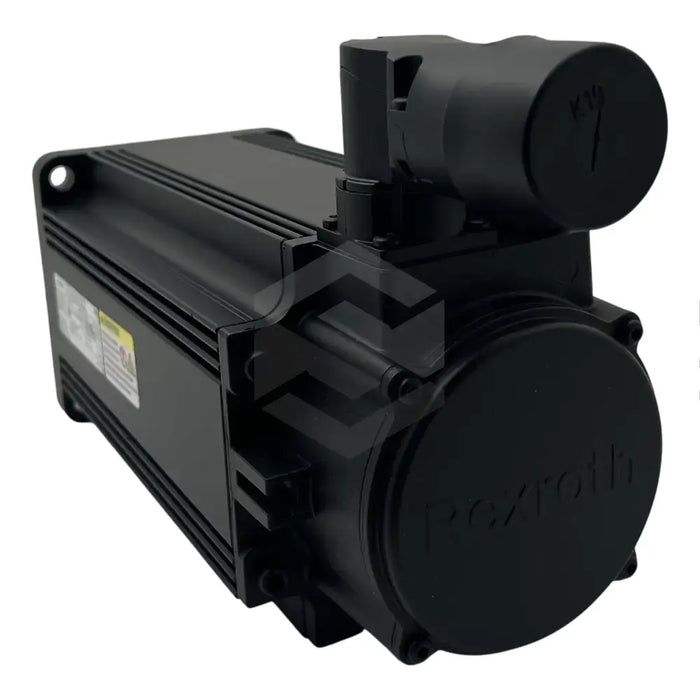

The MSK070E-0150-NN-M2-UP1-RNNN, manufactured by Bosch Rexroth Indramat, is a reliable synchronous motor well-suited for industrial automation applications. It features six pole pairs, and has a torque constant of 3.94 Nm at 20 degrees Celsius. The motor, weighing 16.2 kg, has a thermal constant of 32 minutes, operates at under 75 decibels, and can reach a maximum speed of 4600 RPM. The humidity range for optimum operation is 5-95%, while absolute air humidity levels should be between 1-29 g/m3. The unit's output shaft has keyways, and the maximum torque is 70 Nm. The MSK070E-0150-NN-M2-UP1-RNNN also features a built-in holding brake with 23 Nm of torque, a rated voltage of 24V, and a connection/disconnection time of 130/180 ms. This Bosch Rexroth Indramat motor is sold by Servo Supplier and is intended for operation by qualified personnel in specific industrial contexts.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Brand

Bosch Rexroth Indramat

Model

MSK070E-0150-NN-M2-UP1-RNNN

Discharge Capacity

6.3 nF

Torque Constant

3.94 Nm (20 degrees Celsius)

Polar Pairs

6

Motor Weight

16.2 kilograms

Thermal Time Constant

32 minutes

Sound Level

Less than 75 decibels

Minimum Relative Humidity

5%

Maximum Relative Humidity

95%

Minimum Absolute Air Humidity

1 gram per cubic meter

Maximum Absolute Air Humidity

29 grams per cubic meter

Maximum Speed

4600 revolutions per minute

Maximum Torque

70 Nm

Maximum Current Consumption

25.6 A

Winding Resistance

3.10 ohms (20 degrees Celsius)

Voltage Constant

242.4 V/1000min-1

Rotor Moment of Inertia

0.00458 kgm2

Environmental Class

3K4

Holding Brake Weight

1.6 kilograms

Holding Torque

23 Nm

Holding Brake Rated Voltage

24 V

Holding Brake Moment of Inertia

0.000300 kgm2

Holding Brake Connection Time

130 ms

Holding Brake Disconnection Time

180 ms
