S image of MSK070E-0300-NN-M2-UP1-RNNN

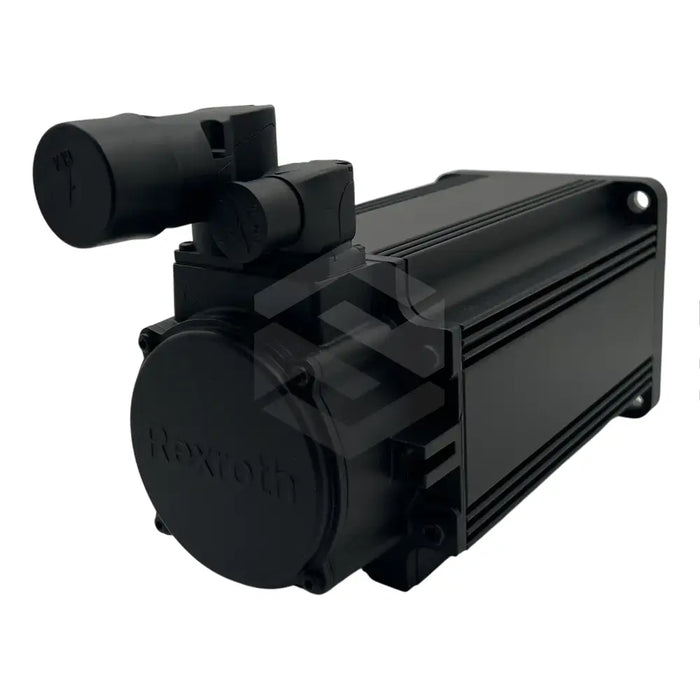

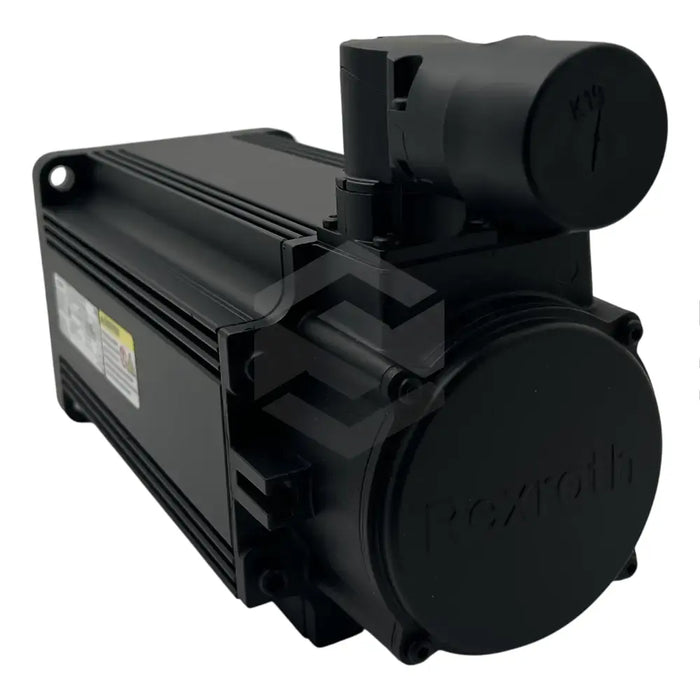

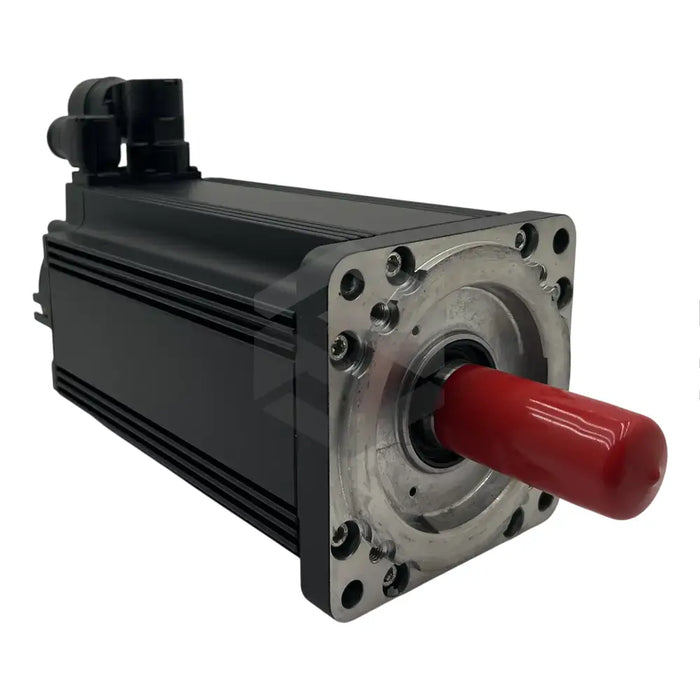

MSK070E-0300-NN-M2-UP1-RNNN

by Bosch Rexroth Indramat
$5,553.54 - $10,674.89
$5,553.54
$5,553.54 - $10,674.89
$5,553.54

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's product MSK070E-0300-NN-M2-UP1-RNNN is an MSK series synchronous motor for industrial applications. It boasts key features such as a multiturn encoder rated for 2048 signal periods, a shaft with a keyway, a holding brake, and rotatable connectors. With the encoder supporting up to 4096 revolutions and delivering accuracy up to ±20 angular seconds, it provides a maximum speed of 12,000 RPM and consumes 50 milliamps of current. The shaft adheres to DIN 6885-1 with an included sealing ring. Equipped with a 23 Nm holding brake, it operates on 24 Volts DC and draws 0.79 Amps current. The cooling of the motor is via natural convection and it functions optimally at altitudes ranging from 0 to 1000 meters. The unit's power is sourced from a drive controller, with the feedback system feeding data back to the controller.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Manufacturer

Bosch Rexroth Indramat

Product Series

MSK

Product Model

MSK070E-0300-NN-M2-UP1-RNNN

Product Type

Industrial Synchronous Motor

Encoder Type

Multiturn Encoder with EnDat 2.1 interface

Encoder Signal Periods

2048

Encoder Revolutions

4096

Encoder Accuracy

±20 angular seconds

Encoder Max Speed

12,000 RPM

Encoder Current Consumption

50 milliamps

Encoder Supply Voltage

7 to 12 Volts DC

Shaft Type

With Keyway and Sealing Ring

Brake Type

Holding Brake

Brake Torque

23 Nm

Brake Operating Voltage

24 Volts DC

Brake Current

0.79 Amps

Brake Connection Time

35 milliseconds

Brake Disconnection Time

180 milliseconds

Housing Standards

DIN 42955

Cooling Method

Natural Convection

Temperature Range

0 to 40 degrees Celsius

Altitude Range

0 to 1000 meters

Humidity Range

5% to 95%

Max Temperature Change

0.5 degrees Celsius per minute

Power Source

Drive Controller.
