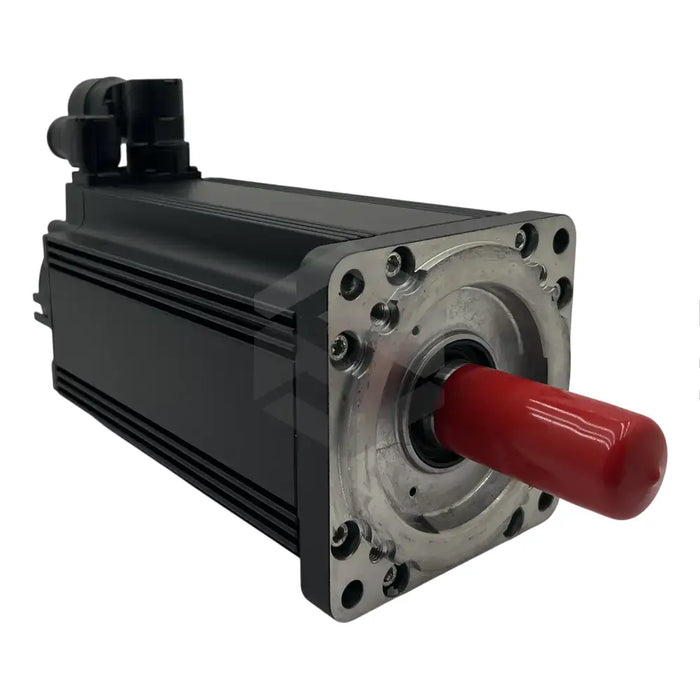

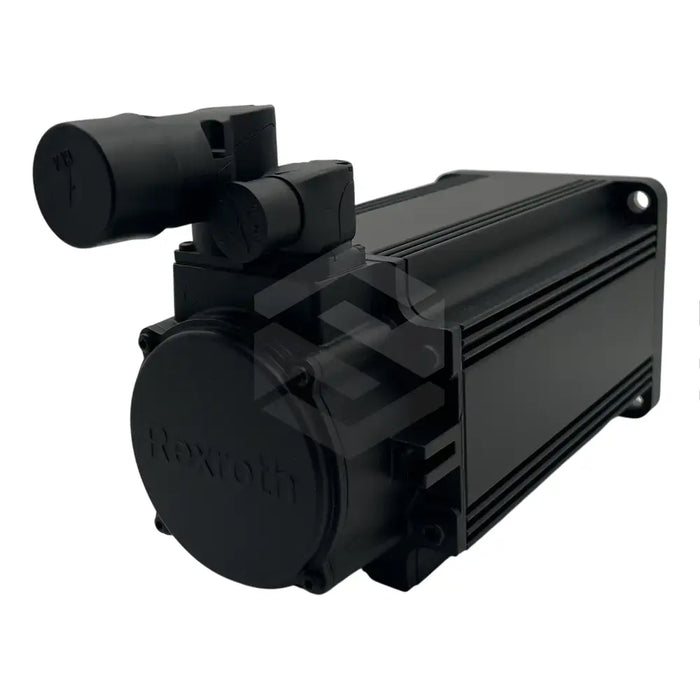

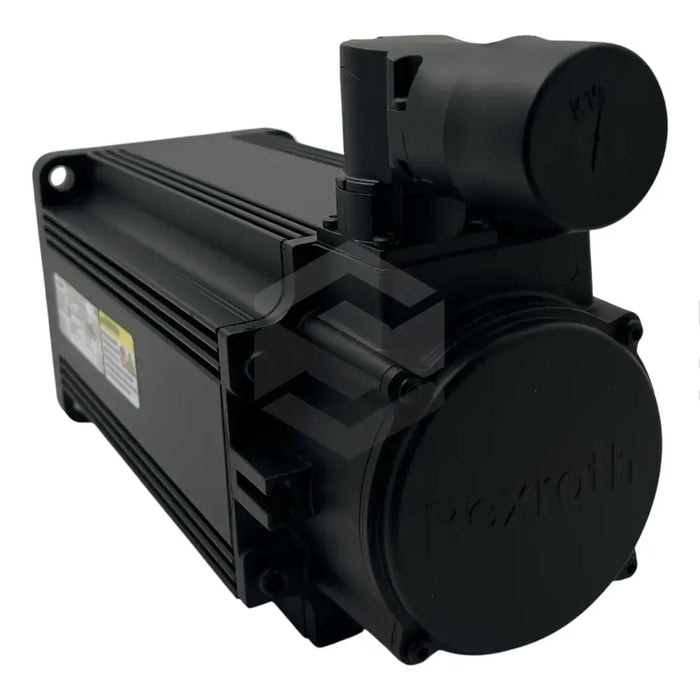

S image of MSK070E-0300-NN-S2-UP0-RNNN

MSK070E-0300-NN-S2-UP0-RNNN

by Bosch Rexroth Indramat
$4,716.51 - $9,502.28
$4,716.51
$4,716.51 - $9,502.28
$4,716.51

In Stock, Ships 1 - 3 Days

The MSK070E-0300-NN-S2-UP0-RNNN is a high-torque servomotor from the renowned Bosch Rexroth Indramat. This synchronous motor from the MSK series offers superb flexibility and smooth operation, and includes improved features. With a stall torque of up to 23 Nm, a continuous current of 15.4 A, and a maximum speed of 5,300 RPM, this is a powerful and ruthlessly efficient motor. Its winding resistance stands at 0.55 ohms and the rotor inertia without brake is measured at 0.00458 kilogram-meter square. The motor can tolerate an ambient temperature range of 0 to 40°C and embodies an IP65 rating, protecting it from dust, dirt and water interference. Its 6-pole configuration, integrated EnDat 2.1 optical feedback encoder delivering 16,777,216 bits of information per revolution, and the option for fan mounting, add to its capabilities. With a rotatable 240-degree connector and a DIN 6885-1 compliant keyway shaft, the MSK070E-0300-NN-S2-UP0-RNNN is a robust, efficient piece of industrial machinery.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servomotor

Model

MSK070E-0300-NN-S2-UP0-RNNN

Continuous Torque At Standstill

23 Nm

Continuous Current At Standstill

15.4 A

Winding At 100K Continuous Torque

25 Nm

Winding At 100K Continuous Current

16.7 A

Maximum Torque

65 Nm

Maximum Current

49.3 A

Maximum Speed

5,300 RPM

Winding Resistance

0.55 ohms

Rotor Inertia (Without Brake)

0.00458 Kilogram-meter squared

Ambient Temperature

0 - 40 degree Celsius

Protection Grade

IP65

Frame Size

70

Frame Length

300

Winding Code

0300

Cooling Mode

Natural Convection (Possibility of Fan Mounting)

Encoder System

Singleturn EnDat 2.1 Optical Feedback

Connection

240-Degree Rotatable Connector

Shaft Type

Shaft with Keyway (according to DIN 6885-1 standard) with a Shaft Sealing Ring

Design

Reduced Axial Run-out and Shaft Run-out (as per DIN42955)
