MSK070E-0450-NN-S1-UP1-NNNN

Original price $5,911.50 - Original price $5,911.50
Original price
$5,911.50
$5,911.50 - $5,911.50
Current price $5,911.50
Available, Shipping Varies
Request a quote

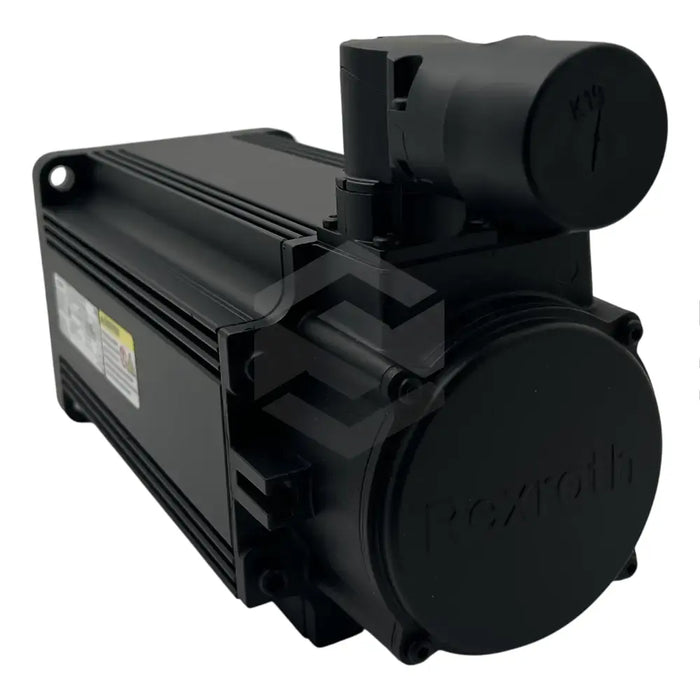

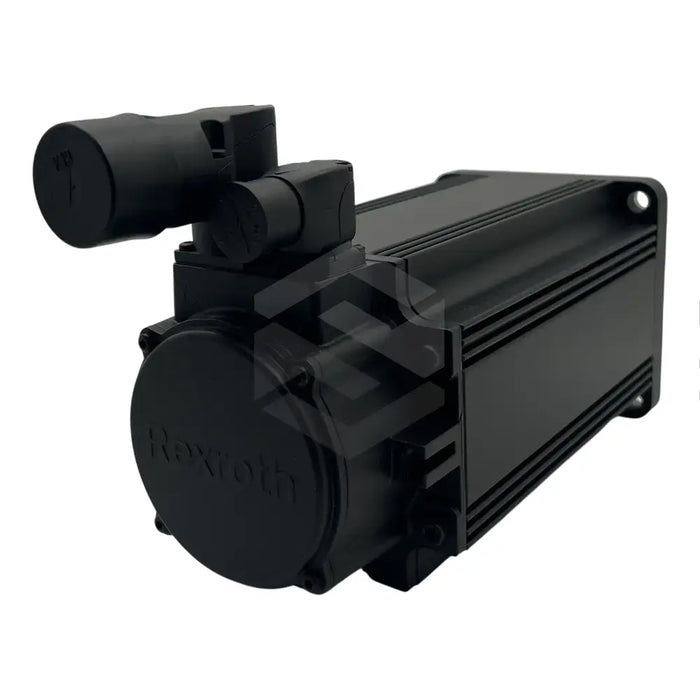

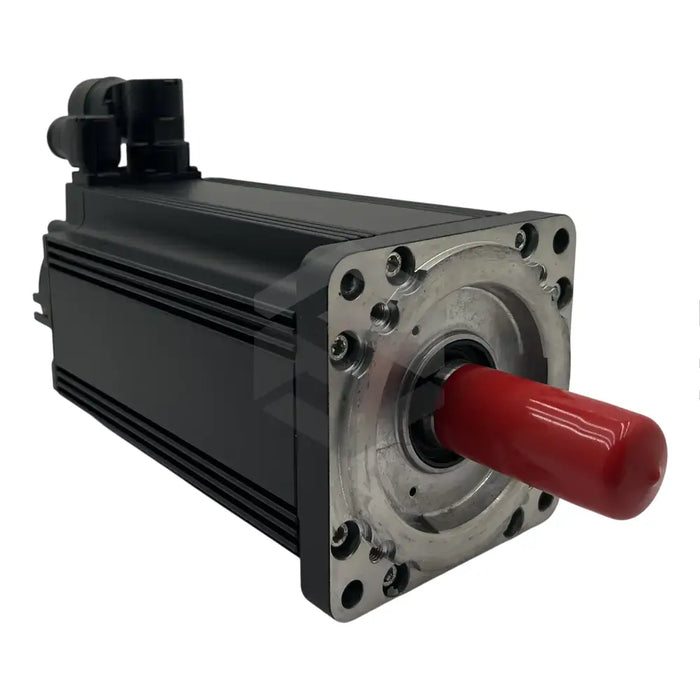

The Bosch Rexroth Indramat made MSK070E-0450-NN-S1-UP1-NNNN is a high-performance synchronous motor intended for numerous applications due to its high torque density. Ideally paired with accessories outlined in the manual, it operates best at altitudes less than 1000 meters above sea level. With an inbuilt brake weighing 1.6 kg, it realizes a constant torque output of 25 Nm at 100 k and 23 Nm at 60 k. The motor functions within temperature ranges of 0 to +40 degrees Celsius during operation and -20 to +80 degrees Celsius during relocation, and adheres to the IP 65 protection standard. Its noise level reaches below 75 decibels at maximum speed of 6000 RPM with a peak torque of 80 Nm at peak current consumption of 57.9 amps. Weighing 16.2 kg, it may serve as an independent servo drive system or a rotary main drive and comes equipped with a rotating electrical plug and torque transmission keys.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MSK070E-0450-NN-S1-UP1-NNNN
  • Elevation Limit: 1000 meters above sea level
  • Weight: 16.2 kilograms
  • Holding Brake Weight: 1.6 kilograms
  • Moment of Inertia: 0.000300 Kg/m^2
  • Connection Period: 130 milliseconds
  • Disconnection Period: 180 milliseconds
  • Torque Output: 25 Nm at 100 k and 23 Nm at 60 k
  • Operating Temperature: 0 to +40 degrees Celsius
  • Relocation Temperature: -20 to +80 degrees Celsius
  • Protection Standard: IP65
  • Thermal Class: 155
  • Noise Level: Less than 75 decibels
  • Maximum Speed: 6000 revolutions per minute
  • Maximum Torque: 80 Nm
  • Peak Current Consumption: 57.9 amps
  • Motor Usage: Rotary main drive, Independent servo drive system
  • Plug: 240-degree rotating electrical plug
  • Output Shaft: With torque transmission keys
