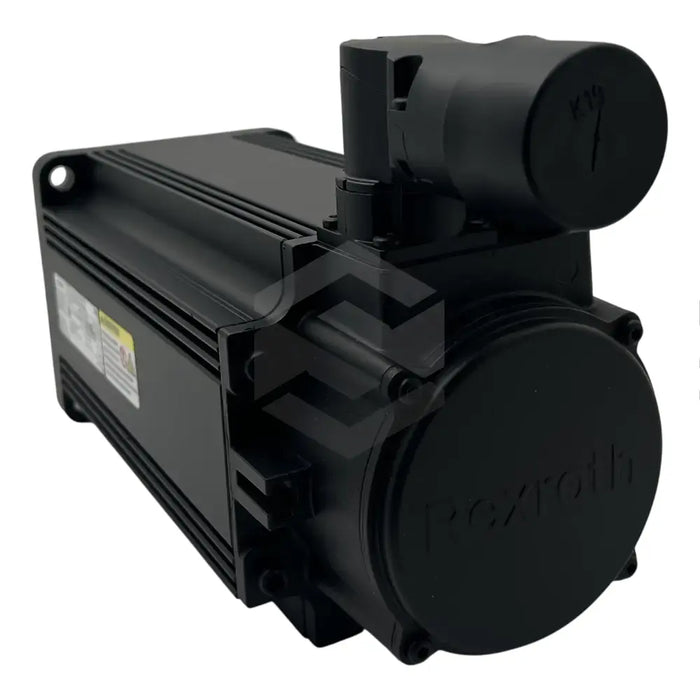

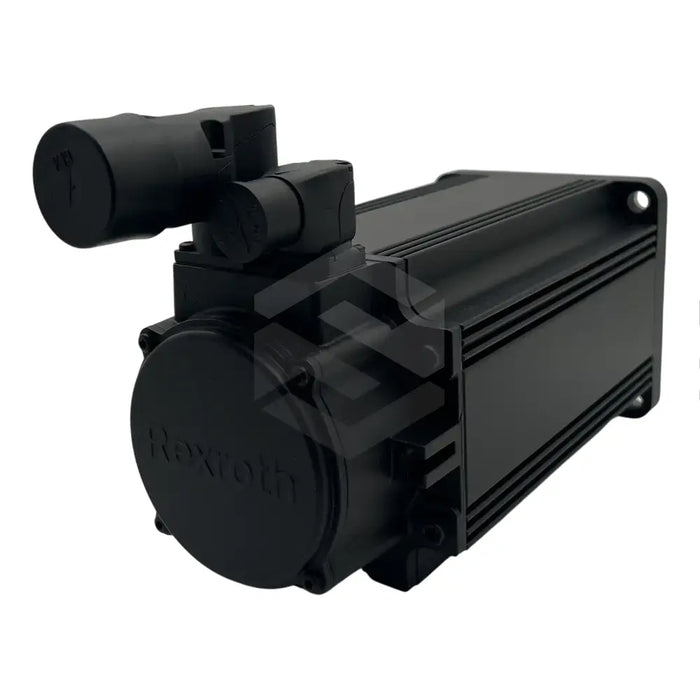

series image of MSK070E-0450-NN-S2-UP1-RNNN

MSK070E-0450-NN-S2-UP1-RNNN

by Bosch Rexroth Indramat
$7,135.65 - $7,135.65
$7,135.65
$7,135.65 - $7,135.65
$7,135.65
Available, Shipping Varies
The MSK070E-0450-NN-S2-UP1-RNNN, an IndraDyn S family motor, is a high-quality product engineered by Bosch Rexroth Indramat, known for manufacturing robust industrial parts, including synchronous motors, drive controllers, inverters, and more. This specific model features a continuous torque output of 25 Nm and uses a current of 21 A at 100 Kelvin. It's built with a sealed IP 65 housing and a 155-degree insulation level, offering protection from dust and water jets. Ideally, this model operates under a relative humidity of less than 90% and at temperatures up to 40°C. The MSK070E-0450-NN-S2-UP1-RNNN, which weighs 16.2 kilograms, includes a key-equipped output shaft and sealing ring. It can reach a maximum rotation speed of 6000 rpm under suitable conditions and can provide maximum torque production of 80 Nm. Moreover, a built-in cooling system manages increased temperatures, and an 'electrically-released' holding brake provides a torque of 23 Nm.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MSK Synchronous Motors
  • Model: MSK070E-0450-NN-S2-UP1-RNNN
  • Continuous Torque at 100K temperature: 25 Nm
  • Continuous Current at 100K temperature: 21 A
  • Winding Inductance at 20°C: 2.7 mH
  • Winding Resistance at 20°C: 0.36 ohms
  • Voltage Constant: 80.6 V/min-1
  • Housing: IP 65
  • Insulation Level: 155-degree
  • Maximum Relative Humidity: 90%
  • Maximum Operating Temperature: +40°C
  • Weight: 16.2 kilograms
  • Maximum Speed: 6000 revolutions per minute
  • Maximum Torque: 80 Nm
  • Continuous Torque at 60K temperature: 23 Nm
  • Continuous Current at 60K temperature: 19.3 A
  • Cooling System: Natural
  • Thermal Time Constant: 32 minutes
  • Holding Brake Torque: 23 Nm
  • Holding Brake Weight: 1.6 kg
  • Holding Brake Inertia: 0.000300 kgm2
  • Holding Brake Release Technique: Electrically-released.
