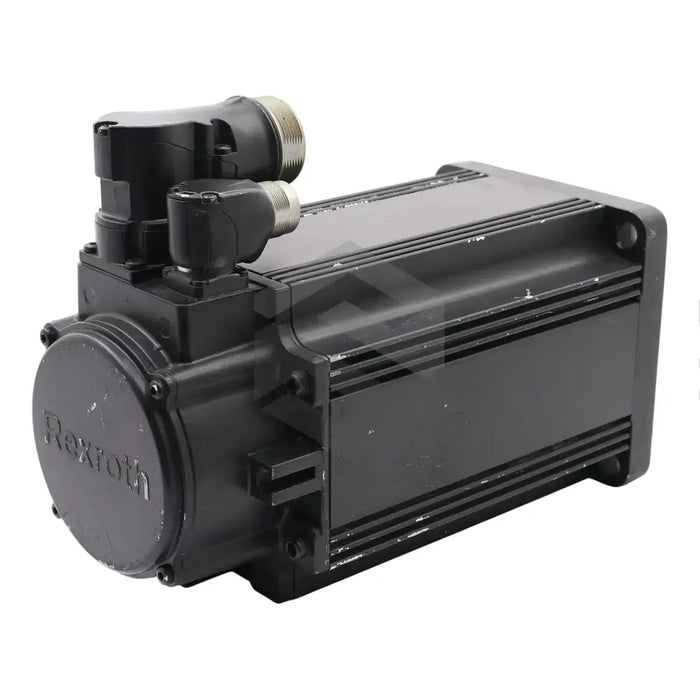

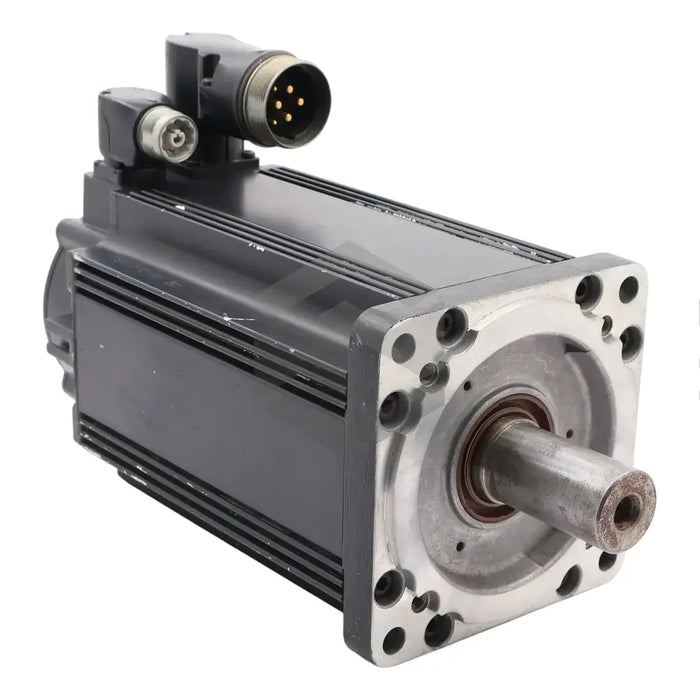

series image of MSK071C-0200-FN-M1-UG0-NNNN

MSK071C-0200-FN-M1-UG0-NNNN

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat product, MSK071C-0200-FN-M1-UG0-NNNN, is a robust synchronous motor with a thermal time constant of 15 minutes. This liquid-cooled unit functions optimally in ambient temperatures between 0-40 degrees Celsius and at altitudes up to 1000 meters. When these conditions are exceeded, output decreases. Weighing in at 13.9kg, it operates at a low noise level of under 75 decibels. Its protective features include an IP65 rating and a 155-insulation class. It has a plain output shaft capable of 3500 RPM, a voltage constant of 155.5V/1000min-1, a discharge capacity of 4.6 nF, and is equipped with four polar pairs. The torque constant is 2.5 Nm/A, the rotor moment of inertia 0.00173 kgm2 and it delivers a maximum torque of 44 Nm and 23.4 A current. Its operating wind resistance is 3.10 ohms and it achieves optimal performance in humidity levels between 5-95%.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MSK071C-0200-FN-M1-UG0-NNNN
  • Thermal Time Constant: 15 minutes
  • Cooling Method: Liquid cooling
  • Optimal Ambient Temperature: 0 to 40 degrees Celsius
  • Optimal Elevation: 0 to 1000 meters above sea level
  • Weight: 13.9 kg
  • Noise Level: Less than 75 decibels
  • Protection Rating: IP65
  • Insulation Rating: 155
  • Recommended Environmental Class: 3K4
  • Output Shaft: Plain
  • Maximum Revolutions per Minute: 3500
  • Rotor Moment of Inertia: 0.00173 kgm2
  • Voltage Constant: 155.5 V/1000min-1
  • Discharge Capacity: 4.6 nF
  • Number of Polar Pairs: 4
  • Torque Constant: 2.50 Nm/A
  • Predicted Max Torque: 44 Nm
  • Predicted Max Current: 23.4 A
  • Winding Resistance: 3.10 ohms
  • Minimum Relative Humidity: 5%
  • Maximum Relative Humidity: 95%
  • Minimum Absolute Humidity: 1 g/m^3
  • Maximum Absolute Humidity: 29 g/m^3
