MSK071C-0200-NN-S1-UG1-NNNN

Original price $4,037.51 - Original price $4,037.51
Original price
$4,037.51
$4,037.51 - $4,037.51
Current price $4,037.51
Available, Shipping Varies

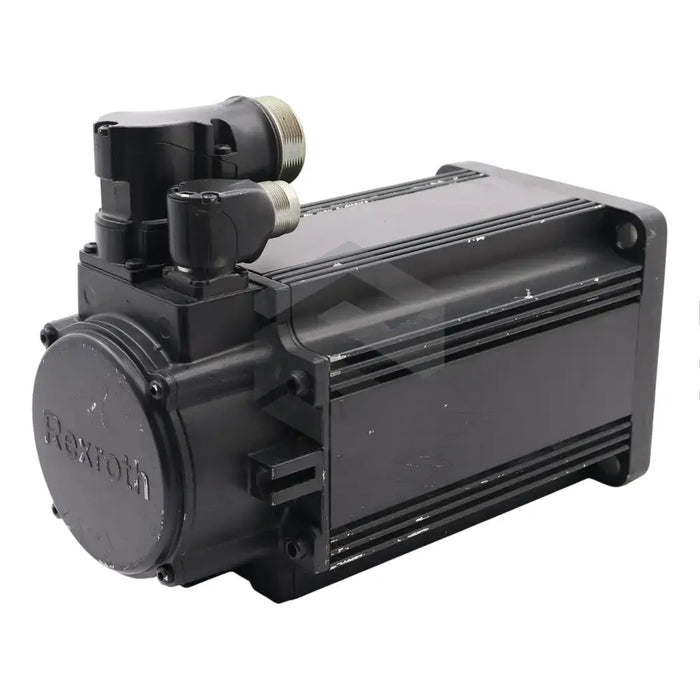

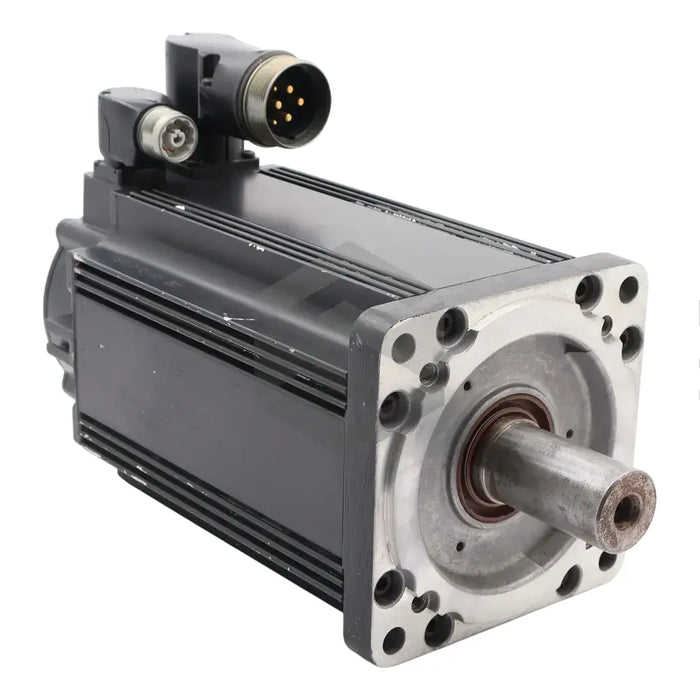

The MSK071C-0200-NN-S1-UG1-NNNN is a synchronous motor from renowned manufacturer Bosch Rexroth Indramat, renowned for their reliable and energy-efficient industrial motors. This product comes equipped with an optical encoder for accurate position detection and contains a single-turn hiperface with 128 increments. With torque values of 44Nm and 18Nm for continuous and maximum settings respectively, it is suitable for high-torque applications. The motor's voltage and torque constants stand at 155.5 V/1000min-1 and 2.5 Nm/A at 20 degrees Celsius. The unit, weighing 13.9 kg, can reach 3500 rotations per minute and operates at temperatures between 0 to 40 degrees Celsius. It cools via natural convection, ensuring a 15-minute thermal time constant, and holds an IP65 rating for its robustness. The MSK071C-0200-NN-S1-UG1-NNNN, part of the IndraDyn S series, also features a 0.00458 kgm2 moment of inertia, a temperature monitoring sensor, a plain shaft with a sealing ring, a rotating electrical plug and a 1.9 kg holding brake.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MSK071C-0200-NN-S1-UG1-NNNN
  • Encoder Type: Optical Encoder
  • Encoder Increments: 128 increments
  • Continuous Torque: 44 Nm
  • Maximum Torque: 18 Nm
  • Voltage Constant at 20 degrees Celsius: 155.5 V/1000min-1
  • Torque Constant at 20 degrees Celsius: 2.5 Nm/A
  • Temperature Range: 0 to 40 degrees Celsius
  • Motor Weight: 13.9 kg
  • Maximum Rotations Per Minute: 3500 RPM
  • Thermal Time Constant: 15 minutes
  • Insulation Class: 155-degree
  • IP Rating: IP65
  • Moment of Inertia: 0.00458 kgm2
  • Shaft Type: Plain Shaft
  • Electrical Plug Rotation: 240 degrees
  • Holding Brake Weight: 1.9 kg
  • Holding Torque: 23 Nm
  • Rated Voltage: 24 V
