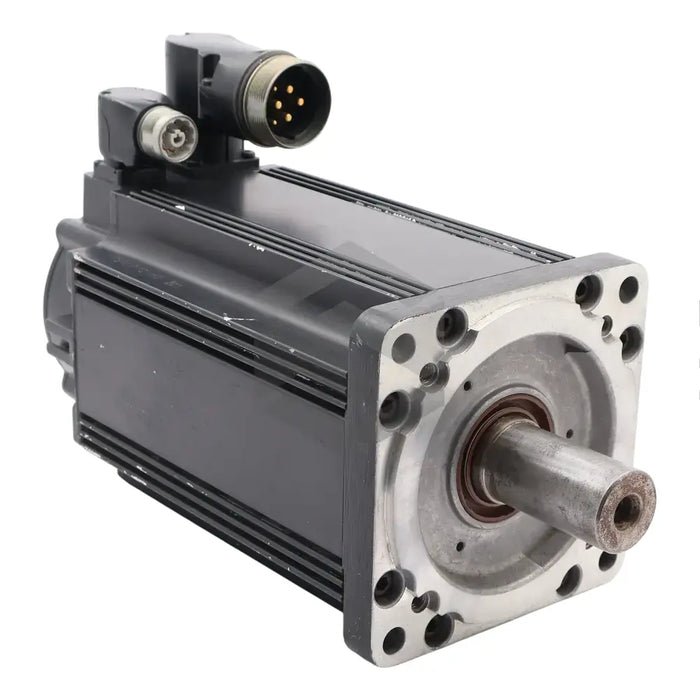

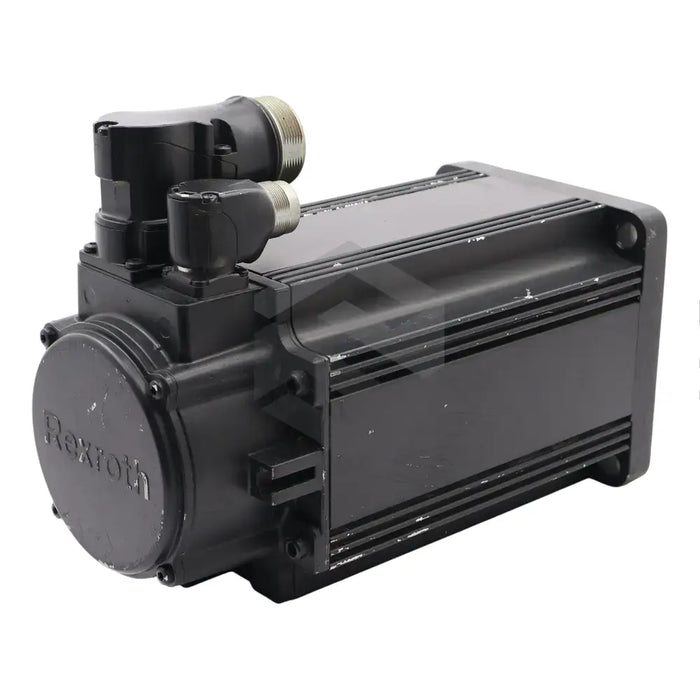

MSK071C-0200-NN-S1-UG2-NNNN

Request a quote
The MSK071C-0200-NN-S1-UG2-NNNN is a high-quality synchronous motor, meticulously manufactured by Bosch Rexroth Indramat. It is engineered to generate a constant current of 18 Nm, with a continuous current of 7.8 A at a stationary position. The motor maintains optimum efficiency by avoiding excessive oscillations and operates reliably within a temperature range of 0 to +40 degrees Celsius. Weighing 16.2 kilograms, the motor includes a 1.9 kg brake that provides a holding torque of 30 Nm. It exhibits a maximum rotational speed of 3500 rpm and a maximum current consumption of 23.4 amps. This model also features four polar pairs and a thermal time constant of 15 minutes, protecting it from overheating. Equipped with a single-turn hiperface encoder and a 240-degree rotating electrical plug, it is designed for use solely with compatible accessories. Its output shaft, adorned with a sealing ring, ensures the safety and longevity of the unit. Professional technician installation is mandatory to ensure correct operation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MSK071C-0200-NN-S1-UG2-NNNN
  • Type: Synchronous Motor
  • Constant Current: 18 Nm
  • Continuous Current: 7.8 A
  • Operating Temperature Range: 0 to +40 degree Celsius
  • Holding Brake Weight: 1.9 kg
  • Holding Torque: 30 Nm
  • Holding Brake Current Consumption: 0.94 A
  • Torque Constant: 2.50 Nm/A
  • Winding Resistance: 3.10 ohms
  • Maximum Rotational Speed: 3500 rpm
  • Maximum Current Intake: 23.4 A
  • Motor Weight: 16.2 kg
  • Torque rating: 44 Nm
  • Encoder Type: Singleturn Hiperface Encoder
  • Polar Pairs: 4
  • Thermal Time Constant: 15 minutes
  • Voltage Constant: 155.5 V/1000min-1
  • Electrical Plug Rotation: 240 degree
  • Output Shaft Type: Plain with Sealing Ring
