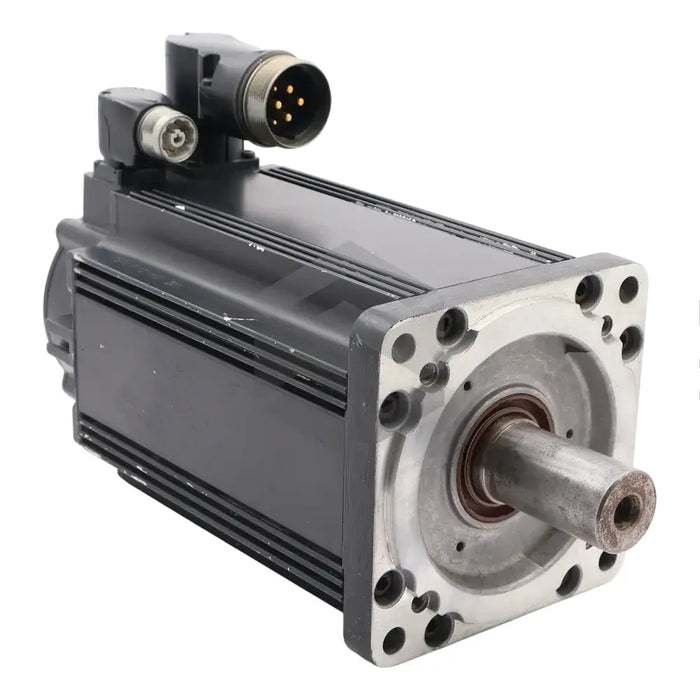

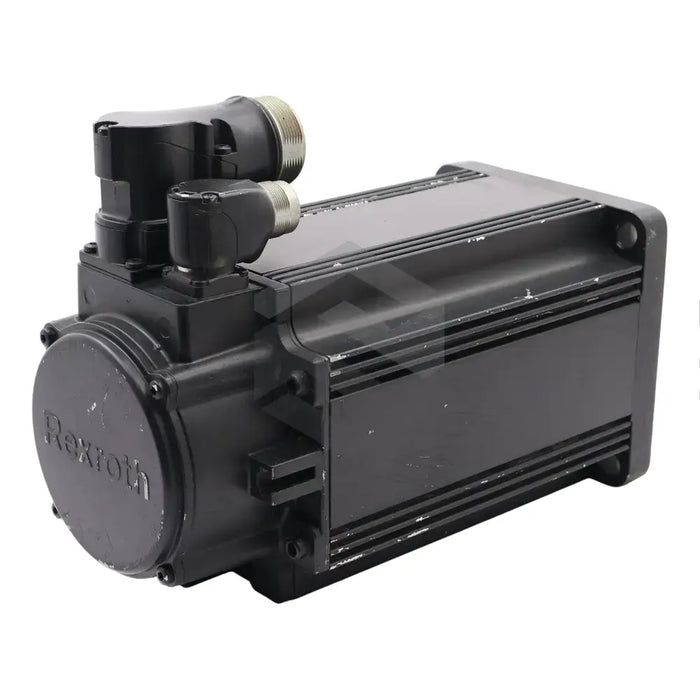

series image of MSK071C-0300-FN-M2-UG2-RNNK

MSK071C-0300-FN-M2-UG2-RNNK

by Bosch Rexroth Indramat
Request a quote
The MSK071C-0300-FN-M2-UG2-RNNK is a state-of-the-art synchronous motor produced by Bosch Rexroth Indramat. This versatile motor, part of the MSK series, is designed primarily for use in a range of applications including machine tools, paper processing machines, and robotics. Compact and featuring high torque density and dynamics, it delivers superior precision. The motor, characterized by a maximum speed of 5,000 rpm, comes with an integrated multiturn absolute encoder with the EnDat 2.1 interface, offering a system accuracy of ±20 angular seconds. Its maintenance-free design ensures continuous operations. Further specifications include an output shaft with shaft sealing ring and a liquid-cooled form factor. The housing features a black 2K epoxy resin coating resistant to a variety of substances. It is designed to operate optimally within a temperature range of 0°-40°C and a maximum relative humidity of 95%.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MSK Synchronous Motor Series
  • Product Model: MSK071C-0300-FN-M2-UG2-RNNK
  • Application: Rotary main and servo drive motors
  • Main Usage Industries: Machine tools, printing and paper processing machines, food and packaging machines, metal forming machines, robotics
  • Pole Pairs: 4
  • Maximum Speed: 5000 rpm
  • Motor Type: Maintenance-free
  • Encoder Type: Multiturn absolute with EnDat 2.1 interface
  • System Accuracy of Encoder: ±20 angular seconds
  • Maximum Torque: 44.0Nm
  • Moment of Inertia: 0.00173kgm2
  • Output Shaft Type: Plain with shaft sealing ring
  • Holding Brake Principle: Electrically-released
  • Holding Torque: 30Nm
  • Cooling Method: Liquid
  • Housing Varnish: Black (RAL9005) 2K epoxy resin coating
  • Varnish Resistance: Dilute acids/alkaline solutions, water, seawater, sewage, current mineral oils, organic solvents, hydraulic oil
  • Operating Ambient Temperature Range: 0°C and 40°C
  • Maximum Relative Humidity: 95%
