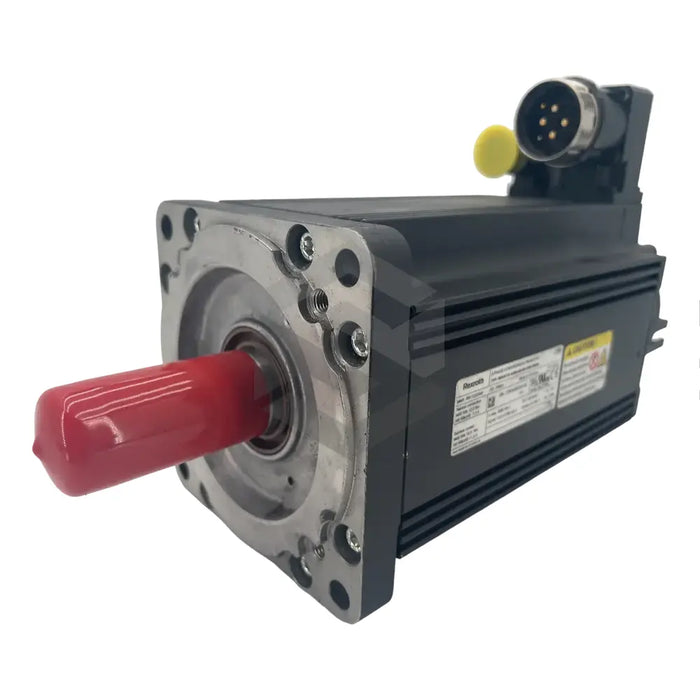

product Main (Front Left) image of MSK071C-0300-NN-M1-BG0-NNAN

MSK071C-0300-NN-M1-BG0-NNAN

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat MSK071C-0300-NN-M1-BG0-NNAN is a synchronous servomotor featuring a size code of 071. It requires tightly-fastened connectors for safe operation and is grounded via a motor cable with a fixed positioned conductor. Additional features linked to device safety include a need for housing corrosion protection and an acceptance test pre-system startup. Under overloading circumstances, the servomotor can reach high housing temperatures. Designed without leakproof housing to accommodate temperature fluctuation, this UL Listed and CSA Certified motor can operate at a maximum temperature of 55°C with derated data. A distinctive highlight is its multiturn absolute encoder with a Hiperface interface that retains the absolute axis position post-motor switch off. While the motor is equipped with circular connectors for power and encoder connections, it only supports connection in a de-energized state. As per DIN EN 60721-3-3 specifications, the device withstands a temperature change rate of 0.5°C/min and offers an IP 65 degree of protection.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: MSK071C-0300-NN-M1-BG0-NNAN
  • Size Code: 071
  • Connectors: Securely locked or tightened during operation
  • Grounding: Via motor cable
  • Housing Material: Corrosion resistant against aggressive materials
  • Acceptance Test: Required before each system startup
  • Maximum Overload Temperature: High
  • UL Listed: Yes
  • CSA Certified: Yes
  • Maximum Temperature: 55°C with derated data
  • Encoder Type: Multiturn absolute encoder with Hiperface interface
  • Manufacturing Tolerance: +/- %
  • Housing Type: Not leakproof due to temperature fluctuations
  • Thermal Coupling: Changes if transmissions are attached
  • Electrical Connections: Circular connectors for power and encoder
  • Flange Socket: Adjustable orientation
  • State During Connection: De-energized
  • Load Factors: Considered if ambient operating conditions are exceeded
  • Temperature Change Rate: 0.5°C/min (DIN EN 60721-3-3)
  • Degree of Protection: IP 65
