MSK071C-0300-NN-M1-UG2-NNNN

Request a quote

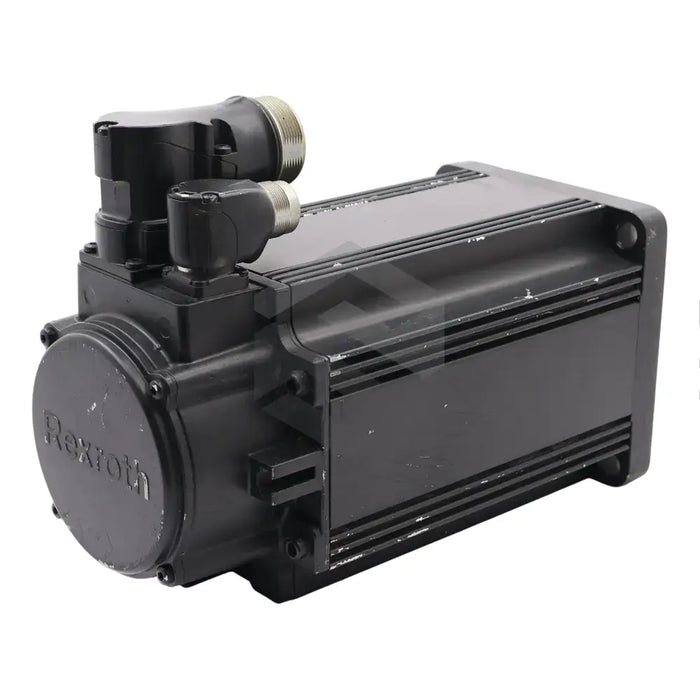

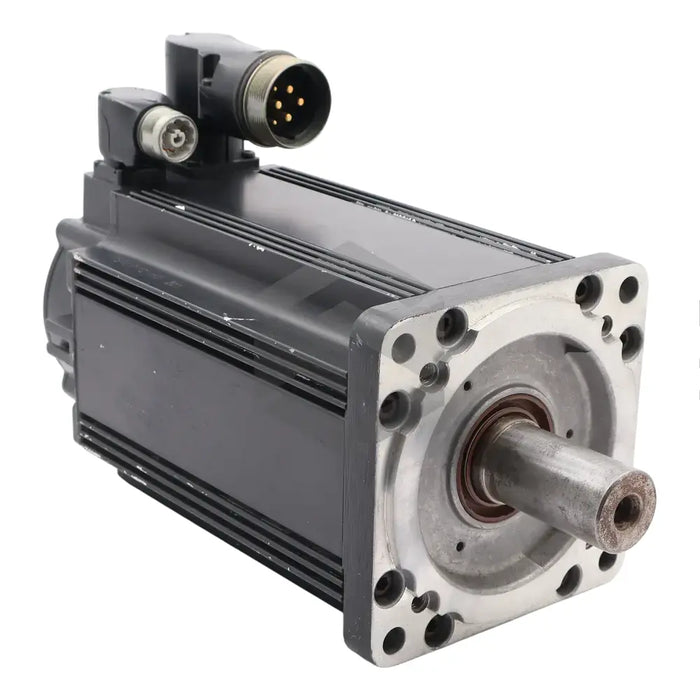

The Bosch Rexroth Indramat's MSK071C-0300-NN-M1-UG2-NNNN is a high-performance synchronous servo motor enclosed in a sealed housing for IP65-rated protection, making it suitable for challenging environments. Its cooling relies on ample ventilation to maintain ambient temperatures between 0 and 40 degrees Celsius, though a liquid-cooled variant exists for heavier workloads. Integrated features include an optical encoder supporting the Hiperface protocol, a 30 Nm rated electrically releasing holding brake, and rotatable connectors. Offered with a standard housing design, other models are tailored to varying client needs. This flange-mounted motor, which weighs 15.8 kg (including the brake), can achieve a maximum speed of 5000 RPM. Operating within thermal class 155, the motor housing has a length of 272 mm, a centering diameter of 130 mm, and a flange size of 140 mm.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MSK071C-0300-NN-M1-UG2-NNNN
  • Product Type: Synchronous Servo Motor
  • Housing Type: Sealed
  • Shaft Type: Plain with sealing ring
  • Protection Rating: IP65
  • Cooling Method: Convection (optional liquid cooling)
  • Ambient Temperature: 0 to 40 degrees Celsius
  • Encoder Type: Multiturn Absolute, 128 signal periods
  • Encoder Protocol: Hiperface
  • Brake Type: Electrically Releasing
  • Holding Torque: 30 Nm
  • Rotatable Connectors: 240 degrees in either direction
  • Housing Design: Standard
  • Maximum Speed: 5000 RPM
  • Weight: 15.8 Kilograms
  • Thermal Class: 155
  • Motor Length: 272 millimeters
  • Centering Diameter: 130 millimeters
  • Mounting Type: Flange
  • Flange Size: 140 millimeters
