series image of MSK071C-0300-NN-M2-UG0-RNNN

MSK071C-0300-NN-M2-UG0-RNNN

by Bosch Rexroth Indramat
Request a quote

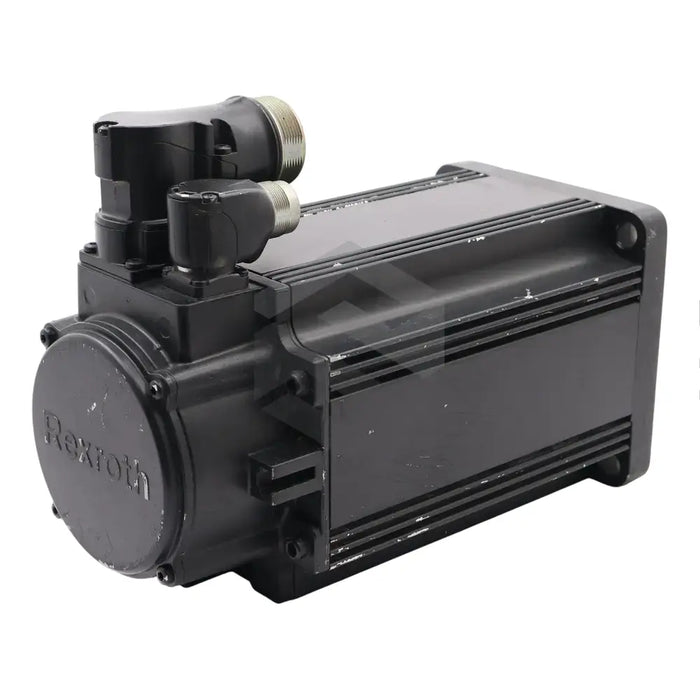

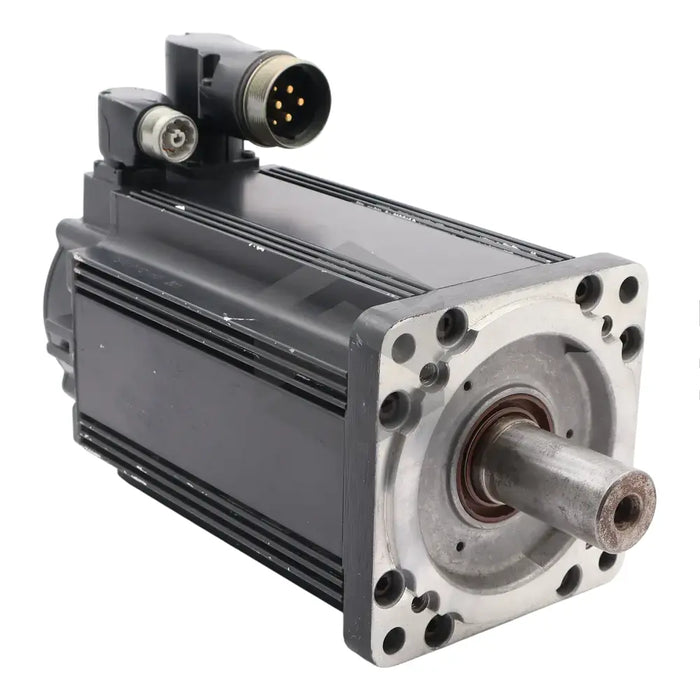

The MSK071C-0300-NN-M2-UG0-RNNN is a Bosch Rexroth Indramat industrial synchronous servo motor, part of the MSK series reputable for its wide performance range and refined sizing. The high torque density of MSK servo motors allows a compact build with a maximum torque of up to 631 Nm. This model comes with a multiturn optical encoder rated for 2048 signal periods, dual 240-degree rotatable connectors for the power and feedback cables, and a specially designed housing for increased concentricity and run-out based on DIN 42955. This unit does not include a holding brake but one can be ordered separately if needed. Preferred cooling method is natural convection, though surface cooling can be utilized for higher loads. Torques vary depending on overtemperature and cooling method, ranging from 12 Nm to 18 Nm. Its approximate shipping weight is 13.9 kg and sports an IP65 environmental protection rating.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Industrial Servo Motor
  • Model: MSK071C-0300-NN-M2-UG0-RNNN
  • Motor Type: Synchronous
  • Control: Compatible Drive Controller
  • Series: MSK
  • Performance Spectrum: Wide
  • Size Gradation: Fine
  • Maximum Torque: 631 Nm
  • Encoder System: Available with low, medium or high resolution
  • Encoder Variant: Single-turn or multi-turn versions
  • Encoder Type: Multiturn Optical Encoder
  • Signal Periods: 2048
  • Special Features: Rotatable Connectors, Plain shaft with seal, Housing designed for increased concentricity and run out according to DIN 42955
  • Number of Connectors: Two
  • Connector Type : 240-degree rotatable
  • Brake: Supplied without holding brake, Optional
  • Cooling Capabilities: Natural Convection, Surface Cooling for Higher Loads
  • Continuous Torque with Natural Convection at 60K overtemperature: 12 Nm
  • Continuous Torque with Natural Convection at 100K overtemperature: 14 Nm
  • Continuous Torque with Surface Cooling: 18 Nm
  • Shipping Weight: Approximately 13.9 Kilograms
  • Environmental Protection Rating: IP65.
