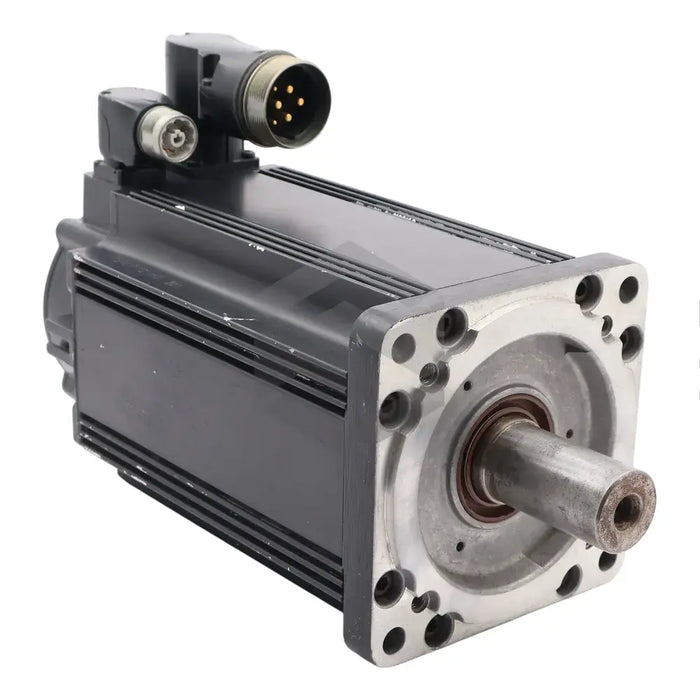

C image of MSK071C-0450-FN-M1-UG0-NNNN | Front Right

MSK071C-0450-FN-M1-UG0-NNNN

by Bosch Rexroth Indramat
$6,180.61 - $11,424.60
$6,180.61
$6,180.61 - $11,424.60
$6,180.61

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MSK071C-0450-FN-M1-UG0-NNNN is a liquid-cooled, synchronous servo motor from the MSK series. The motor's frame size of 071 corresponds with its dimensions and power rating, while winding code 0450 indicates the rated speed. Its housing follows a standard design and uses a plain shaft with a seal to protect motor bearings from environmental pollution. Notably, this model can't be fitted with a cooling fan, and the motor does not come with a holding brake. The motor's key technical data include continuous torque at standstill of 22.8 Nm, continuous current at standstill of 16.9 Amps, maximum torque of 44 Nm, and a maximum current of 40.1 Amps. It has a maximum speed of 5800 RPM and a thermal time constant of 3 minutes. Other features include a 128-signal period rated optical multi-turn encoder, 240-degree rotatable connectors, and die-cast aluminum coolant duct. The protection class is IP65 and the thermal class is 155.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MSK071C-0450-FN-M1-UG0-NNNN

Product Series

MSK series

Housing Design

Standard

Motor Frame Size

071

Frame Length Code

C

Winding Code

0450

Cooling Method

Liquid

Shaft Type

Plain shaft with frontal centering hold according to DUN 332, part 2

Holding Brake

Not included

Continuous Torque at Standstill

22.8 Nm

Continuous Current at Standstill

16.9 Amps

Maximum Torque

44 Nm

Maximum Current

40.1 Amps

Pole Pairs

4

Thermal Time Constant

3 minutes

Maximum Speed

5800 RPM

Motor Mass

13.9 kilograms

Heat Loss

0.75 kilowatts

Coolant Temperature Range

10 to 40 degrees Celsius

Required Coolant Flow Rate

1.1 liters/minute

Maximum Permissible Inlet Pressure

6 bar

Coolant Duct Material

Die-cast aluminum

Coolant Duct Volume

0.04 liters

Encoder Type

Optical multi-turn with 128 signal periods

Motor Connectors

240-degree rotatable

Protection Class

IP65

Thermal Class

155
