MSK071D-0200-NN-M1-UP0-NNNN

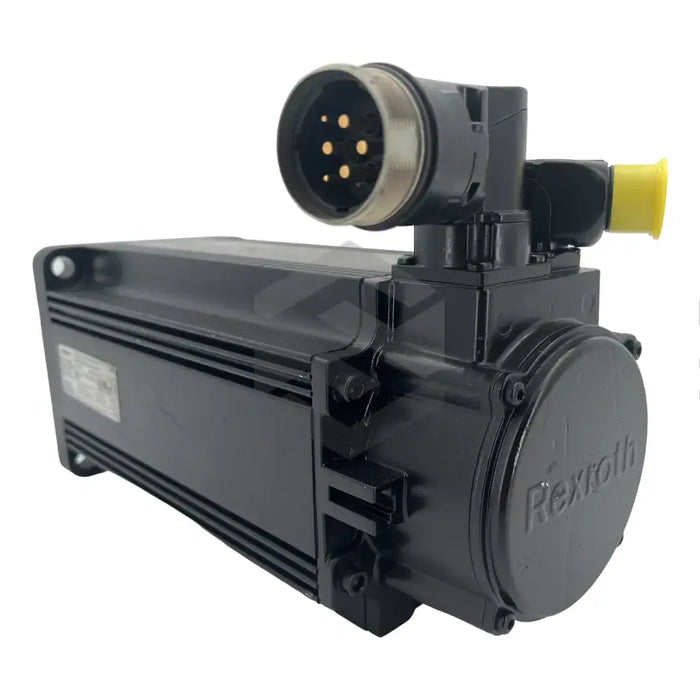

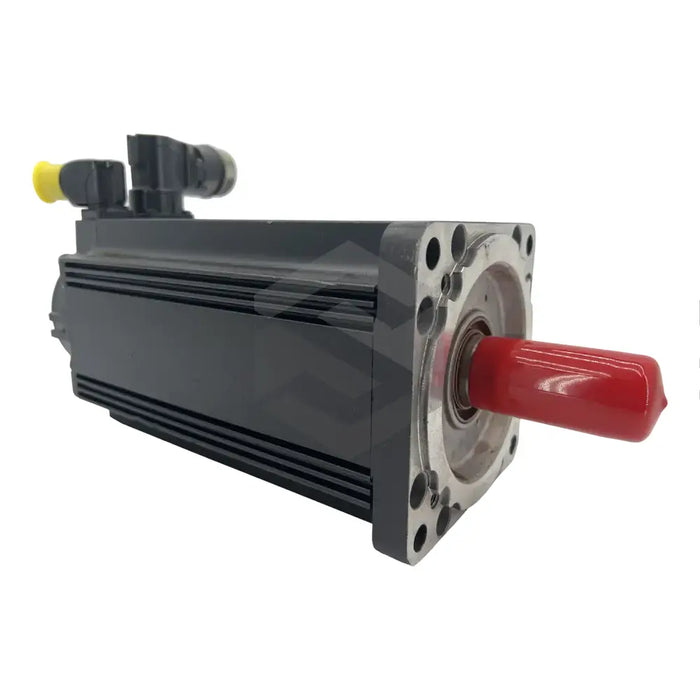

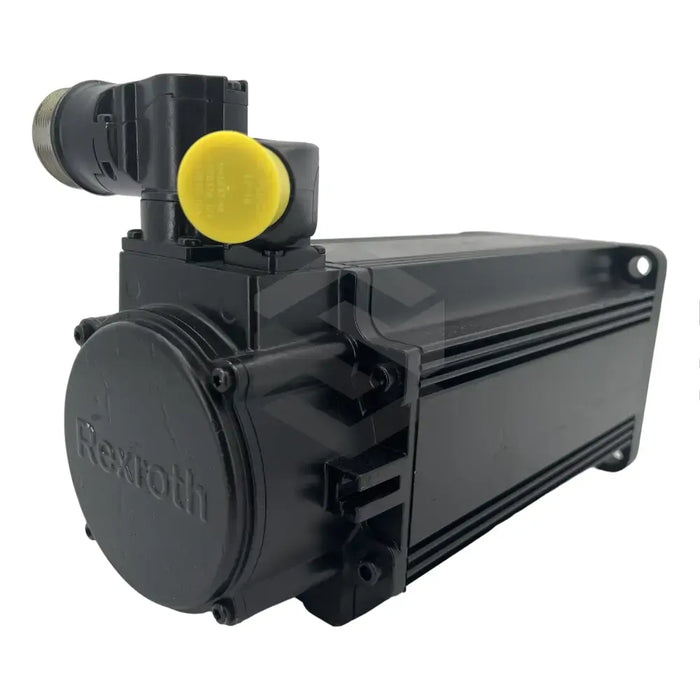

The MSK071D-0200-NN-M1-UP0-NNNN, produced by Bosch Rexroth Indramat, is a MSK synchronous motor made for industrial applications like packing machines, food-processing machines, and machine tools. Equipped with a multiturn encoder, a shaft with a keyway and sealing ring, and 240-degree rotatable connectors, the motor is controlled by a programmable drive controller. While it lacks an integral holding brake, compatible brakes rated for 23 Nm and 30 Nm can be added. Operating through natural convection, the motor's ambient temperature range is 0 to 40 degrees Celsius. Key specifications include a continuous torque rating of 17.5 Nm, a continuous current rating of 7.3 Amps, and a rotor inertia of 0.00230 kg m2. The unit's mechanical dimensions consist of a 312mm length, a 130mm centering diameter, and a 140mm flange size. The sound pressure produced remains under 75 dB.
