MSK071D-0200-NN-M2-UP1-RNNN

Request a quote

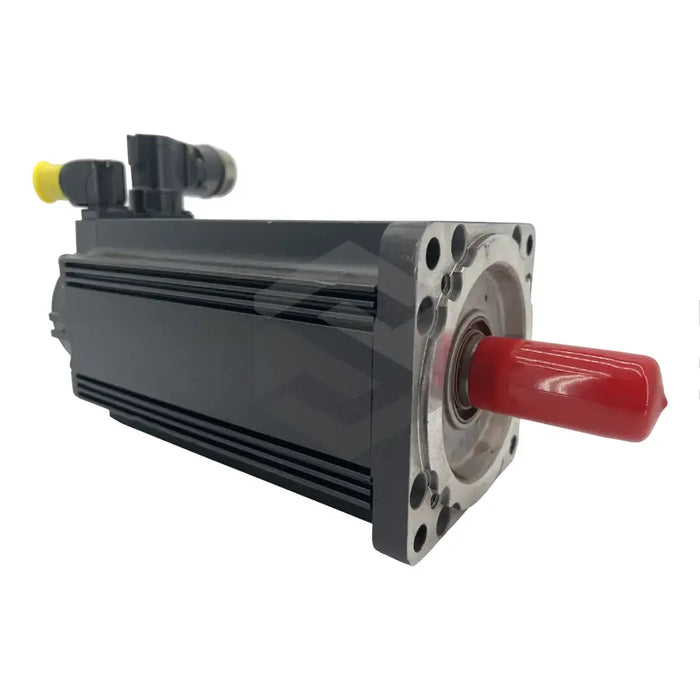

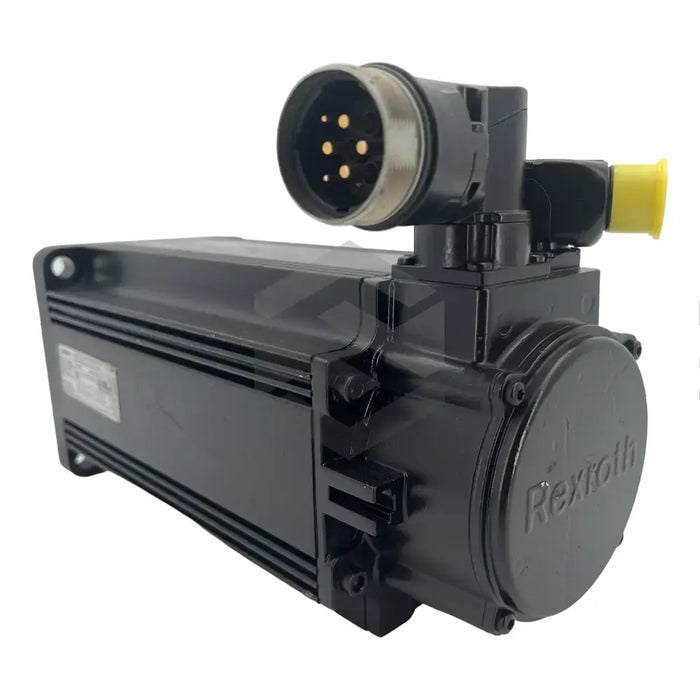

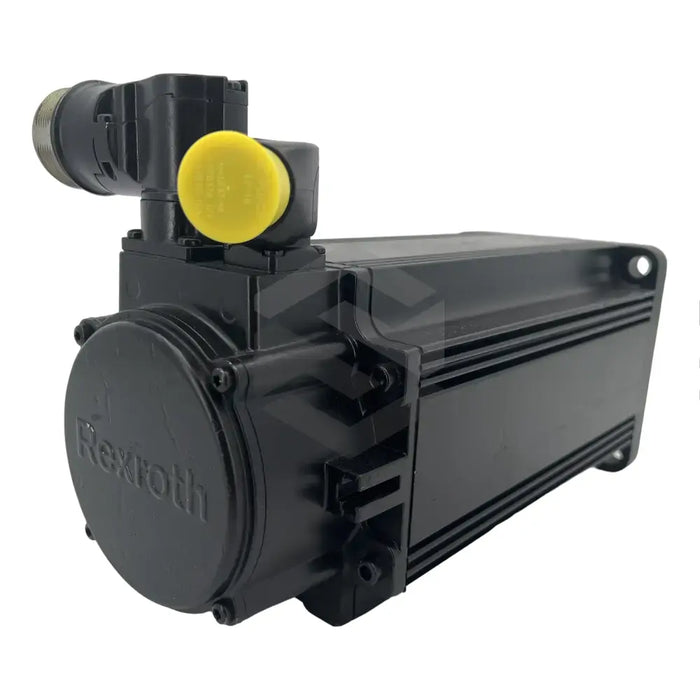

The MSK071D-0200-NN-M2-UP1-RNNN is a sophisticated synchronous servo motor created by Bosch Rexroth Indramat, featuring an array of integrated elements. Key features include a shaft with a sealing ring and keyway, a holding brake, and a multiturn encoder. The encoder, an optical device with an EnDat 2.1 interface supporting 2048 signal periods, uses a supply voltage ranging from 3.6 to 14 Volts DC whilst the brake is rated for 23 Nm at 24 Volts DC. The motor presents excellent performance specifications and cools naturally. Designed for a 0-40 degrees Celsius ambient temperature range, it delivers a continuous stall torque of 17.5 Nm and peak torque of 66 Nm. The servo motor boasts a black matte finish with 240-degree rotatable power/feedback connectors, and weighs in at 18 kilograms. The MSK071D-0200-NN-M2-UP1-RNNN conforms to EN 0034-1 protection class IP65, ensuring complete protection from dust and low-pressure water jets. For best results, qualified personnel should handle installation using Bosch-approved spare parts.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MSK
  • Style: Synchronous Servo Motor
  • Features: Shaft with sealing ring and keyway, Multiturn Encoder, Holding Brake
  • Encoder: Optical Device with EnDat 2.1
  • Encoder Current Consumption: 250 milliamps
  • Encoder Supply Voltage: 3.6 to 14 Volts DC
  • Brake Spec: 23 Nm at 24 Volts DC
  • Brake Current Draw: 0.79 Amps
  • Holding Brake Connect time: 35 milliseconds
  • Brake Disconnect Time: 180 Milliseconds
  • Concentricity and Run-Out: DIN 42955 Standard
  • Cooling Method: Natural Convection
  • Ambient Temperature Range: 0 to 40 degrees Celsius
  • Continuous Stall Torque: 17.5 Nm
  • Continuous Stall Current: 9.1 Amps
  • Peak Torque: 66 Nm
  • Peak Current: 32.8 Amps
  • Thermal Time Constant: 54 minutes
  • Maximum Speed: 3200 RPM
  • Weight: 18 kilograms
  • Protection Class: IP65
  • Housing: Matte Black
  • Power/Feedback Connectors: 240-degree Rotatable
  • Installation Requirement: Qualified and Trained Personnel
  • Spare Parts: Approved by Bosch
