MSK071E-0300-NN-M1-UG1-NNNN

Original price $7,000.00 - Original price $7,000.00
Original price
$7,000.00
$7,000.00 - $7,000.00
Current price $7,000.00
Available, Shipping Varies
Request a quote

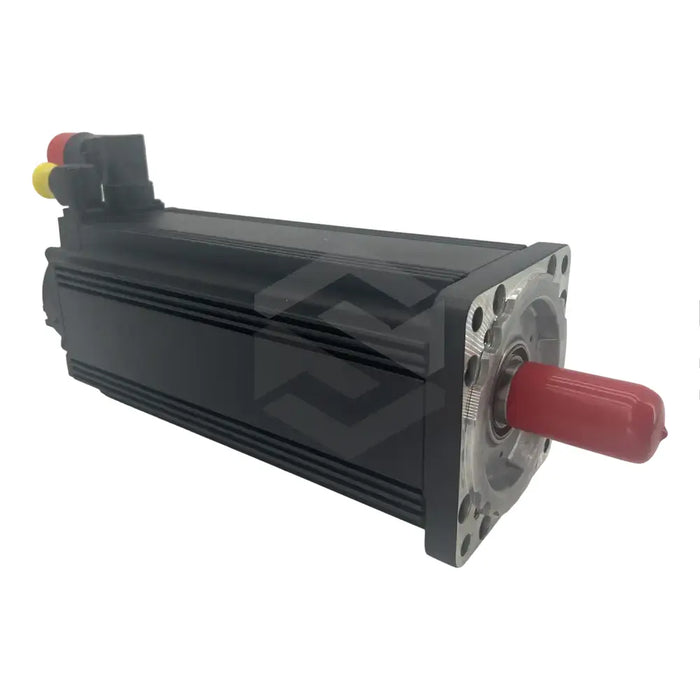

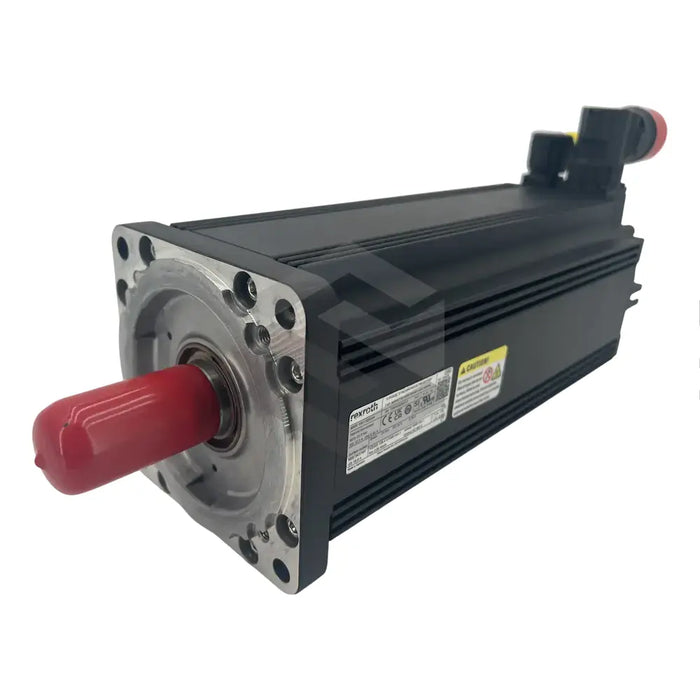

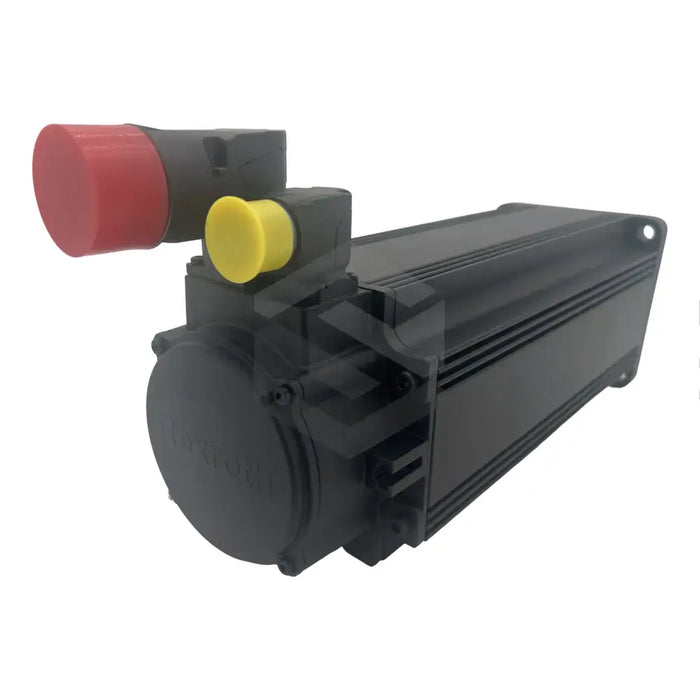

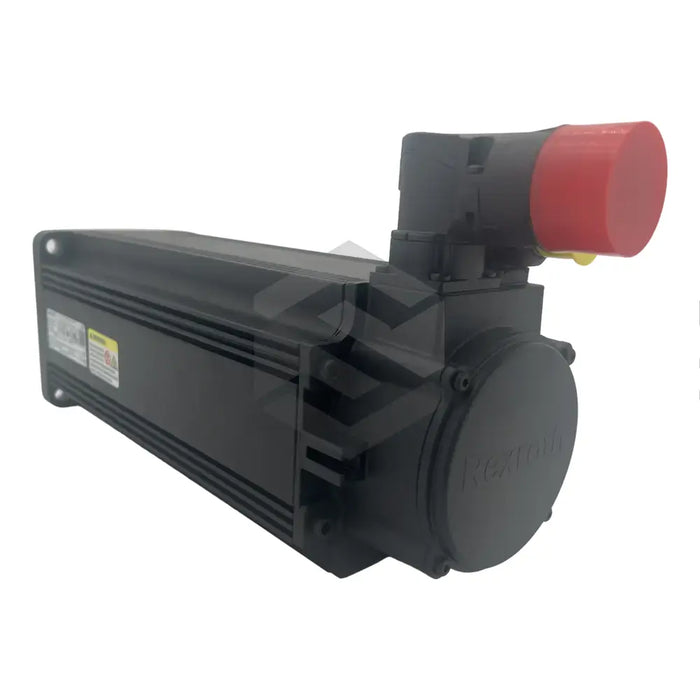

The Bosch Rexroth Electrical Rotor drive MSK071E-0300-NN-M1-UG1-NNNN combines high-performance, energy efficiency, and excellent operational parameters. Featuring a plain shaft with a shaft sealing ring, it has a holding brake for axle immobilization when the system is switched off. Working speed torque is 23.0Nm, with a current of 12.5A. The drive's maximum short-term branch current is 56.3A, while the standing torque and current are 20Nm and 12.6A respectively. This four-poled rotor drive displays an insulation class EN 60034-1 F, and functions effectively at ambient temperatures up to 40°C. The advanced rotor design ensures a moment of inertia of 0.00290 kg*m2 without brakes, voltage constant of 126.4V/min and a winding inductivity of 6.200mH. The rotor drive reaches a top speed of 4200/min and emits noise less than 75dB[A]. With a thermal constant rated at 19.8min and a winding resistance of 0.79Ohms at 20°C, this product promises a stellar performance.
30 Day Warranty
Technical Specifications
  • Product Model: MSK071E-0300-NN-M1-UG1-NNNN 60K
  • Speed Torque: 23.0Nm
  • Current: 12.5A
  • Shaft: Plain with sealing ring
  • Holding Brake: 23Nm
  • Noise Emission: Less than 75dB[A]
  • Voltage: 126.4V/min
  • Winding Resistance: 0.79 Ohms
  • Environment Temperature: 20°C
  • Moment of Inertia: 0.00290kg*m2
  • Thermal Constant: 19.8min
  • Maximum Speed: 4200/min
  • Insulation Class: EN 60034-1 F
  • Winding Inductivity: 6,200mH
  • Ambient Temperature: Up to 40°C
  • Coolant Inlet Temperature: Up to 40°C
  • Poles: 4
  • Permanent Current: Enables up to 56.3A of short-term branch current.
