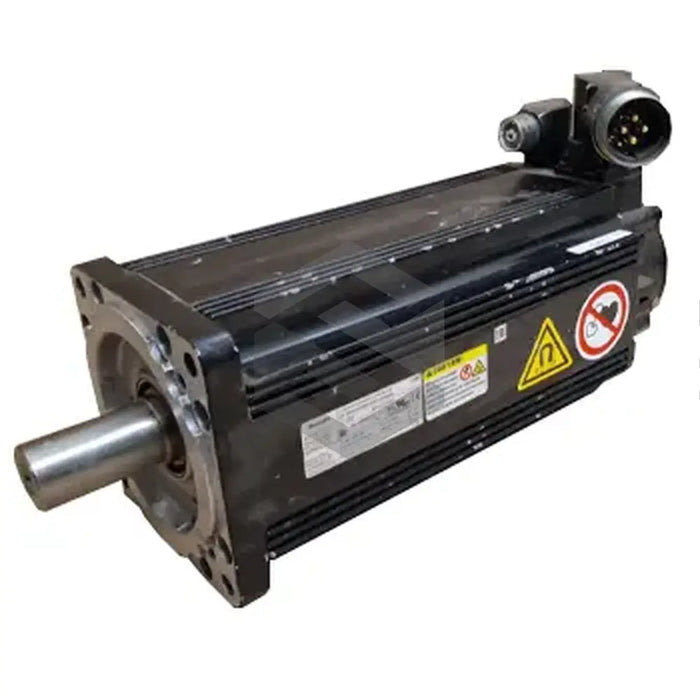

The Bosch Rexroth Indramat MSK071E-0450-NN-M1-AG2-NNAN is renowned for its exceptional quality, durability, and functionality as both a primary and servo drive system. This synchronous motor is capable of 6000 RPM and has a resistance of 0.32 ohms and inductance of 2.600 mH. The quiet, efficient operation of the model maintains a noise level below 75 dB. The model also includes a sealing ring and a smooth plain shaft for superior torque transfer. It employs a multi-turn hiperface optical encoder for precise rotor action monitoring. In surface cooling mode, the motor offers 34.5 Newton-meters of continuous torque using 30 amperes of constant current and has a thermal time constant of 19.8 minutes. It operates at a maximum temperature of +40 degrees Celsius, drawing an amperage of up to 90.1 A and providing a maximum torque of 84 Nm. With a compact design and a weight of 23.5 kg, this model is efficiently transportable and versatile. Its impressive attributes include a 40-micron primary coating thickness and a strong insulating layer that protects from overheating. It is sealed to an IP65 water resistance rating.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MSK071E-0450-NN-M1-AG2-NNAN
  • Functionality: Rotary main and servo drive
  • Revolution: 6000 rpm
  • Resistance: 0.32 ohms
  • Inductance: 2.600 mH
  • Noise Level: 75 dB
  • Shaft Type: Smooth plain
  • Sealing: Sealing ring
  • Encoder: Multi-turn hiperface optical
  • Continuous Torque (surface cooling): 34.5 Nm
  • Constant Current (surface cooling): 30 A
  • Thermal Time Constant: 19.8 minutes
  • Maximum Operating Temperature: +40 degrees Celsius
  • Maximum Amperage Draw: 90.1 A
  • Maximum Torque: 84 Nm
  • Continuous Torque (100 K): 28 Nm
  • Constant Current (100 K): 24.4 A
  • Holding Brake: Yes
  • Holding Brake Torque: 30 Nm
  • Holding Brake Mass: 1.6 kg
  • Water Resistance Rating: IP65
  • Power Connector Position: A-side of housing
  • Weight: 23.5 kg
  • Coating Thickness: 40 microns
  • Insulating Value: 155
  • Continuous Torque (60 K): 23 Nm
  • Constant Current (60 K): 20 A
  • Cooling System: Liquid cooling
