MSK075E-0200-NN-M2-UG1-RNNN

Request a quote

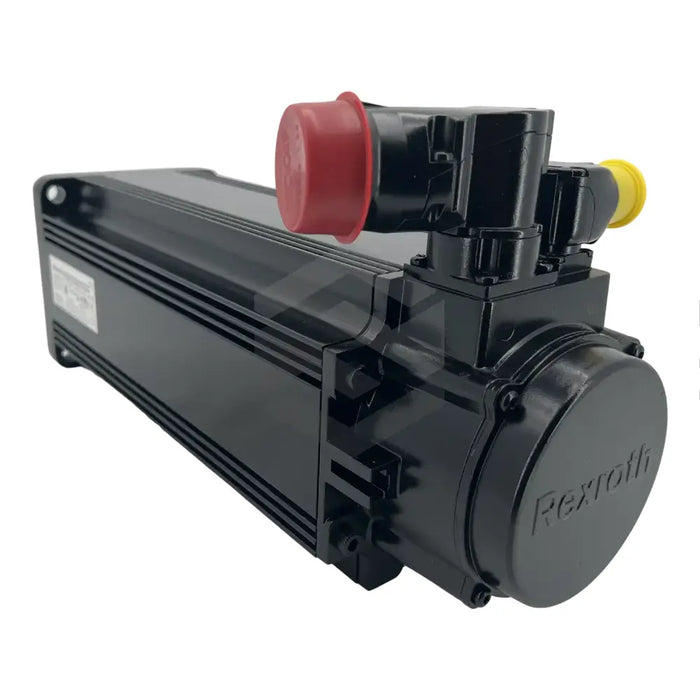

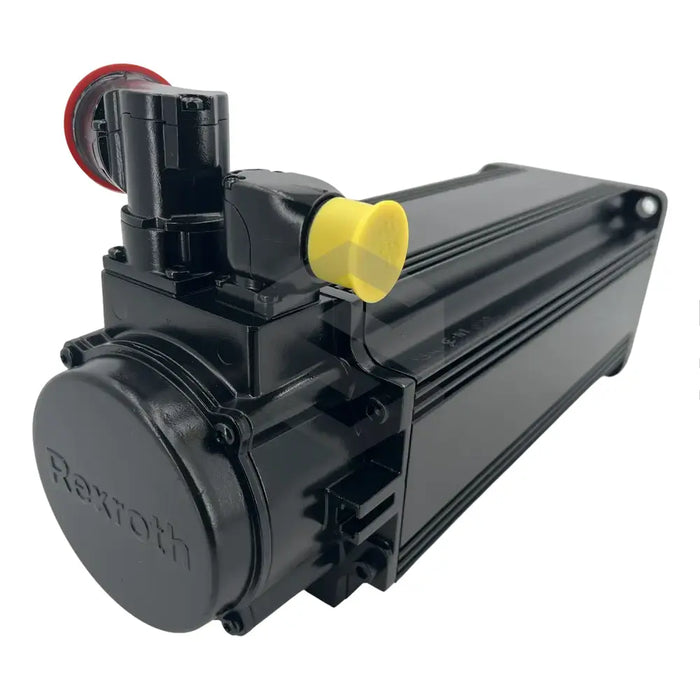

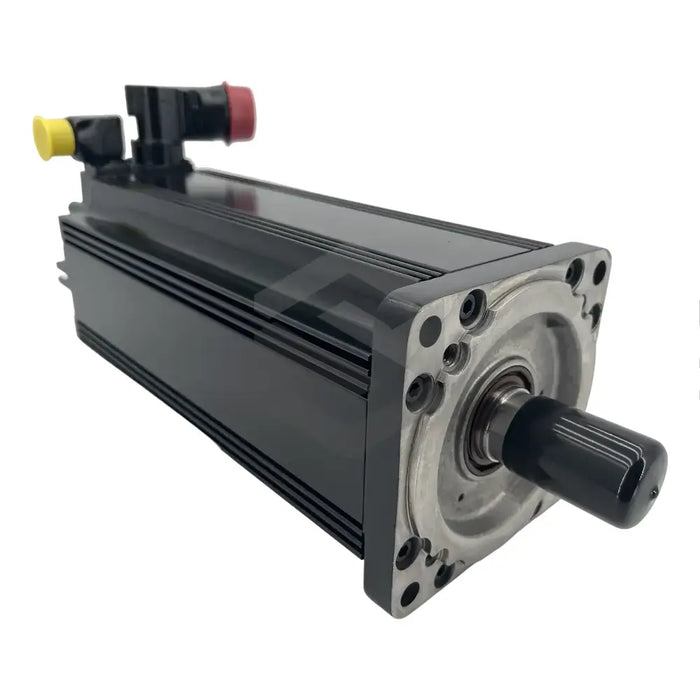

As a product of Bosch Rexroth Indramat, the MSK075E-0200-NN-M2-UG1-RNNN is a superior quality synchronous motor, boasting cost-effectiveness and high performance. The functionality of the motor is safeguarded by an internal temperature sensor and a multi-turn absolute EnDat2.1 encoder which facilitates speed and route identification. The installation and maintenance of this model should be implemented within a temperature range of -20 to +80 degrees Celsius by a qualified professional. It yields a constant torque of 31.5 Nm through surface cooling, powered by a 15.3 A current. With permanent magnets, the motor weighs 22.5 kilograms. It has a thermal time constant of 29 minutes, enhancing the effectiveness of thermal diffusion via surface cooling and ideally connected to the machine for stability and paired with the designated drive controller for optimized performance. Additionally, its holding brake has a connection and disconnection times of 130 and 180 milliseconds respectively.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MSK075E-0200-NN-M2-UG1-RNNN
  • Internal Temperature Sensor: Yes
  • Encoder: EnDat2.1 Multi-Turn Absolute
  • Operating Temperature: -20 to +80 degrees Celsius
  • Torque: 31.5 Nm
  • Current: 15.3 A
  • Weight: 22.5 kilograms
  • Inertia Moment: 0.00613 kgm2
  • Thermal Time Constant: 29 minutes
  • Shaft: Plain output with sealing ring
  • Holding Brake Weight: 1.1 kg
  • Brake Connection Time: 130 milliseconds
  • Brake Disconnection Time: 180 milliseconds
  • Operating Temperature (Brake): 0 to +40 degrees Celsius
  • Continuous Torque Output: 23 Nm at 100 K, 21 Nm at 60 K
  • Housing Protection: IP 65
  • Insulation Class: 155.
