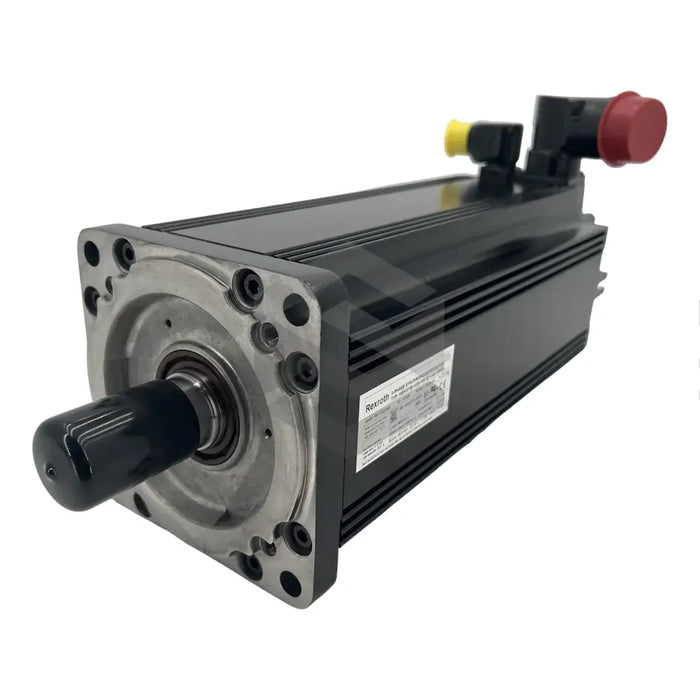

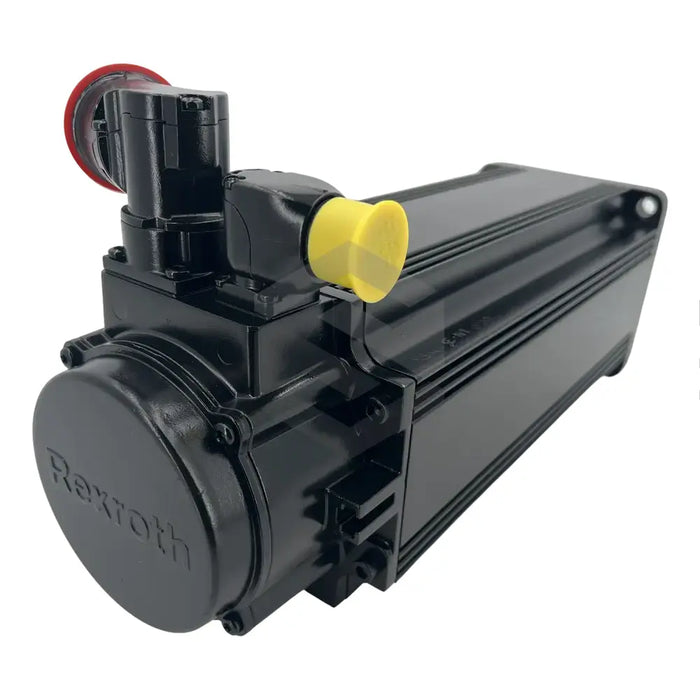

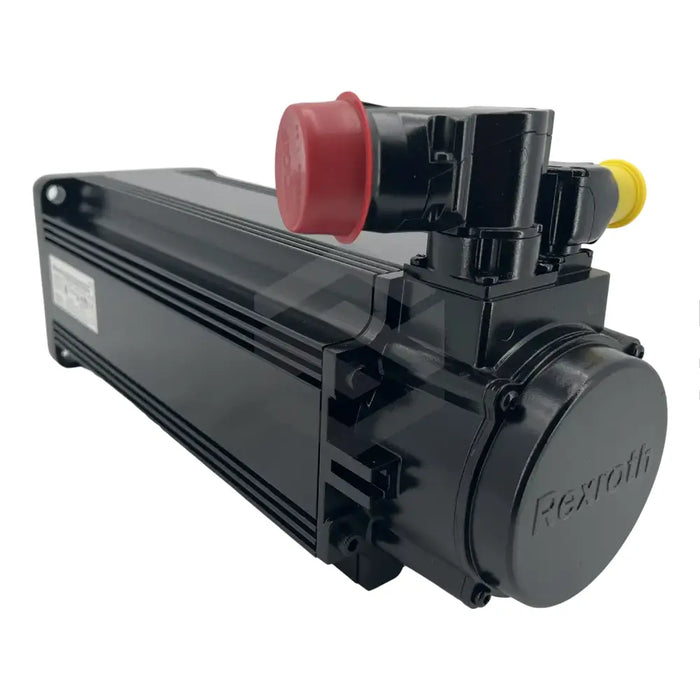

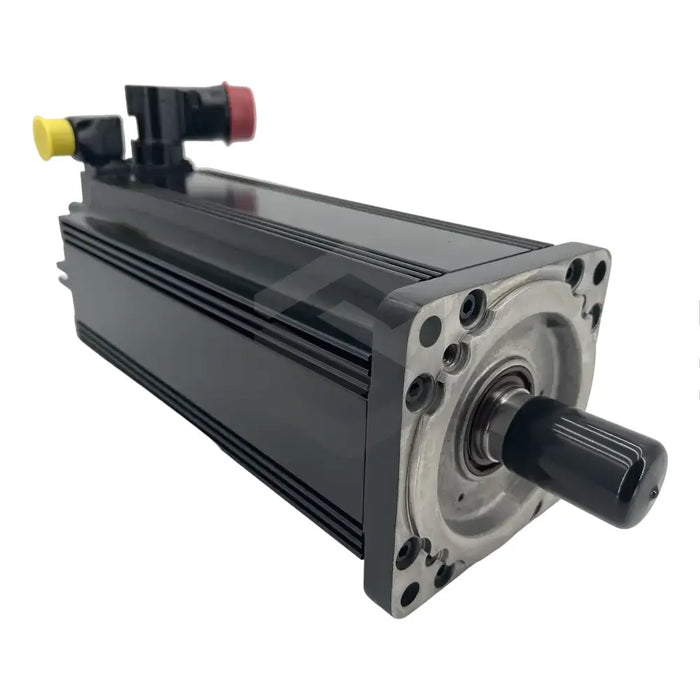

MSK075E-0200-NN-S2-UG2-RNNN

Request a quote
The MSK075E-0200-NN-S2-UG2-RNNN is a compact, high-speed synchronous servo motor developed by industry leader, Bosch Rexroth. This innovative piece of technology achieves a top speed of 3,850 RPM, and features an integrated single-turn encoder using the optical measurement method for high-precision readings. The motor's EnDat 2.1 interface enables the recording of absolute, indirect position within a single mechanical rotation. Its sealed housing, rated IP 65, prevents the penetration of dust and water, and is protected by a black epoxy resin coating, making it resistant to dilute acids, alkaline solutions, sewage, and mineral oils. The motor's plain shaft, designed to DIN 3760 – design A, helps prevent fluid penetration and ensures a zero-backlash, non-positive shaft-hub connection. Additionally, a built-in KTY84 thermal sensor safeguards against thermal overload damage, and the motor boasts a maximum torque of 88.0Nm. Ideal operating conditions place the ambient temperature at a maximum of 40°C.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: MSK synchronous servo motors
  • Model: MSK075E-0200-NN-S2-UG2-RNNN
  • Maximum Speed: 3850 revolutions per minute
  • Encoder Configuration: Single-Turn
  • Measurement Method: Optical
  • Interface: EnDat 2.1
  • Ingress Protection Rating: IP 65
  • Housing Material: 2K epoxy resin coating based on epoxy polyamide resin in water
  • Color: Black (RAL9005)
  • Resistance: Sewage, dilute acids, alkaline solutions, and current mineral oils
  • Holding Brake Torque: 30Nm
  • Thermal Sensor: KTY84
  • Shaft Type: Plain shaft with a sealing ring
  • Shaft Design Standard: DIN 3760 – design A
  • Heat Dissipation Method: Natural convection
  • Pole Pairs: 4
  • Maximum Torque: 88.0Nm
  • Required Ambient Temperature: Maximum of 40oC.
