MSK100B-0200-NN-M1-LP0-NNNN
Original price
$13,801.10
-
Original price
$13,801.10
Original price
$13,801.10
$13,801.10
-
$13,801.10
Current price
$13,801.10

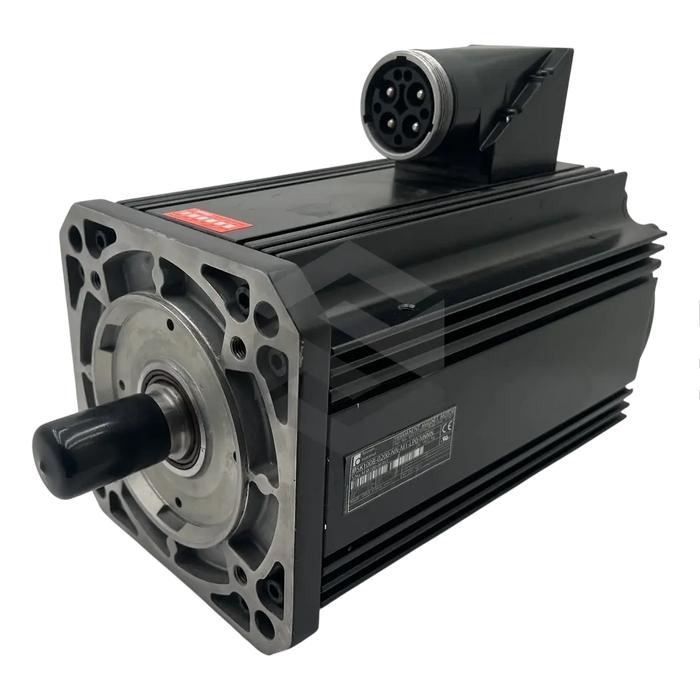

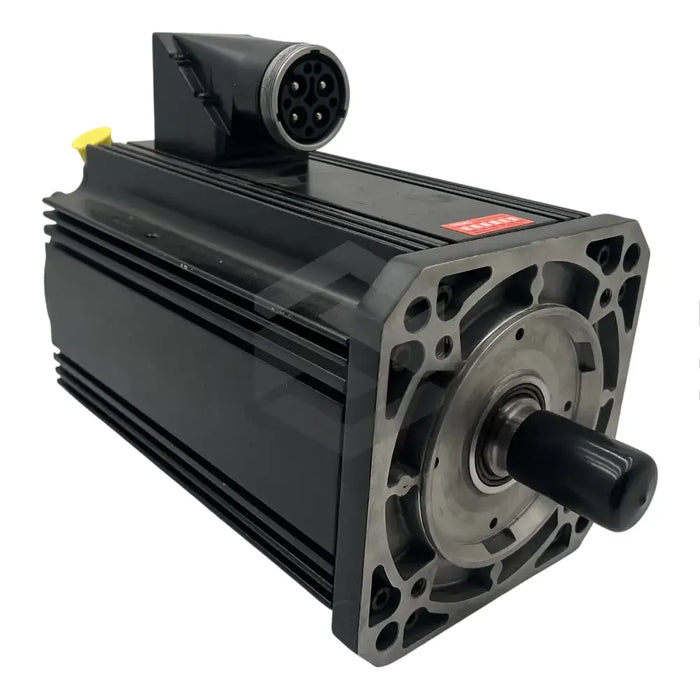

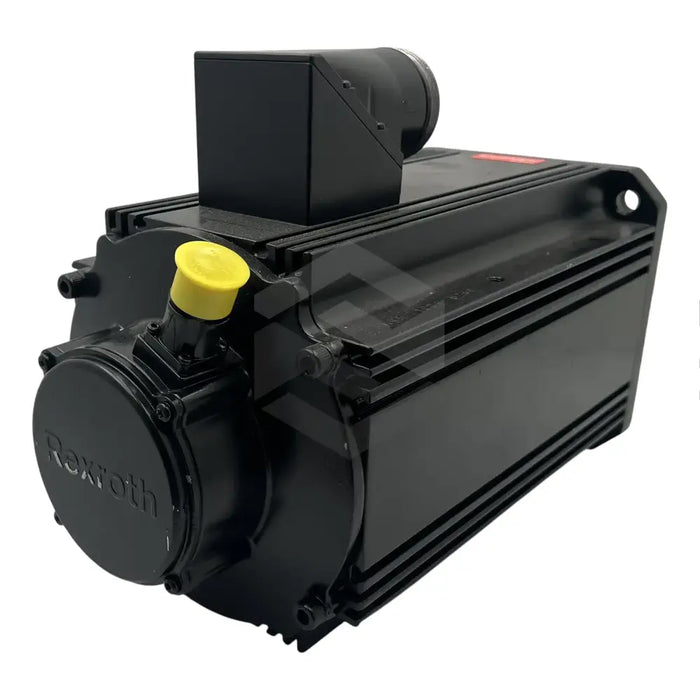

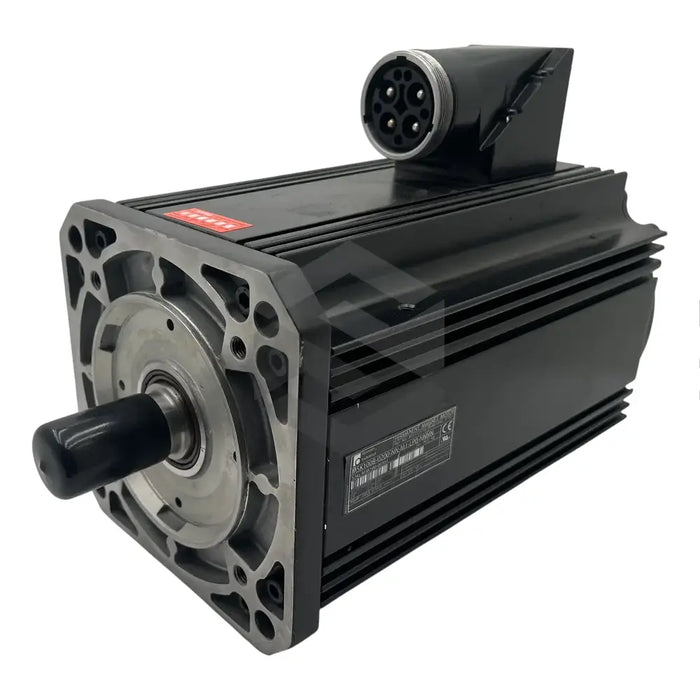

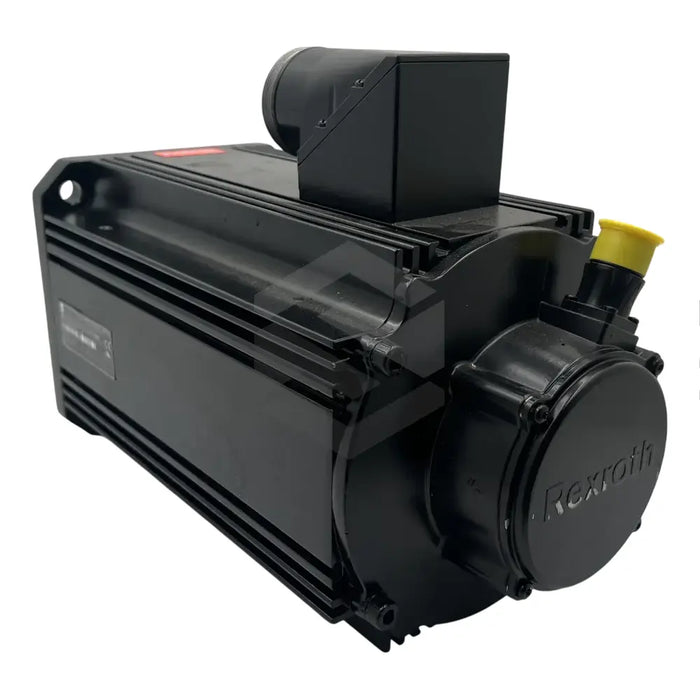

The MSK100B-0200-NN-M1-LP0-NNNN, manufactured by industry leading Bosch Rexroth Indramat, is a high-quality synchronous motor. The model encompasses an output shaft with keyways and a sealing ring, capable of reaching 4100 RPM with a maximum torque of 102 Nm, and operating with a winding inductance of 7,600 mH. The motor features an electrical connection on the left side and is recommended for use in 3K4 weather conditions within a temperature range of 0 to 40 degrees Celsius. Weighing 34 kg, the motor is securely attached and should be operated by a qualified technician. The device also includes a 40-micron black paint coat and IP65 dust and water resistance. The unit, with a thermal time constant of 40 minutes and transportable between -20 and +80 degrees Celsius, provides 33 Nm of torque while consuming 17.3 A of current. This model features a multi-turn hiperface optical feedback encoder, a sound pressure level of 75 decibels, four polar pairs, 0.58 ohms of winding resistance, and voltage and torque constants of 129.5 V/min-1 and 2.10 Nm/A respectively.
30 Day Warranty
Technical Specifications
