MSK100B-0300-NN-S2-AG0-RNNN

Request a quote

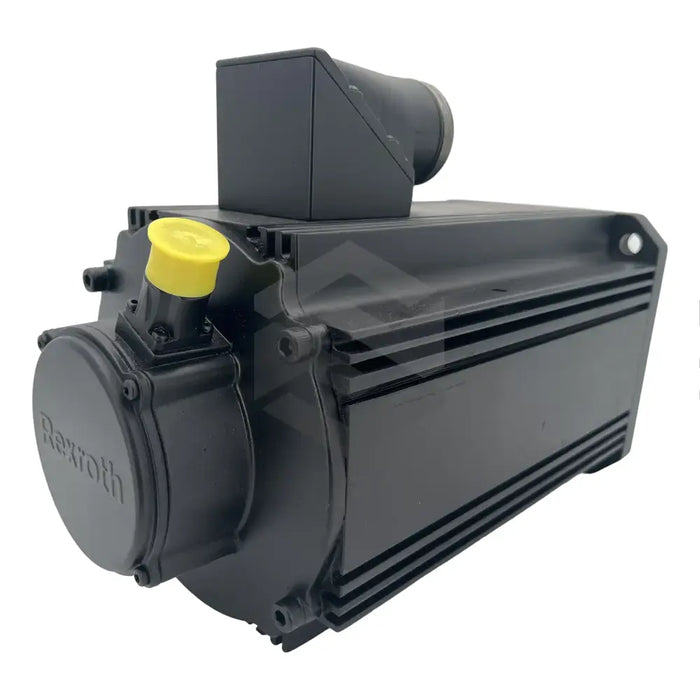

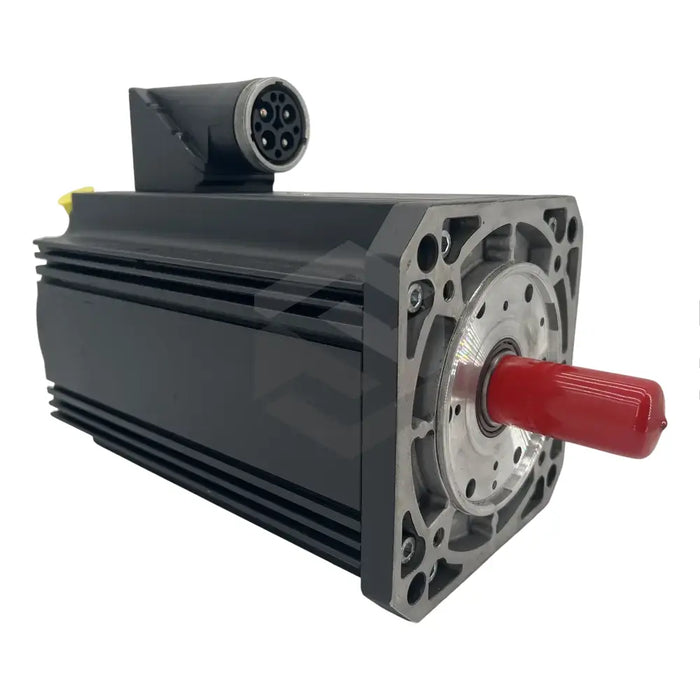

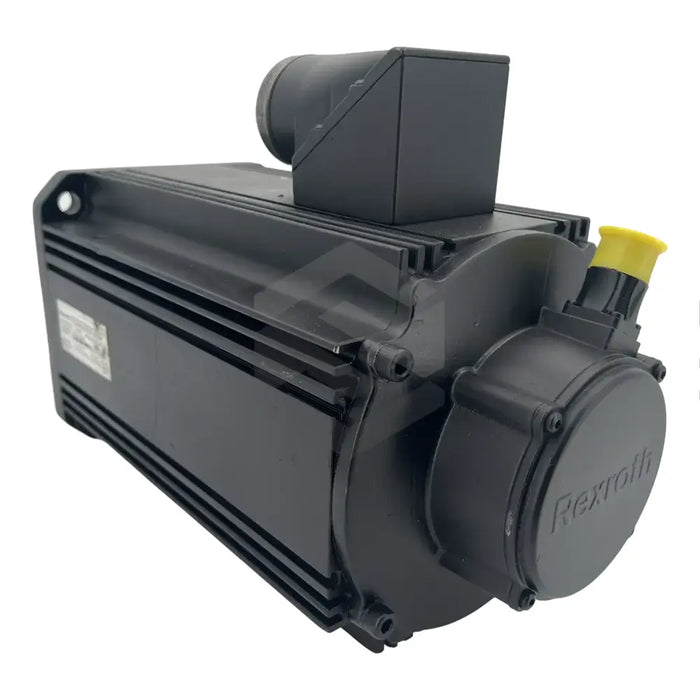

Produced by Bosch Rexroth Indramat, the MSK100B-0300-NN-S2-AG0-RNNN is a synchronous servo motor from the MSK product line, featuring a frame size of 100, length B, and a winding code of 0300. At a length of 378mm and a centering diameter of 130mm, the servo motor includes a 32mm diameter smooth shaft, of which 60mm is exposed outside the motor housing. Secure motor mounting is ensured with four 15mm diameter holes, requiring four M10 screws. Thanks to its IP65 protection rating, the motor operates effectively in harsh environments. The motor outputs 28Nm torque with natural cooling and 42 Nm with surface cooling and has a sealed housing. Fitted with a single-turn optical encoder with an EnDat 2.1 interface and rated for 2048 signal periods, the motor also includes a smooth, sealing-ring shaft to protect its bearings. Note, periodic inspection and replacement of the ring is necessary. The motor connects electrically on side A.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Servo Motor
  • Part of product line: MSK
  • Frame Size: 100
  • Frame Length: B
  • Winding Code: 0300
  • Motor Length: 378 millimeters
  • Centering Diameter: 130 millimeters
  • Shaft Type: Smooth
  • Shaft Diameter: 32 millimeters
  • Shaft Length: 60 millimeters
  • Mounting hole diameter: 15 millimeters
  • Number of Mounting Holes: 4
  • Required Screws: M10
  • Motor Flange Size: 165 millimeters
  • Cooling Methods: Natural Convection, Surface cooling
  • Torque Output in Natural Convection: 28 Nm
  • Torque Output in Surface Cooling: 42 Nm
  • Current Output in Natural Convection: 17.4 Amps
  • Current Output in Surface Cooling: O26.1 Amps
  • Weight: 34 kilograms
  • Housing Protection Rating: IP65
  • Housing Color: Black
  • Encoder Type: Singleturn Optical Encoder with EnDat 2.1 interface, rated for 2048 signal periods
  • Shaft Sealing: Present
  • Electrical Connection: On Side A.
