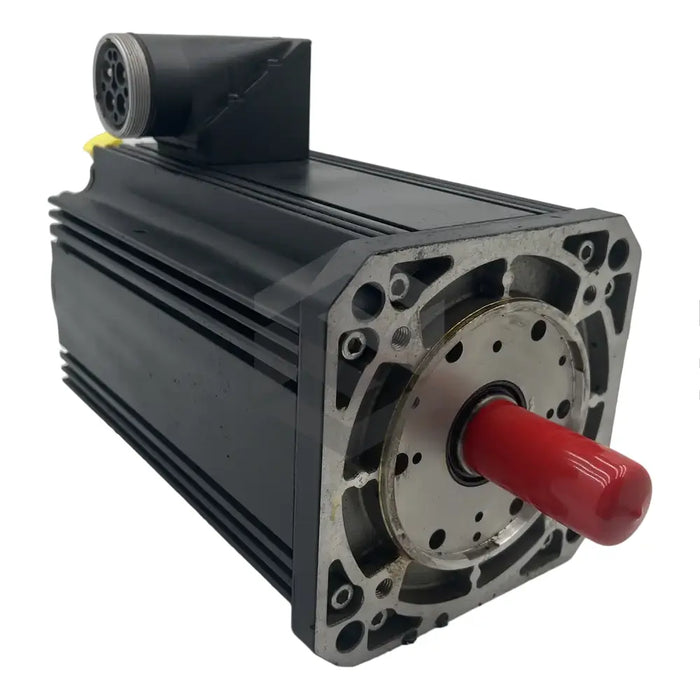

C image of MSK100B-0300-NN-S2-BG1-RNNN | Front Right

MSK100B-0300-NN-S2-BG1-RNNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat MSK100B-0300-NN-S2-BG1-RNNN is a tailored, synchronous servo motor from the MSK product line. It features a concentric housing with increased run out, sealed to comply with IP65 protection category, ensuring dust and water resistance. The motor is also equipped with an electrically-releasing holding brake with a torque rating of 32 Nm and a rating of 0.93 Amps and 24 Volts DC. Its precision capabilities come from its optical singleturn encoder rated for 2048 signal periods with an accuracy of ±20 angular seconds and a maximum encoder speed of 15000 RPM. The motor is primarily convection cooled but is compatible with additional cooling units for increased performance. Protection against wear and tear is provided by a deteriorating seal on the smooth shaft, necessitating periodic replacement. The power socket is placed on side B of the housing.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MSK100B-0300-NN-S2-BG1-RNNN

Product Type

Servo Motor

Product Line

MSK

Optional Feature Compatibility

Yes

Housing Design

Increased concentricity and run out, sealed

Ingress Protection

IP65

Brake Type

Electrically-releasing holding brake

Brake Torque Rating

32 Nm

Brake Current Rating

0.93 Amps

Brake Voltage Rating

24 Volts DC

Encoder Type

Optical singleturn encoder

Encoder Signal Periods

2048

Encoder Accuracy

±20 angular seconds

Maximum Encoder Speed

15000 RPM

Maximum Encoder Current Consumption

150 milliamps

Encoder Supply Voltage Range

3.6 to 14 Volts DC

Cooling Method

Convection cooled, surface cooling optional

Shaft Type

Smooth shaft with seal

Motor Power Socket

Located on side B of the housing
