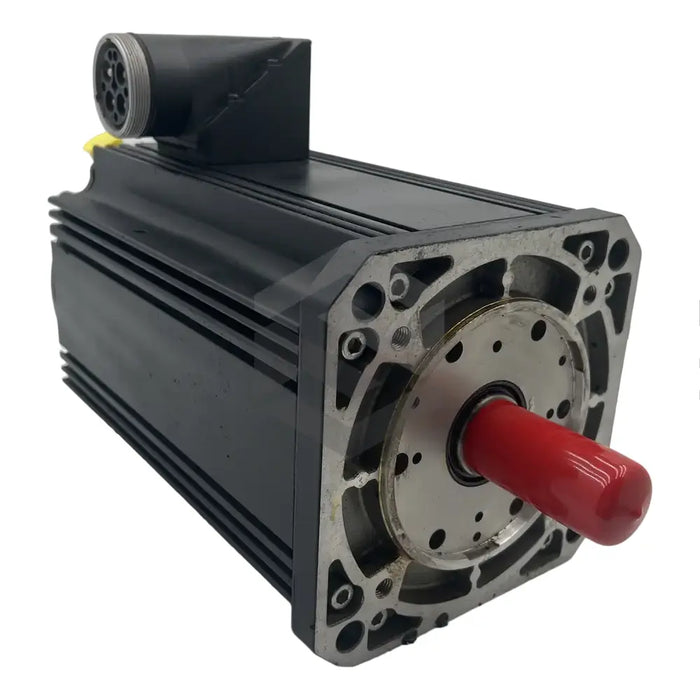

C image of MSK100B-0400-NN-M2-BG1-RNNN | Front Right

MSK100B-0400-NN-M2-BG1-RNNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat MSK100B-0400-NN-M2-BG1-RNNN is a servo motor featuring an integrated optical multiturn encoder with an EnDat 2.1 interface, renowned for maintaining the axis's absolute position even post shutdown. Furnished with an integrated holding brake with 32 Nm torque, a voltage rating of 24 Volts DC, and a moment of inertia of 0.001242 kg m2, its housing complies with IP65 standards, ensuring enhanced concentricity and run-out. Its surface is cloaked in a primary black coat, which permits an additional protective layer. With a weight of 36.5 kg, this motor runs at a speed of 4500 RPM, has a thermal class of 155 per EN 60034-1, generates sound pressure less than 75 dB, and boasts a thermal time constant of 40 minutes. Also featuring a smooth main output shaft, the motor requires expert installation and inspection upon delivery. No firmware or hardware adjustments should be made.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Motor

Model

MSK100B-0400-NN-M2-BG1-RNNN

Encoder Type

Optical Multiturn Encoder

Encoder Interface

EnDat 2.1

Distinguishable Revolutions

4096

Signal Periods

2048

Integrated Feature

Holding Brake

Brake Holding Torque

32 Nm

Brake Voltage Rating

24 Volts DC

Brake Current Rating

1.29 Amps

Brake Connection Time

15 milliseconds

Brake Disconnection Time

115 milliseconds

Brake Moment of Inertia

0.001242 kg m2

Motor Housing

IP65 Rated

Housing Surface

Prime black coat

Motors Weight Including Brake

36.5 kilograms

Speed Rating

4500 RPM

Thermal Class

155 according to EN 60034-1

Sound Pressure

Not Exceed 75 dB

Thermal Time Constant

40 minutes

Power Cable Connection

Side B of the housing

Output Shaft

Smooth main output with a sealing ring

Installation

By trained personnel

Hardware Status

No Modifiable

Product Condition

Inspect at the time of delivery

Damaged Product Usage

Should not be installed or operated.
