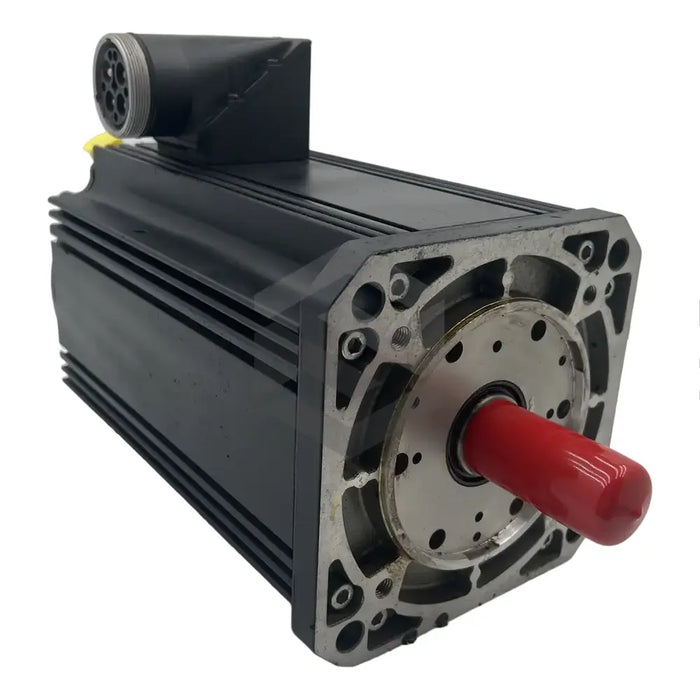

C image of MSK100B-0400-NN-S2-BG1-RNNN | Front Right

MSK100B-0400-NN-S2-BG1-RNNN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

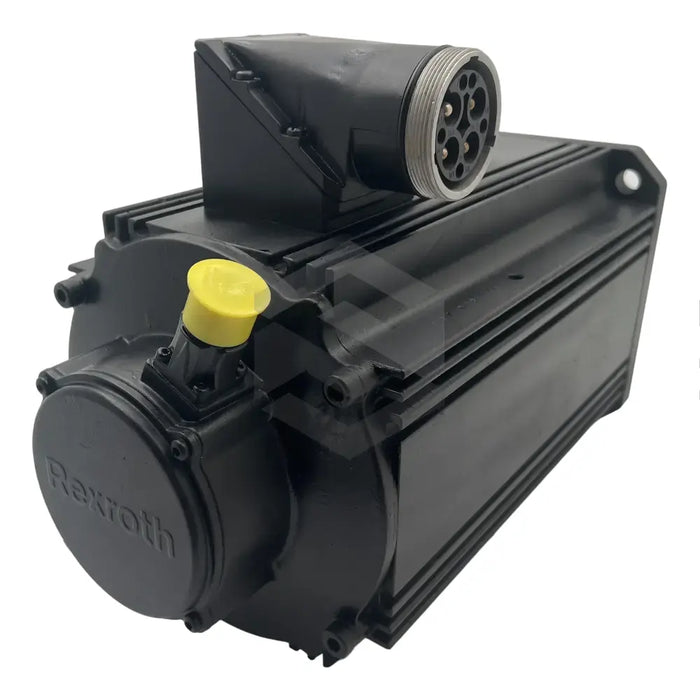

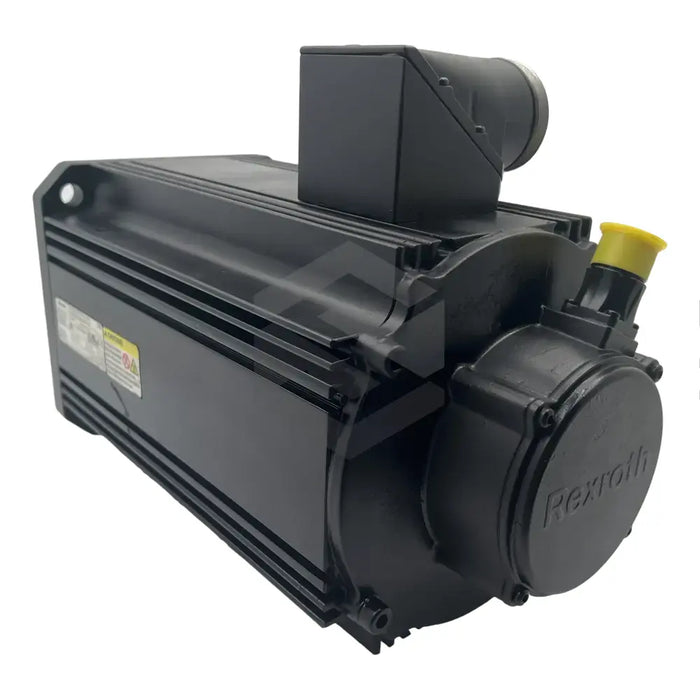

The Bosch Rexroth Indramat MSK100B-0400-NN-S2-BG1-RNNN is a synchronous servomotor specifically designed to work only with Bosch Rexroth's drive controllers. Sized with code 100, this versatile, CSA Certified, and UL Listed unit boasts a radial shaft sealing ring on its output shaft and supports S1 and S3 operating modes. After power disruptions, the motor axis must be reset to the home position. Equipped with a 24VDC, 0.93A brake, the motor adheres to EN600334-7 specifications for the B5 frame size. Its installation and operation allow natural convection cooling up to maximum elevations of 3000m. The motor, certified as the Class 3K4 climatic category, has IP 65 protection for both its housing and output shaft, with the housing unchangeable with any additional varnish. This unit is internationally shipped, ready to be connected via circular connectors, only in their de-energized state.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MSK100B-0400-NN-S2-BG1-RNNN

Compatibility

Only with Bosch Rexroth drive controllers

Temperature Fluctuation

Yes, Possible unavoidable

Size Code

100

Certification

CSA Certified, UL Listed

Special Feature

Radial shaft sealing ring on output shaft

Operating Modes

S1, S3

Required Action After Power Failure

Move motor axis to home position

Frame Size

B5 (as per EN600334-7 specifications)

Holding Brake Voltage Rating

24VDC

Holding Brake Current Rating

0.93A

Shaft Centering Hole

DS M10 (as per DIN 332, Part 2 specifications)

Cooling Method

Natural Convection

Protection Level

IP 65 (For both output shaft and housing)

Gearbox Requirement

Must correspond to Ex-protection demands as per EG 94/9 directives

Connection Type

Circular Connectors

Installation Elevation Limit

3000m over sea level

Climatic Category

Class 3K4 during operation

Vibration

Sine-Wave Oscillations in stationary mode

Coating

No Additional varnish on housing allowed

Dispatch Availability

Worldwide.
