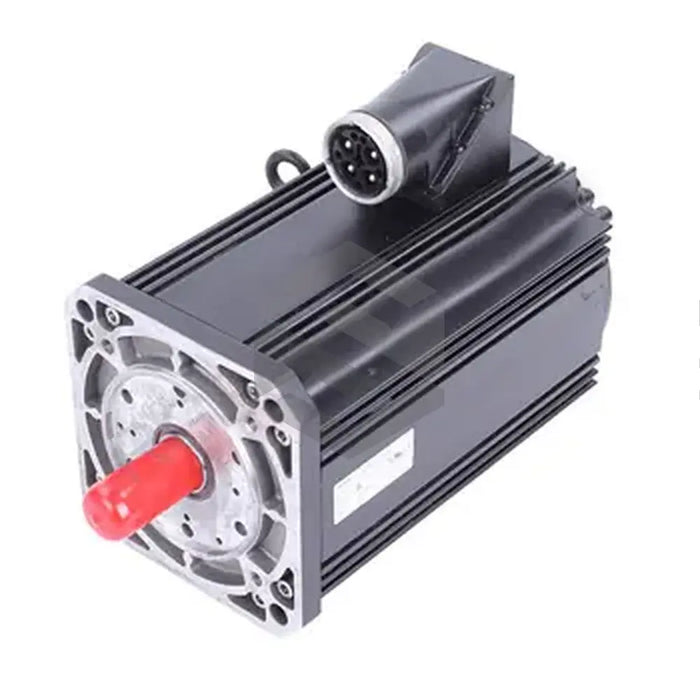

series image of MSK100B-0450-NN-M2-BG0-RNNN

MSK100B-0450-NN-M2-BG0-RNNN

by Bosch Rexroth Indramat
$4,819.99 - $4,819.99
$4,819.99
$4,819.99 - $4,819.99
$4,819.99
Available, Shipping Varies
The MSK100B-0450-NN-M2-BG0-RNNN is an advanced servo motor, manufactured by Bosch Rexroth Indramat, widely used in activities such as food processing, robotics, and metal-forming machines. With various options available for customization, it includes features like a variety of encoders, output shafts, and cooling options. This particular model has a design for enhanced concentricity and run-out, an optical multiturn encoder with an EnDat 2.1 interface, and rates for 2048 signal periods. Naturally cooled, it provides an output torque of 28 Nm and current of 28.5 Amps. These capacities increase to 42 Nm and 42.8 Amps with surface cooling. It functions at a maximum speed of 4500 RPM and possesses a plain shaft with a shaft seal, although a holding brake can be included upon request. Any assembly should be carried out by qualified personnel to avoid installation errors.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Model: MSK100B-0450-NN-M2-BG0-RNNN
  • Main Uses: Food-processing machines, robotics, metal-forming machines
  • Housing Design: Increased concentricity and run-out
  • Features: N/A
  • Encoder Type: Optical multiturn encoder with EnDat 2.1 interface
  • Signal Periods: 2048
  • Cooling Method: Natural convection
  • Output Torque (Natural Convection): 28 Nm
  • Output Torque (Surface Cooling): 42 Nm
  • Output Current ( Natural Convection): 28.5 Amps
  • Output Current (Surface Cooling): 42.8 Amps
  • Leakage Capacitance: 10.3 nanofarads
  • Shaft Type: Plain
  • Shaft Seal: Available
  • Rotor Moment of Inertia: 0.01920 kg m2
  • Maximum Speed: 4500 RPM
  • Holding Brake: Not available
  • Power Source: Drive controller
  • Installation: Qualified personnel recommended.
