series image of MSK100C-0200-NN-M1-BP2-NNNN

MSK100C-0200-NN-M1-BP2-NNNN

by Bosch Rexroth Indramat
$17,039.30 - $17,039.30
$17,039.30
$17,039.30 - $17,039.30
$17,039.30
In Stock, Ships 3 - 5 Days

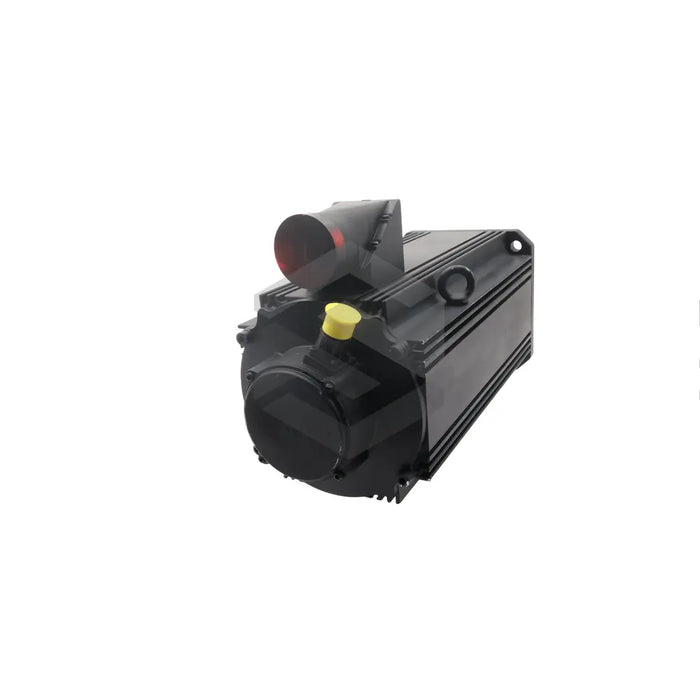

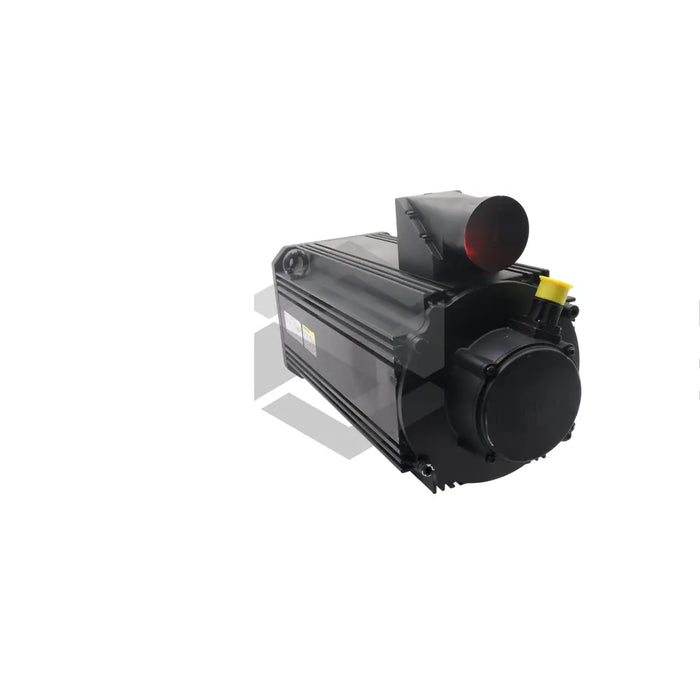

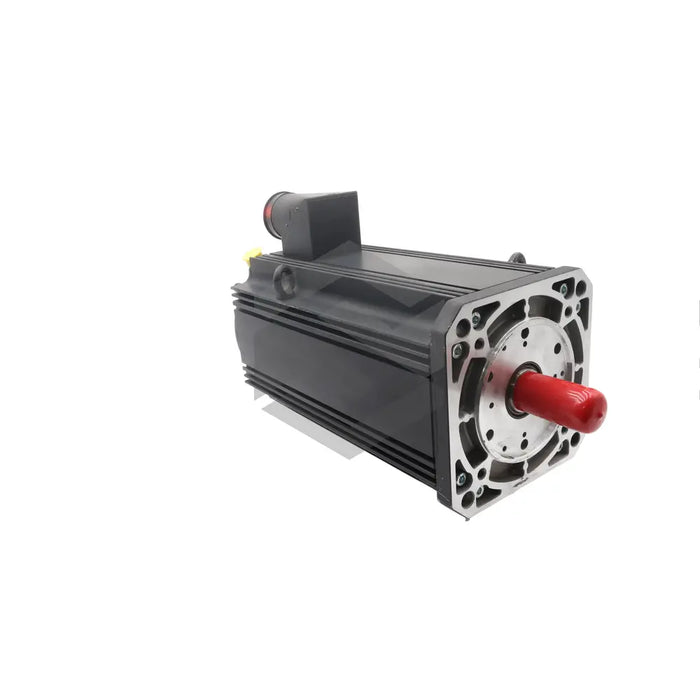

The MSK100C-0200-NN-M1-BP2-NNNN is a synchronous motor manufactured by Bosch Rexroth Indramat, designed to meet an array of industrial requirements. The motor boasts a thermal time constant of 90 minutes, inductance of 6.700 mH, operates at a speedy 3500 RPM, and has a winding resistance of 0.46 ohms. The motor's housing holds an IP65 rating, offering dust and water resistance. A multi-turn hiperface optical encoder records rotor positions, and the motor's 4.9 kg holding brake connects and disengages swiftly. Operating at temperatures from 0 to 40 degrees Celsius, the device delivers a constant torque of 38 Nm at a 60 K temperature and 43.5 Nm at 100 K, consuming 17.7 A and 20.3 A of constant current respectively. The output shaft with keyways, sealed from lubricants, helps maintain motor overpressure. Used widely in packaging machines and other industrial machinery, this motor is compact yet potent with a torque output of 148 Nm.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MSK100C-0200-NN-M1-BP2-NNNN
  • Thermal Time Constant: 90 minutes
  • Inductance: 6.700 mH
  • Housing Protection Rating: IP65
  • Maximum Revolution: 3500 rpm
  • Holding Brake Weight: 4.9 kg
  • Connection Time: 53 milliseconds
  • Disengagement Time: 97 milliseconds
  • Encoder Type: Multiple-turn hiperface optical encoder
  • Winding Resistance: 0.46 ohms
  • Motor Weight: 45.1 kg
  • Constant Torque: 38 Nm at 60 K
  • Constant Current: 17.7 A
  • Shaft Type: With keyway and sealing ring
  • Maximum Torque: 148 Nm
  • Operating Temperature Range: 0 to 40 degrees Celsius
  • Insulation Level: 155
  • Torque Constant: 2.37 Nm/A
  • Rotor Moment Inertia: 0.02730 kgm2
  • Overpressure Prevention: Sealing ring
  • Application: Packing machines, machine tools, food processing machinery
  • Test Requirement: Comprehensive pre-sale testing
  • Torque at 100K: 43.5Nm
  • Current at 100K: 20.3A
