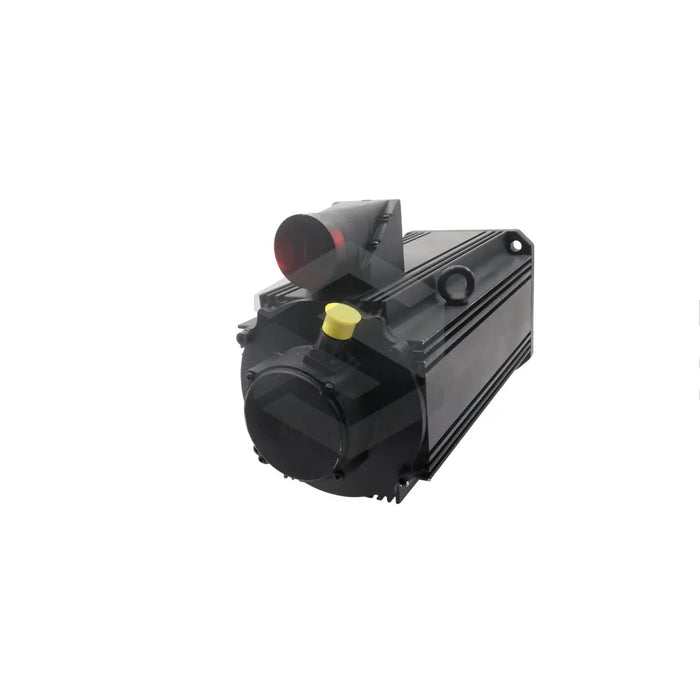

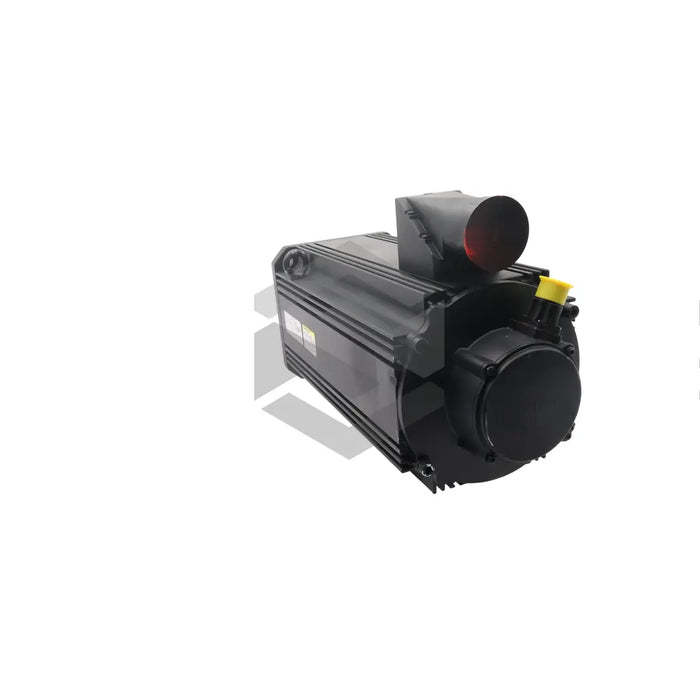

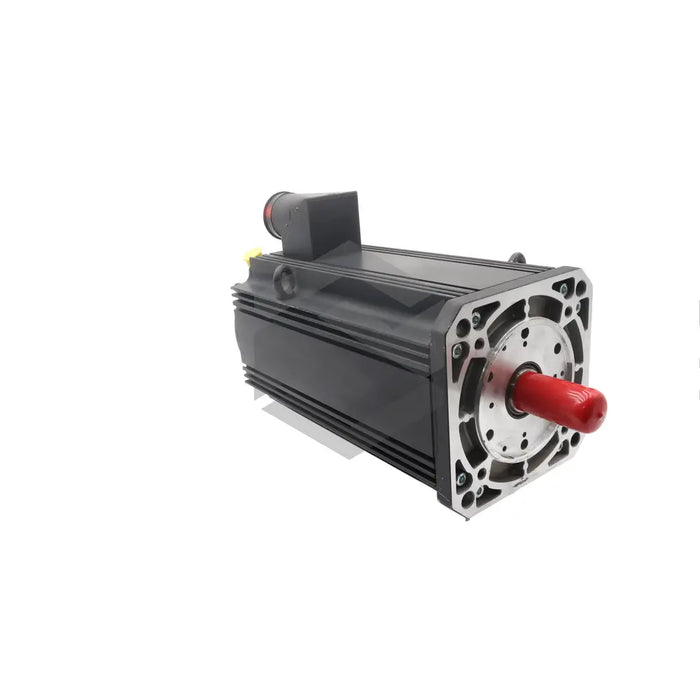

series image of MSK100C-0200-NN-M2-BP0-RNNN

MSK100C-0200-NN-M2-BP0-RNNN

by Bosch Rexroth Indramat
$0
$8,400.00 - $8,400.00
$8,400.00
$8,400.00 - $8,400.00
$8,400.00
Available, Shipping Varies
 More payment options
The MSK100C-0200-NN-M2-BP0-RNNN, a product from Bosch Rexroth Indramat, is a premium synchronous motor. It belongs to the IndraDyn S servomotor family, widely used in automated applications. The model generates torque of 38 Nm at 60 K, increasing to 43.5 Nm at 100 K. Featuring an EnDat2.1 optical encoder for position tracking, it offers a thermal time constant of 90 minutes and relies on natural convection for heat dissipation. Key features include a keyway shaft, a sealing ring for maintaining a tight seal, and an inertia moment of 0.02730 kg m2. This motor performs best between temperatures of 0 - 40 degrees Celsius. The MSK100C-0200-NN-M2-BP0-RNNN also features a maximum speed of 3,500 RPM and an insulation class of 155, indicating its robust dust and liquid resistance. With a built-in temperature sensor, it ensures operational continuity by preventing overheating.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Motors
  • Model: MSK100C-0200-NN-M2-BP0-RNNN
  • Torque at 60K: 38 Nm
  • Torque at 100K: 43.5 Nm
  • Encoder Type: EnDat2.1 Optical Encoder
  • Thermal Time Constant: 90 Minutes
  • Heat Transfer: Natural Convection
  • Shaft Type: With Keyways
  • Inertia Moment: 0.02730 kgm2
  • Operating Temperature Range: 0 to 40 degrees Celsius
  • Max Torque: 148Nm
  • Continuous Torque Rating: 57Nm
  • Voltage Constant: 145.5 V/1000min-1
  • Torque Constant: 2.37 Nm/A
  • Product Weight: 45.1Kg
  • Product Family: IndraDyn S servomotor
  • Inductance: 6.700 mH
  • Max Rotational Speed: 3500 RPM
  • Power Connector Position: B side
  • Insulation Class: 155
  • Protection Rating: IP65.
