MSK100C-0300-NN-M2-AP2-RNNN

Original price $11,608.80 - Original price $11,608.80
Original price
$11,608.80
$11,608.80 - $11,608.80
Current price $11,608.80
Available, Shipping Varies
Request a quote

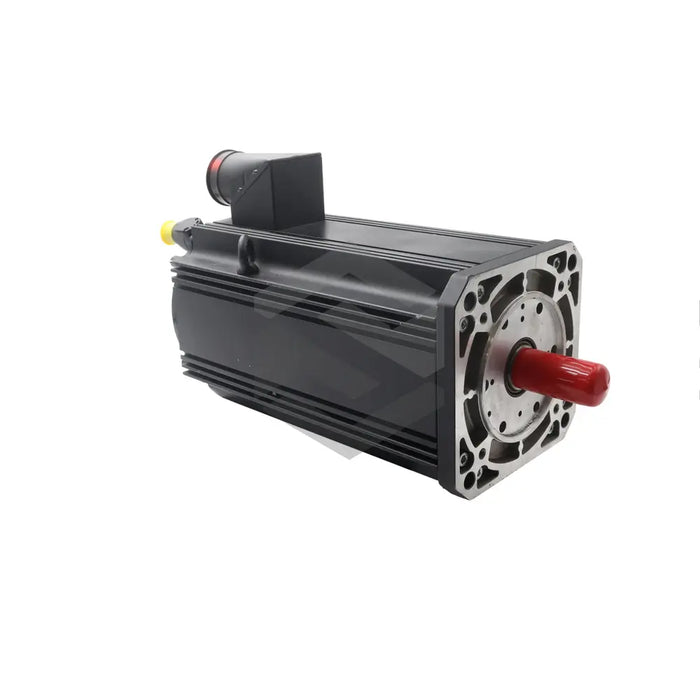

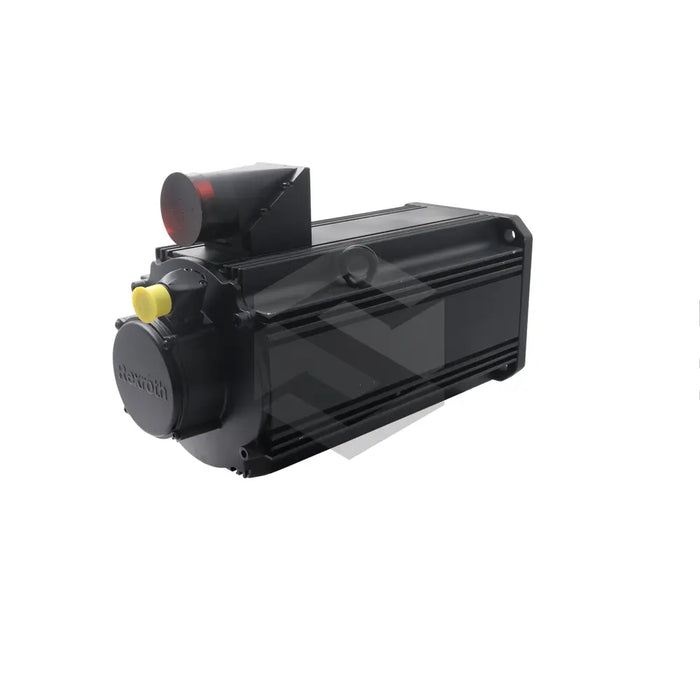

The Bosch Rexroth Indramat MSK100C-0300-NN-M2-AP2-RNNN is a flange-mounted digital servo motor featuring a 70 Nm rated brake with an electrical release mechanism that initiates shaft rotation when a 24 Volts DC signal is applied. Weighing 48.9 kg, the motor and brake unit have an IP65 protection class rating and a EN 60034-1 thermal class rating of 155. The motor dimensions include a 165mm flange size, a centering diameter of 180mm, and an overall length of approximately 359mm. The motor shaft, 38mm in diameter, employs a seal to prevent oil leakage and protect bearings. With a power socket on the A-side of the housing presenting four position options, this motor utilizes either a multiturn or singleturn encoder, rated for 2048 signal periods. Its housing is designed for better concentricity and run-out and provides two cooling options: natural convection and surface cooling. The latter yields higher continuous torque and current output, making it optimal for higher load requirements. The thermal time constant of the motor is 90 minutes, with a maximum speed of 4500 RPM and a sound pressure level not exceeding 75 dB.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Servo Motor
  • Rated Holding Brake: 70 Nm
  • Combined Weight: 48.9 kilograms
  • Brake Functioning: Electrical Release Principle
  • Protection Class: IP65
  • Thermal Class: 155 (EN 60034-1)
  • Mounting Type: Flange
  • Flange Size: 165 millimeters
  • Motor Length: 359 millimeters
  • Centering Diameter: 180 millimeters
  • Shaft: Keyway with a seal
  • Shaft Diameter: 38 millimeters
  • Power Source: Servo Controller
  • Power Socket Location: Side A of motor housing
  • Encoder Type: Multiturn Encoder (2048 signal periods)
  • Housing Design: Increased concentricity and run-out
  • Cooling Methods: Natural Convection/Surface Cooling
  • Thermal Time Constant: 90 minutes
  • Maximum Speed: 4500 RPM
  • Sound Pressure Level: Does not exceed 75 dB
